ASROCK Fatal1ty B360M Performance User Manual

9
English
Fatal1ty B360M Performance Series

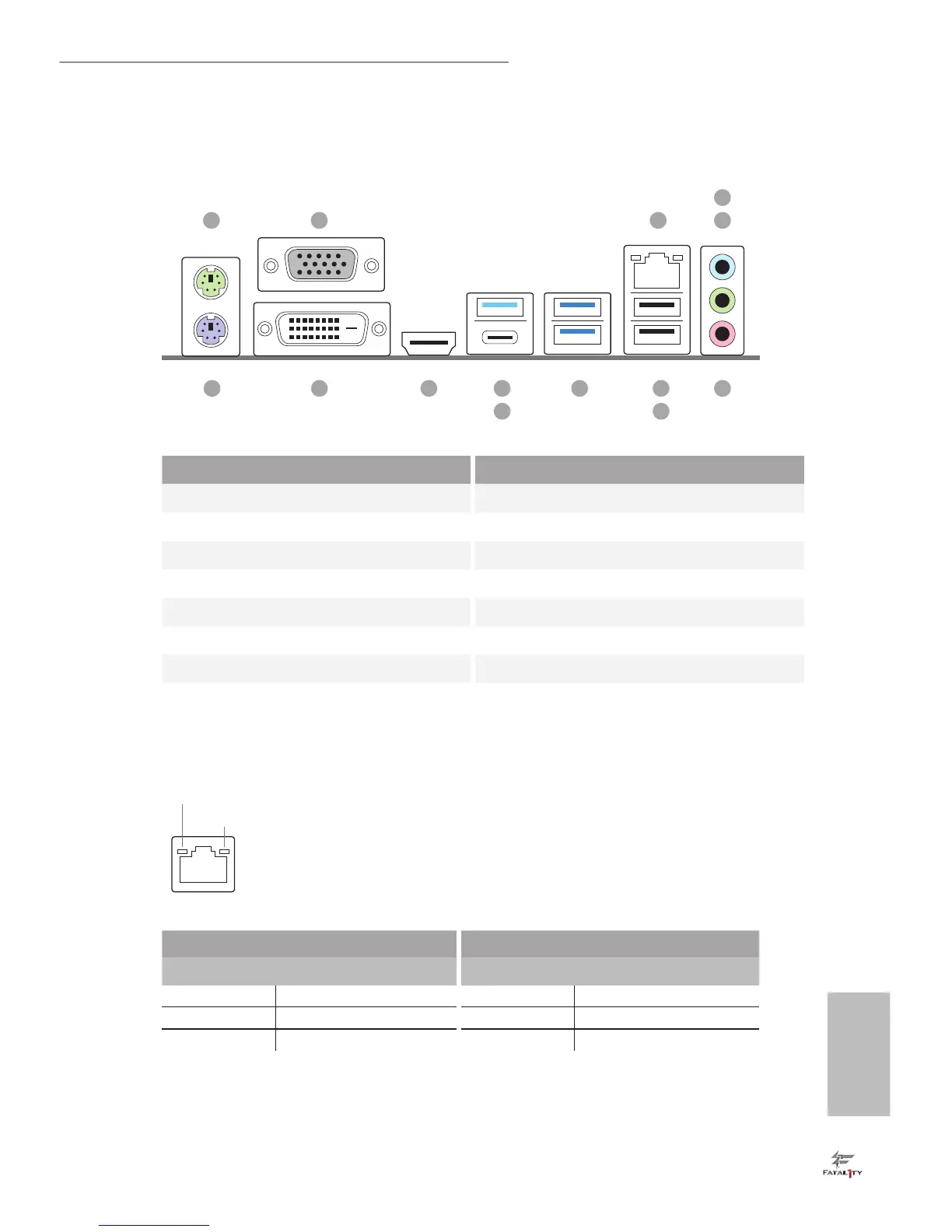

1.4 I/O Panel
No. Description No. Description
1 PS/2 Mouse Port 8 USB 2.0 Port (USB2)
2 D-Sub Port 9 USB 3.1 Gen1 Ports (USB3_3_4)
3 LAN RJ-45 Port* 10 USB 3.1 Gen2 Type-A Port (USB3_TA_1)
4 Line In (Light Blue)** 11 USB 3.1 Gen2 Type-C Port (USB3_TC_1)
5 Front Speaker (Lime)** 12 HDMI Port
6 Microphone (Pink)** 13 DVI-D Port
7 Fatal1ty Mouse Port (USB1) 14 PS/2 Keyboard Port
* ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
14 6712
13
5
4
1 3
9
2
11
10
8

ASROCK Fatal1ty B360M Performance Specifications

General

Form Factor	Micro ATX
Chipset	Intel B360
CPU Socket	LGA 1151
Maximum Memory	64 GB
Audio	Realtek ALC892 Audio Codec
Memory Slots	4 x DIMM
Memory Speed	DDR4 2666/2400/2133 MHz
Storage Interface	6 x SATA3
USB Ports	6 x USB 3.1 Gen1, 6 x USB 2.0
LAN	Intel Gigabit LAN
Video Outputs	HDMI, DisplayPort
Expansion Slots	1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
