31
English
Fatal1ty B360M Performance Series

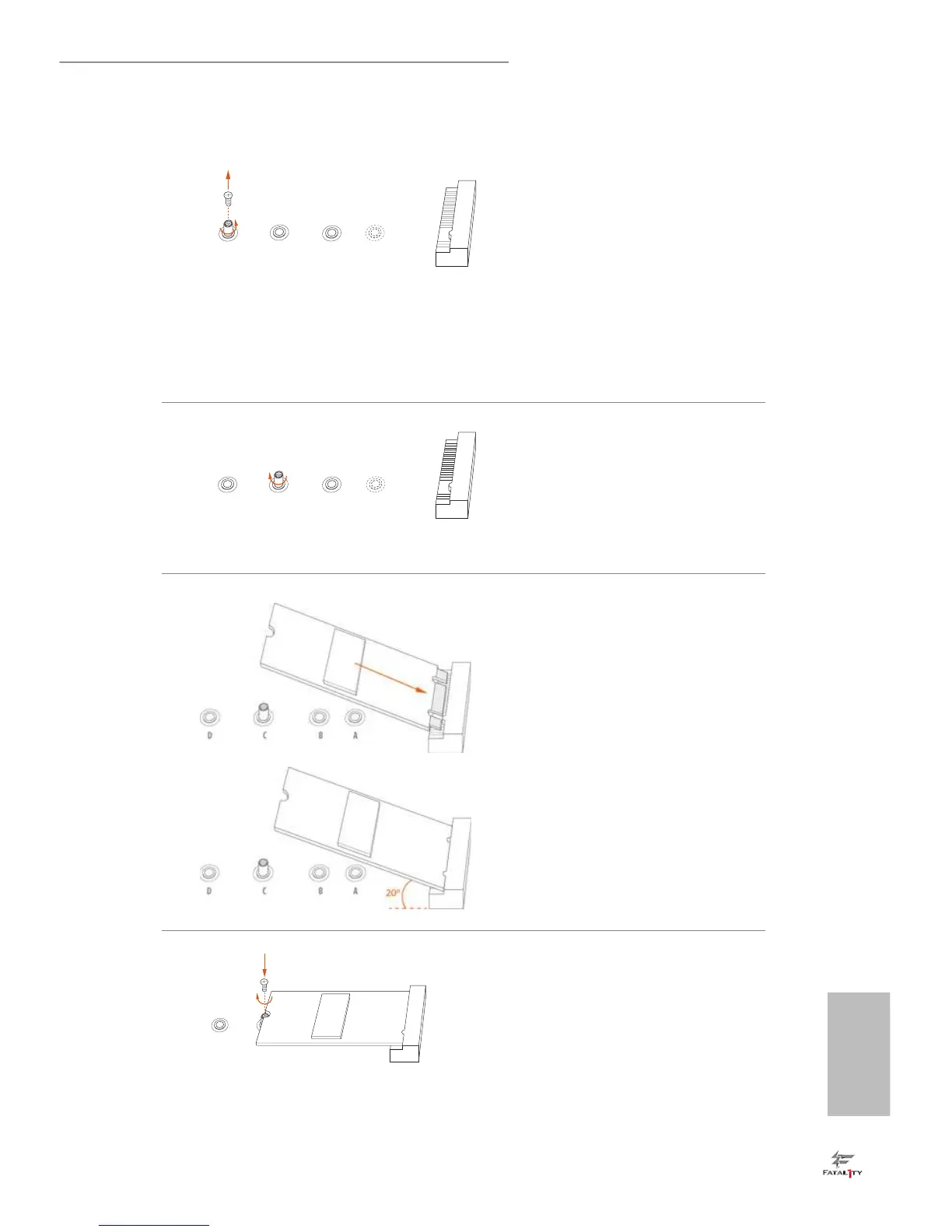

Step 3
Move the stando based on the
module type and length.
e stando is placed at the nut
location D by default. Skip Step 3 and
4 and go straight to Step 5 if you are
going to use the default nut.
Otherwise, release the stando by
hand.
BCD
E
A
Step 4
Peel o the yellow protective lm on
the nut to be used. Hand tighten the
stando into the desired nut location
on the motherboard.
Step 5
Gently insert the M.2 (NGFF) SSD
module into the M.2 slot. Please
be aware that the M.2 (NGFF) SSD
module only ts in one orientation.
NUT1NUT2D
Step 6
Tighten the screw with a screwdriver
to secure the module into place.
Please do not overtighten the screw as
this might damage the module.
BCD
E
A

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the ASROCK Fatal1ty B360M Performance and is the answer not in the manual?

ASROCK Fatal1ty B360M Performance Specifications

General IconGeneral
Form FactorMicro ATX
ChipsetIntel B360
CPU SocketLGA 1151
Maximum Memory64 GB
AudioRealtek ALC892 Audio Codec
Memory Slots4 x DIMM
Memory SpeedDDR4 2666/2400/2133 MHz
Storage Interface6 x SATA3
USB Ports6 x USB 3.1 Gen1, 6 x USB 2.0
LANIntel Gigabit LAN
Video OutputsHDMI, DisplayPort
Expansion Slots1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
