ASROCK Fatal1ty B360M Performance User Manual

21
English
Fatal1ty B360M Performance Series

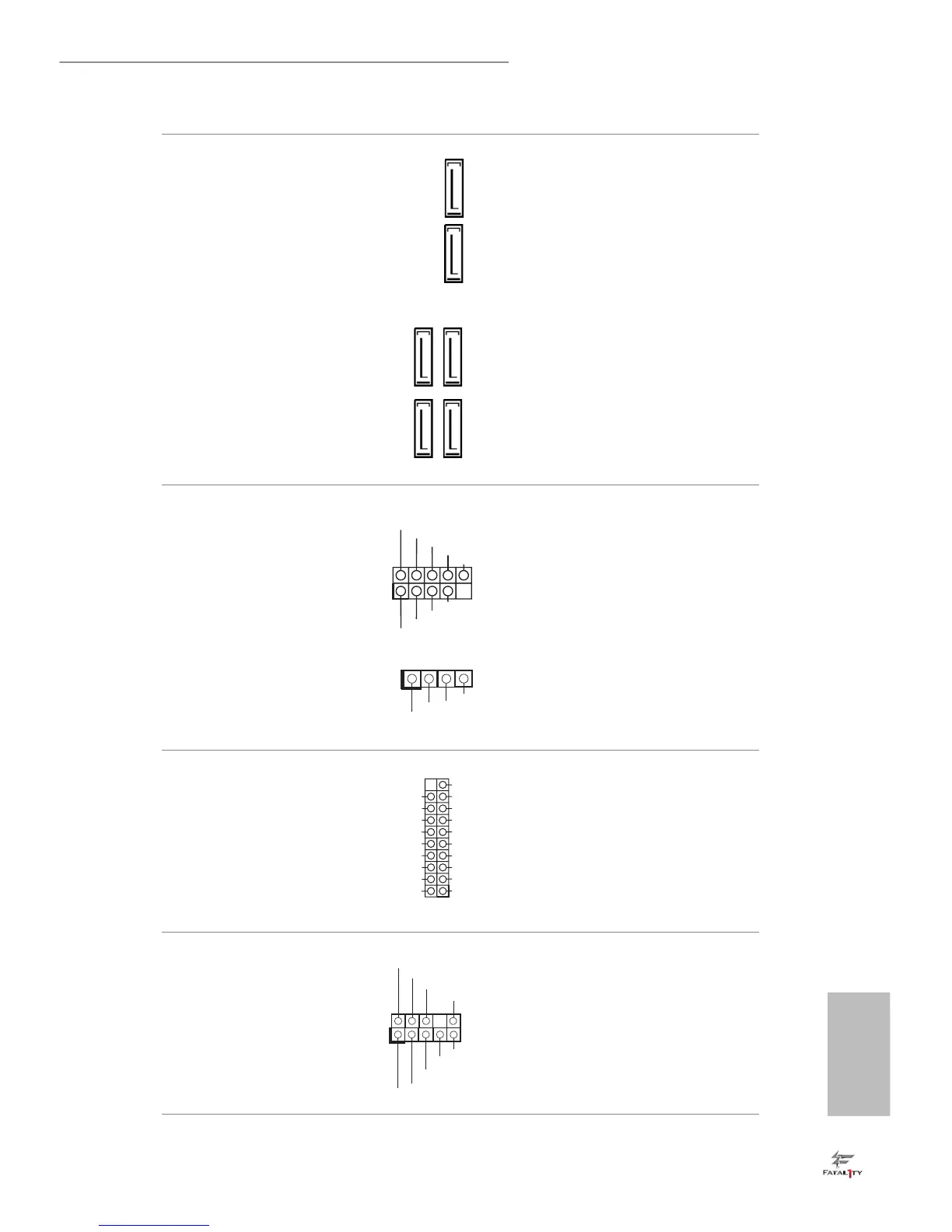

Serial ATA3 Connectors
(SATA3_0:
see p.7, No. 10)
(SATA3_1:
see p.7, No. 11)
(SATA3_2:
see p.7, No. 13)
(SATA3_3:
see p.7, No. 14)
(SATA3_4:
see p.7, No. 16)
(SATA3_5:
see p.7, No. 15)
ese six SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
If M2_2 is occupied by a
SATA-type M.2 device,
SATA3_1 will be disabled.
USB 2.0 Headers
(9-pin USB3_4)
(see p.7, No. 20)
(4-pin USB5)
(see p.7, No. 21)
ere are two headers on
this motherboard.
USB 3.1 Gen1 Header
(19-pin USB3_5_6)
(see p.7, No. 9)
ere is one header on
this motherboard. is
USB 3.1 Gen1 header can
support two ports.
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.7, No. 25)
is header is for
connecting audio devices
to the front audio panel.
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
VbusVbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
SATA3_4 SATA3_5
SATA3_2 SATA3_3
SATA3_1
SATA3_0
J_SENSE
OUT2_L
1
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET
1
USB_PWR
P-
P+
GND

ASROCK Fatal1ty B360M Performance Specifications

General

Form Factor	Micro ATX
Chipset	Intel B360
CPU Socket	LGA 1151
Maximum Memory	64 GB
Audio	Realtek ALC892 Audio Codec
Memory Slots	4 x DIMM
Memory Speed	DDR4 2666/2400/2133 MHz
Storage Interface	6 x SATA3
USB Ports	6 x USB 3.1 Gen1, 6 x USB 2.0
LAN	Intel Gigabit LAN
Video Outputs	HDMI, DisplayPort
Expansion Slots	1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
