ASROCK Fatal1ty H87 Performance Series User Manual

96
English

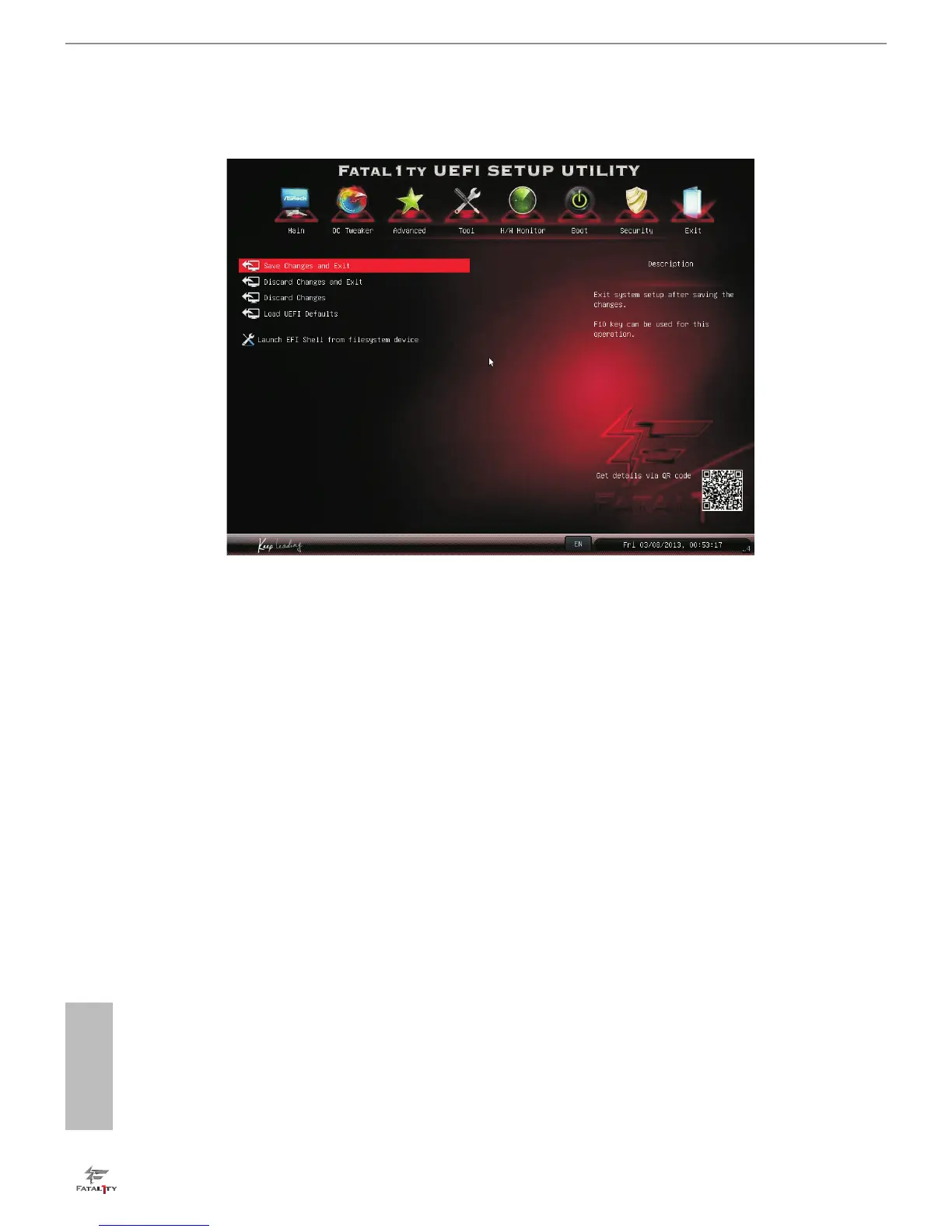

4.9 Exit Screen
Save Changes and Exit
When you select this option the following message, “Save conguration changes
and exit setup?” will pop out. Select [OK] to save changes and exit the UEFI SETUP
UTILITY.
Discard Changes and Exit
When you select this option the following message, “Discard changes and exit
setup?” will pop out. Select [OK] to exit the UEFI SETUP UTILITY without saving
any changes.
Discard Changes
When you select this option the following message, “Discard changes?” will pop
out. Select [OK] to discard all changes.
Load UEFI Defaults
Load UEFI default values for all options. e F9 key can be used for this operation.
Launch EFI Shell from lesystem device
Copy shellx64.e to the root directory to launch EFI Shell.

ASROCK Fatal1ty H87 Performance Series Specifications

General

Chipset	Intel H87
CPU Socket	LGA 1150
Form Factor	ATX
Max Memory	32GB
Memory Standard	DDR3 1600/1333/1066
PCI Express 3.0 x16	1
PCI Express 2.0 x16	1
PCI Express x1	2
PCI Slots	2
SATA 6Gb/s	6
Audio Chipset	Realtek ALC1150
RAID Support	RAID 0, 1, 5, 10
Memory Slots	4
USB 2.0 Ports	6
LAN	Gigabit LAN
Audio	7.1 Channel HD Audio
