ASROCK Fatal1ty H87 Performance Series User Manual

12
English

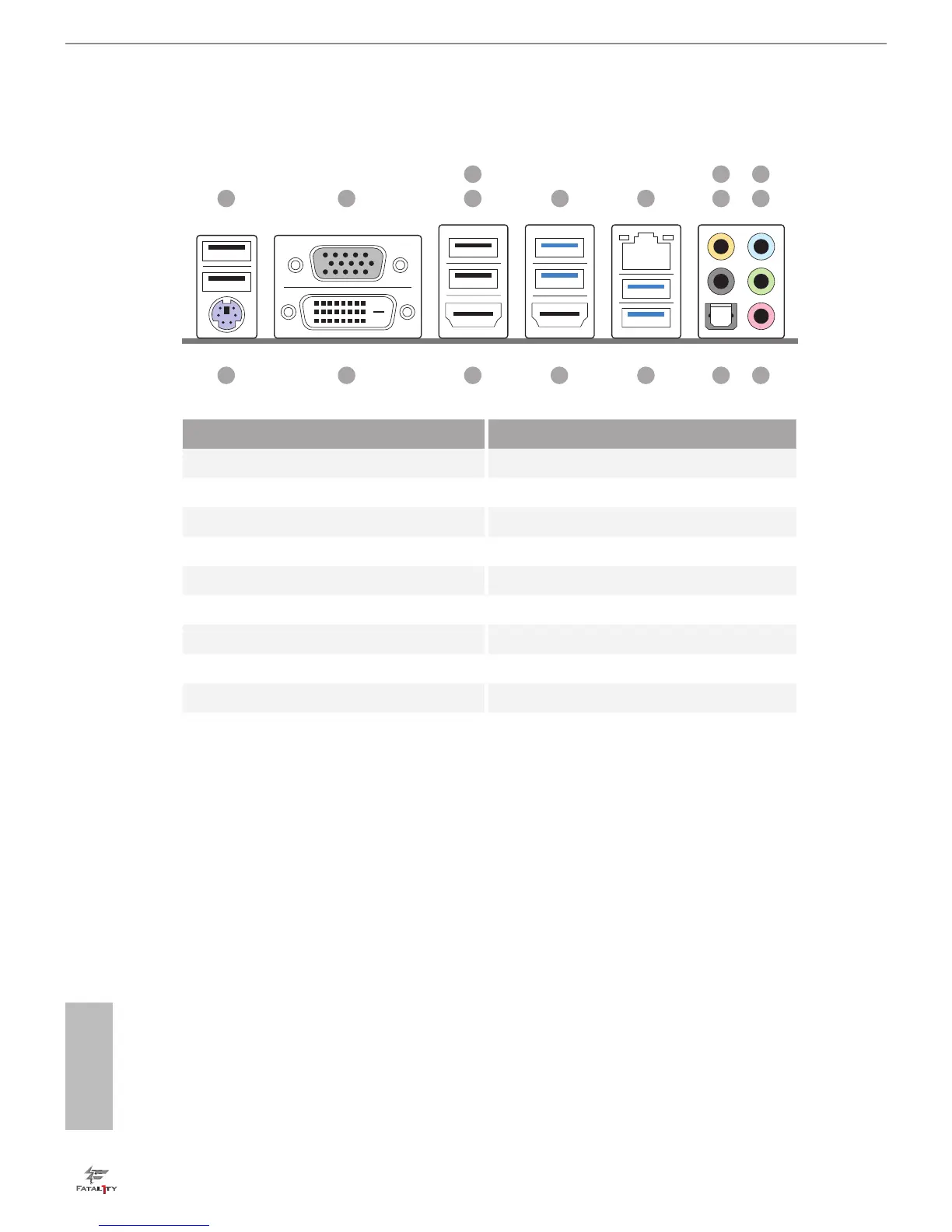

1.5 I/O Panel
No. Description No. Description
1 USB 2.0 Ports (USB01) 10 Front Speaker (Lime)**
2 D-Sub Port 11 Microphone (Pink)
3 Fatal1ty Mouse Port (USB2) 12 Optical SPDIF Out Port
4 USB 2.0 Port (USB3) 13 USB 3.0 Ports (USB3_23)
5 USB 3.0 Ports (USB3_01) 14 HDMI-In Port
6 LAN RJ-45 Port* 15 HDMI-Out Port
7 Central / Bass (Orange) 16 DVI-D Port
8 Rear Speaker (Black) 17 PS/2 Keyboard Port
9 Line In (Light Blue)
1 2 4
3
5 6 8
111217 13141516
7
10
9

ASROCK Fatal1ty H87 Performance Series Specifications

General

Chipset	Intel H87
CPU Socket	LGA 1150
Form Factor	ATX
Max Memory	32GB
Memory Standard	DDR3 1600/1333/1066
PCI Express 3.0 x16	1
PCI Express 2.0 x16	1
PCI Express x1	2
PCI Slots	2
SATA 6Gb/s	6
Audio Chipset	Realtek ALC1150
RAID Support	RAID 0, 1, 5, 10
Memory Slots	4
USB 2.0 Ports	6
LAN	Gigabit LAN
Audio	7.1 Channel HD Audio
