ASROCK Fatal1ty H87 Performance Series User Manual

66
English

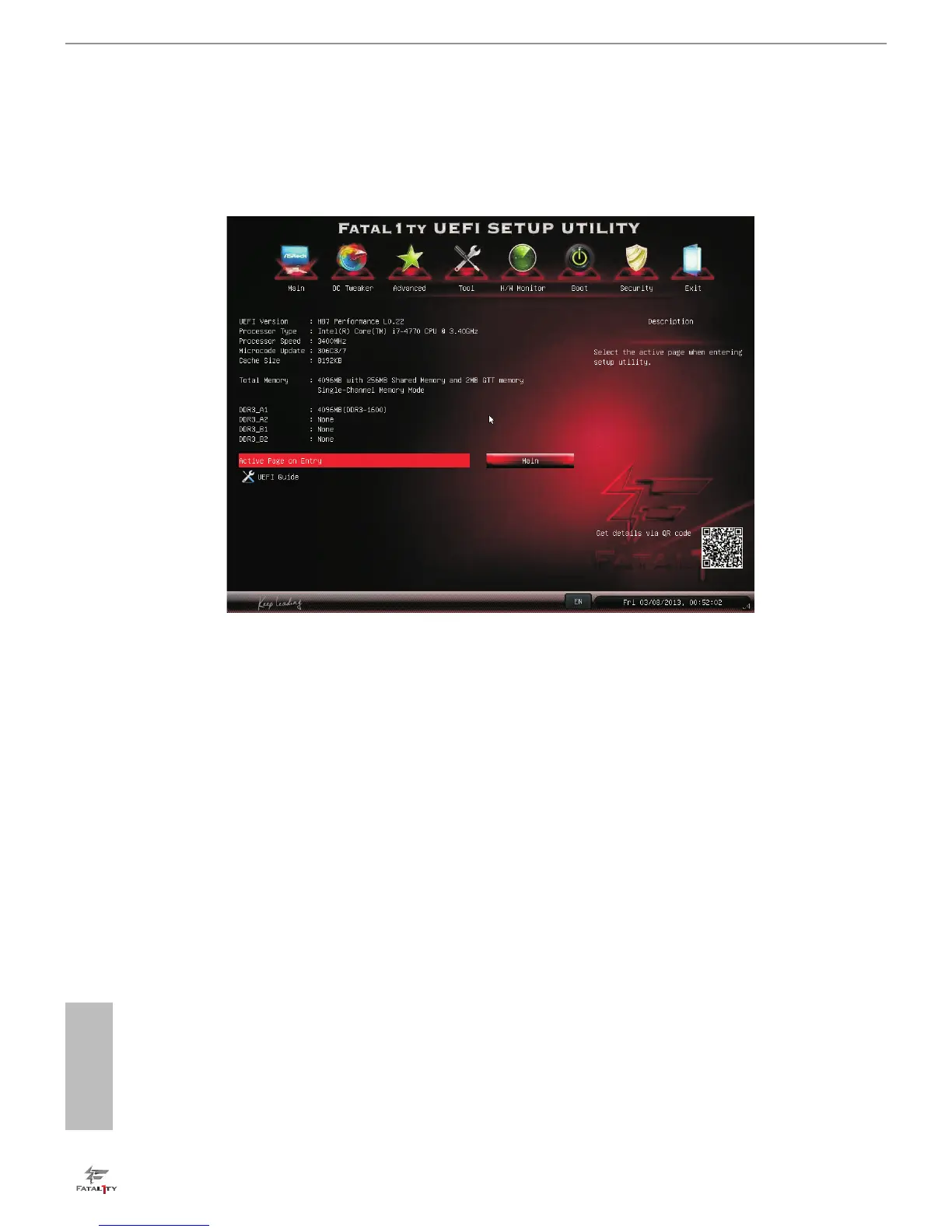

4.2 Main Screen
When you enter the UEFI SETUP UTILITY, the Main screen will appear and
display the system overview.
Active Page on Entry
Select the default page when entering the UEFI setup utility.
UEFI Guide
UEFI Guide is a quick tutorial for ASRock's UEFI setup Utility. You may abort the
tutorial by pressing "esc".

ASROCK Fatal1ty H87 Performance Series Specifications

General

Chipset	Intel H87
CPU Socket	LGA 1150
Form Factor	ATX
Max Memory	32GB
Memory Standard	DDR3 1600/1333/1066
PCI Express 3.0 x16	1
PCI Express 2.0 x16	1
PCI Express x1	2
PCI Slots	2
SATA 6Gb/s	6
Audio Chipset	Realtek ALC1150
RAID Support	RAID 0, 1, 5, 10
Memory Slots	4
USB 2.0 Ports	6
LAN	Gigabit LAN
Audio	7.1 Channel HD Audio
