Fatal1ty X99 Professional Series

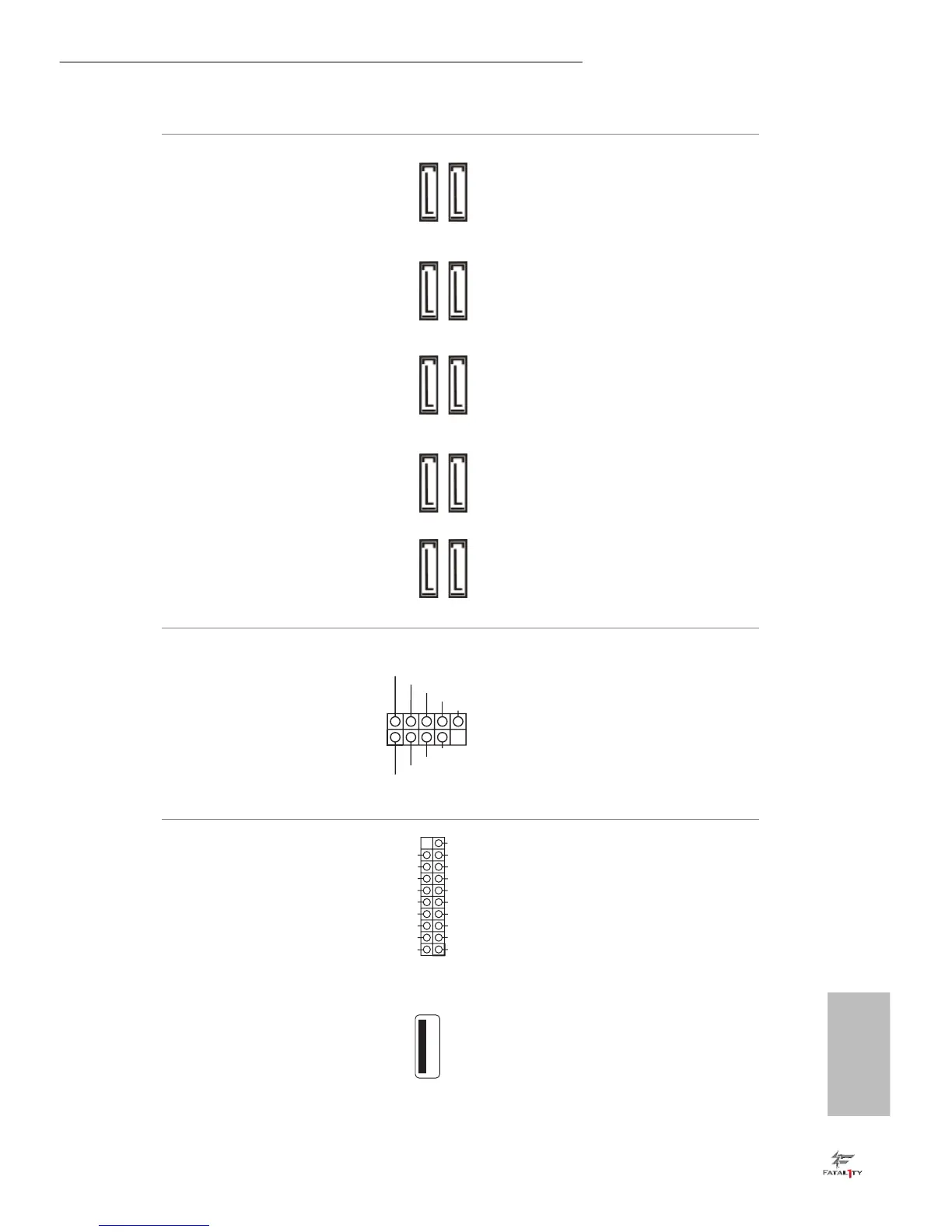

Serial ATA3 Connectors
(S_SATA3_0_1:
see p.7, No. 22)
(S_SATA3_2_3:
see p.7, No. 23)
(SATA3_0_1:
see p.7, No. 24)
(SATA3_2_3:
see p.7, No. 25)
(SATA3_4_5:
see p.7, No. 26)
ese ten SATA3
connectors support SATA
data cables for internal
storage devices with up
to 6.0 Gb/s data transfer
rate. If you install a M.2
SATA module to the
M.2 Socket (M2_1), the
internal S_SATA3_3 will
not function.
*If you install a M.2 PCI
Express module to the
M.2 Socket (M2_1), the
internal S_SATA3_3 will
still function.
* RAID is supported on
SATA3_0 ~ SATA3_5
ports only.
USB 2.0 Headers
(9-pin USB3_4)
(see p.7, No. 37)
(9-pin USB5_6)
(see p.7, No. 38)
Besides two USB 2.0 ports
on the I/O panel, there
are two headers on this
motherboard. Each USB
2.0 header can support
two ports.
USB 3.0 Headers
(19-pin USB3_7_8)
(see p.7, No. 18)
(19-pin USB3_9_10)
(see p.7, No. 21)
(USB3_8)
(see p.7, No. 19)
Besides six USB 3.0 ports
on the I/O panel, there
are two headers and one
port on this motherboard.
Each USB 3.0 header can
support two ports.
SATA3_0 SATA3_1
SATA3_4 SATA3_5
SATA3_2 SATA3_3
S_SATA3_0 S_SATA3_1
S_SATA3_2 S_SATA3_3
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
VbusVbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+

ASROCK Fatal1ty X99 Professional Series Specifications

General

Chipset	Intel X99
CPU Socket	LGA 2011-v3
Memory Slots	8 x DIMM
Maximum Memory	128GB
Memory Type	DDR4
SATA 6Gb/s Ports	10
M.2 Slots	1
Form Factor	ATX
RAID Support	RAID 0, 1, 5, 10
PCI Express x1 Slots	1 x PCIe 2.0 x1
Storage Interface	SATA 6Gb/s
LAN	Dual Gigabit LAN
Audio	Realtek ALC1150
Multi-GPU Support	AMD 3-Way CrossFireX
USB Ports	10 (6 rear, 4 via headers)
Ethernet	Dual Gigabit LAN
