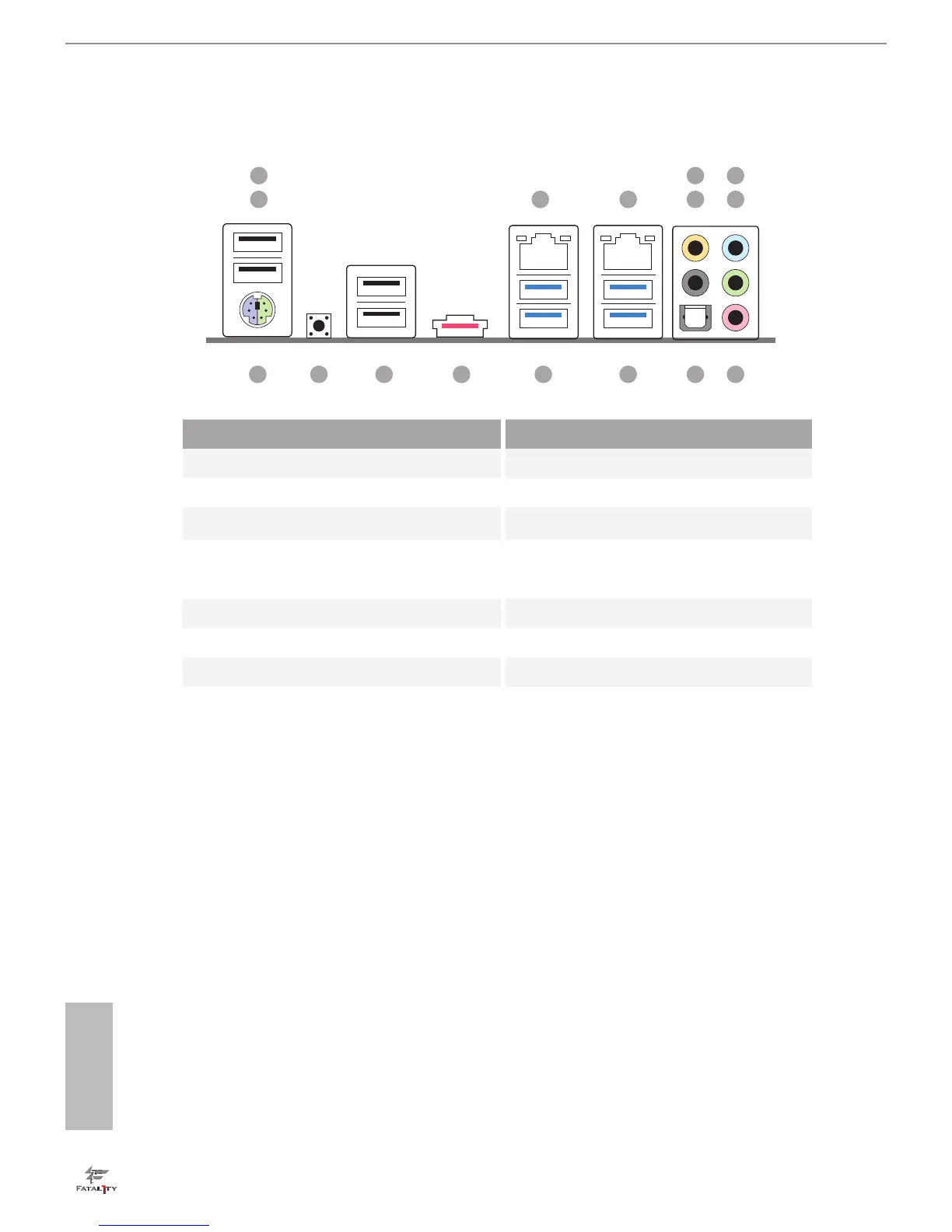

1.4 I/O Panel
No. Description No. Description
1 Fatal1ty Mouse Port (USB1) 9 Microphone (Pink)
2 USB 2.0 Port (USB2) 10 Optical SPDIF Out Port
3 LAN RJ-45 Port (Intel® I218V)* 11 USB 3.0 Ports (USB3_34)
4
LAN RJ-45 Port (Qualcomm® Atheros®
Killer
TM
E2200 Series)*
12 USB 3.0 Ports (USB3_12)
5 Central / Bass (Orange) 13 eSATA Connector***
6 Rear Speaker (Black) 14 USB 2.0 Ports (USB34)
7 Line In (Light Blue) 15
Clear CMOS Switch
8 Front Speaker (Lime)** 16 PS/2 Mouse/Keyboard Port
