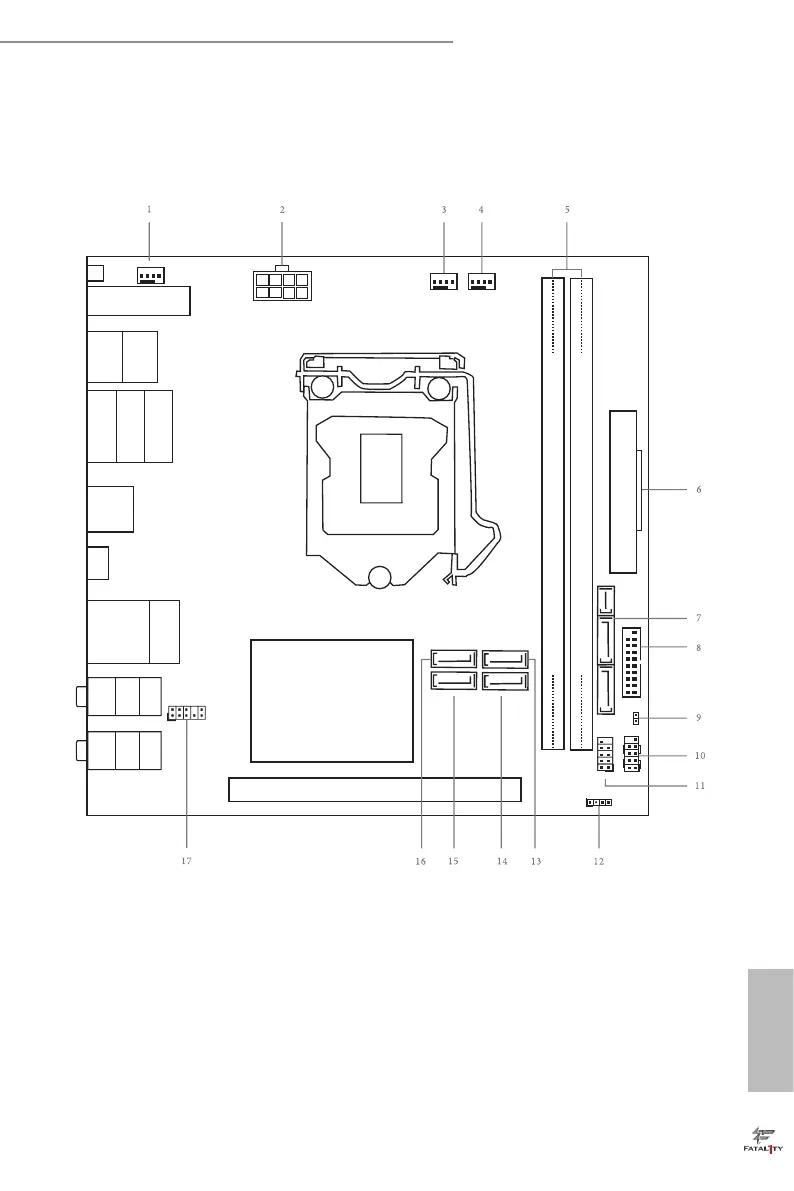

1.3 Motherboard Layout
Z270 Gaming-ITX/ac
Intel
Z270
DDR4_B1 (64 bit, 288-pin module)
DDR4_A1 (64 bit, 288-pin module)
PCIE1
U ltra M.2
P CIe Gen3 x4
ATXPWR1
ATX1 2V 1
CLR
BTN1
M2_2_WIFI
USB 3.0
T: USB1
B: USB2
PS2
Keyboard
/Mouse
HDMI1
DP_1
Optical SPDIF
USB 3.0
T: USB3
B: USB4
T B_1
Top:
RJ-45
USB 3.0
T: USB7
B: USB8
Top:
SIDE SPK
Cente r:
REAR SPK
Botto m:
CTR BASS
Top:
LINE IN
Cente r:
FRONT
Botto m:
MIC I N
RoHS
CHA_FAN1
CPU_FAN1 C PU _O PT /W _P UM P
USB 3_ 5_6
SATA3 _4 _5
1
CI1
HDL ED RES ET
PLE D PW RBT N
PANE L1
1
USB 1_ 2
1
1
SPEA KER 1
1
HD_AUDIO1
SATA3 _3
SATA3 _0
SATA3 _2
SATA3 _1
