ASROCK G41C-GS User Manual

1111
1111
11
1.3 Motherboard Layout (G41C-GS / G41C-S)1.3 Motherboard Layout (G41C-GS / G41C-S)
1.3 Motherboard Layout (G41C-GS / G41C-S)1.3 Motherboard Layout (G41C-GS / G41C-S)

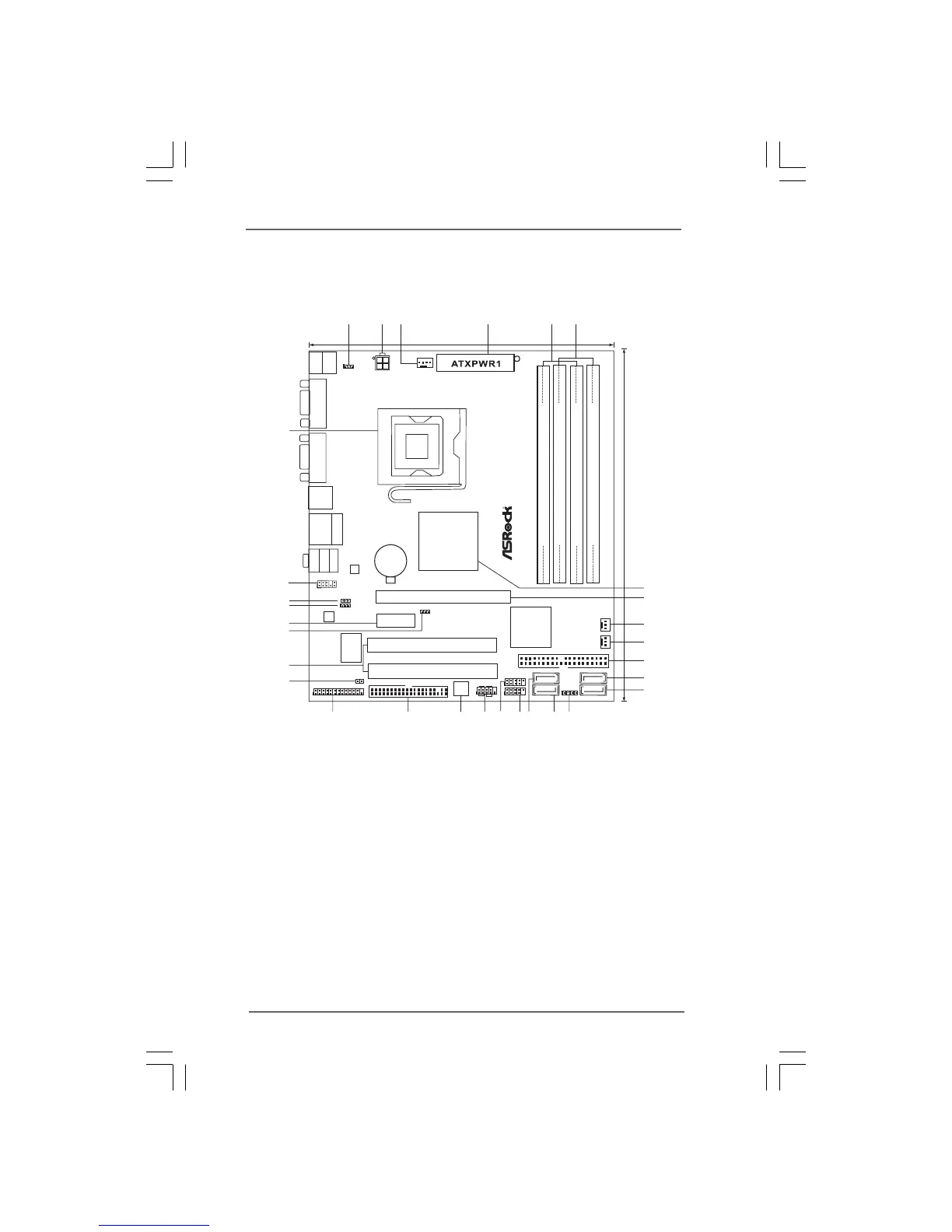

1.3 Motherboard Layout (G41C-GS / G41C-S)
1 PS2_USB_PWR1 Jumper 16 Primary SATAII Connector (SATAII_1; Red)
2 ATX 12V Connector (ATX12V2) 17 USB 2.0 Header (USB6_7, Blue)
3 CPU Fan Connector (CPU_FAN1) 18 USB 2.0 Header (USB4_5, Blue)
4 ATX Power Connector (ATXPWR1) 19 System Panel Header (PANEL1, Orange)
5 2 x 240-pin DDR2 DIMM Slots 20 BIOS SPI Chip
(Dual Channel: DDRII_1, DDRII_2; Yellow) 21 Floppy Connector (FLOPPY1)
6 2 x 240-pin DDR3 DIMM Slots 22 Print Port Header (LPT1, Purple)
(Dual Channel: DDR3_A1, DDR3_B1; Blue) 23 Clear CMOS Jumper (CLRCMOS1)
7 North Bridge Controller 24 PCI Slots (PCI1-2)
8 PCI Express x16 Slot (PCIE1) 25 FSB1 Jumper
9 Power Fan Connector (PWR_FAN1) 26 PCI Express x1 Slot (PCIE2)
10 Chassis Fan Connector (CHA_FAN1) 27 EUP Audio Jumper (EUP_AUDIO1)
11 IDE1 Connector (IDE1, Blue) 28 EUP LAN Jumper (EUP_LAN1)
12 Third SATAII Connector (SATAII_3; Red) 29 Front Panel Audio Header
13 Fourth SATAII Connector (SATAII_4; Red) (HD_AUDIO1, Lime)
14 Chassis Speaker Header (SPEAKER 1, Purple) 30 775-Pin CPU Socket
15 Secondary SATAII Connector (SATAII_2; Red)
Intel
G41
Chipset
Intel
ICH7
19.8cm (7.8 in)
24.4cm (9.6 in)
PS2
Mouse
PS2
Keyboard
VGA1
COM1
USB 2.0
T: U S B 2
B: USB3
USB 2.0
T: U SB 0
B: USB1
Top:
RJ-45
Top:
Line In
Center:
Line Out
Bottom:
Mic In
1
PS2_USB_PWR1
ATX12V2
CPU_FAN1
FSB800
DDRII_1 (64 bit, 240-pin module)
FSB800
DDR3_A1 (64 bit, 240-pin module)
FSB800
DDRII_2 (64 bit, 240-pin module)
FSB800
DDR3_B1 (64 bit, 240-pin module)
EuP Ready
FSB1333
DDR2 800
DDR3 1333
Dual Channel
LAN
PHY
HD_AUDIO1
1
EUP_LAN
1
EUP_AUDIO1
1
PCIE1
IDE1
CMOS
Battery
AUDIO
CODEC
PCI1
SPEAKER1
1
PANEL1
HDLED RESET
PLED PWRBTN
1
CHA_FAN1
CLRCMOS1
1
USB6_7
1
USB4_5
DX10
FSB1
1
1
24
5
3
7
6
8
9
10
12
13
14
11
15
16
17
1819
20
21
22
23
PCIE2
PCI2
Super
IO
PWR_FAN1
SATAII_1
SATAII_2
SATAII_3
SATAII_4
8Mb
BIOS
FLOPPY1
RoHS
24
25
26
27
28
29
30
1
LPT1

ASROCK G41C-GS Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR2-SDRAM, DDR3-SDRAM
Maximum internal memory	8 GB
Supported memory clock speeds	533, 667, 800, 1066, 1333 MHz
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Celeron Dual-Core, Intel Pentium Dual-Core
Processor system buses supported	533, 800, 1066, 1333 MHz
USB 2.0 connectors	2
Number of Parallel ATA connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	VIA VT1705
Cooling type	Passive
Certification	FCC, CE, EuP
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® G41
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Motherboard southbridge	Intel ICH7
Compatible operating systems	Windows 7\\r Windows Vista\\r Windows XP
Supported storage drive interfaces	Parallel ATA, SATA II
Graphics card	GMA X4500
DirectX version	10
Maximum resolution	2048 x 1536 pixels
Maximum graphics card memory	1759 MB
Parallel processing technology support	Not supported
Cables included	SATA
LAN controller	Realtek RTL8111DL
Networking features	Gigabit Ethernet
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
BIOS type	AMI
ACPI version	1.1
BIOS memory size	8 Mbit
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	198 mm
Width	244 mm
