AII Hard Disk Setup GuideAII Hard Disk Setup Guide
AII Hard Disk Setup GuideAII Hard Disk Setup Guide
AII Hard Disk Setup Guide

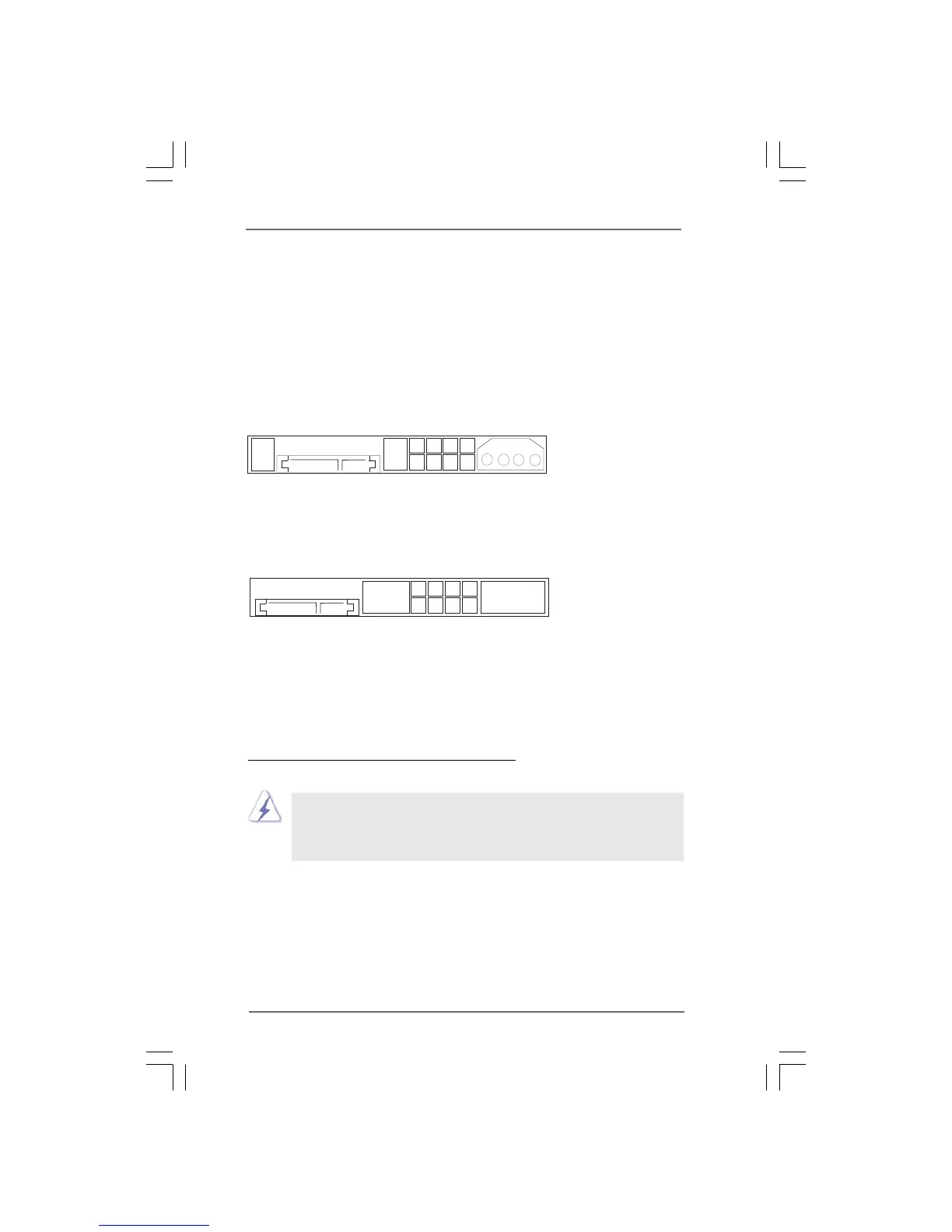

Before installing SATAII hard disk to your computer, please carefully read below
SATAII hard disk setup guide. Some default setting of SATAII hard disks may not
be at SATAII mode, which operate with the best performance. In order to enable
SATAII function, please follow the below instruction with different vendors to
correctly adjust your SATAII hard disk to SATAII mode in advance; otherwise, your
SATAII hard disk may fail to run at SATAII mode.
Western Digital
If pin 5 and pin 6 are shorted, SATA 1.5Gb/s will be enabled.
On the other hand, if you want to enable SATAII 3.0Gb/s, please remove the
jumpers from pin 5 and pin 6.
SAMSUNG
If pin 3 and pin 4 are shorted, SATA 1.5Gb/s will be enabled.
On the other hand, if you want to enable SATAII 3.0Gb/s, please remove the
jumpers from pin 3 and pin 4.
HITACHI
Please use the Feature Tool, a DOS-bootable tool, for changing various ATA
features. Please visit HITACHI’s website for details:
http://www.hitachigst.com/hdd/support/download.htm
1357
2468
1357
2468
The above examples are just for your reference. For different SATAII hard
disk products of different vendors, the jumper pin setting methods may not
be the same. Please visit the vendors’ website for the updates.

ASROCK G41C-GS Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR2-SDRAM, DDR3-SDRAM
Maximum internal memory	8 GB
Supported memory clock speeds	533, 667, 800, 1066, 1333 MHz
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Celeron Dual-Core, Intel Pentium Dual-Core
Processor system buses supported	533, 800, 1066, 1333 MHz
USB 2.0 connectors	2
Number of Parallel ATA connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	VIA VT1705
Cooling type	Passive
Certification	FCC, CE, EuP
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® G41
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Motherboard southbridge	Intel ICH7
Compatible operating systems	Windows 7\\r Windows Vista\\r Windows XP
Supported storage drive interfaces	Parallel ATA, SATA II
Graphics card	GMA X4500
DirectX version	10
Maximum resolution	2048 x 1536 pixels
Maximum graphics card memory	1759 MB
Parallel processing technology support	Not supported
Cables included	SATA
LAN controller	Realtek RTL8111DL
Networking features	Gigabit Ethernet
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
BIOS type	AMI
ACPI version	1.1
BIOS memory size	8 Mbit
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	198 mm
Width	244 mm
