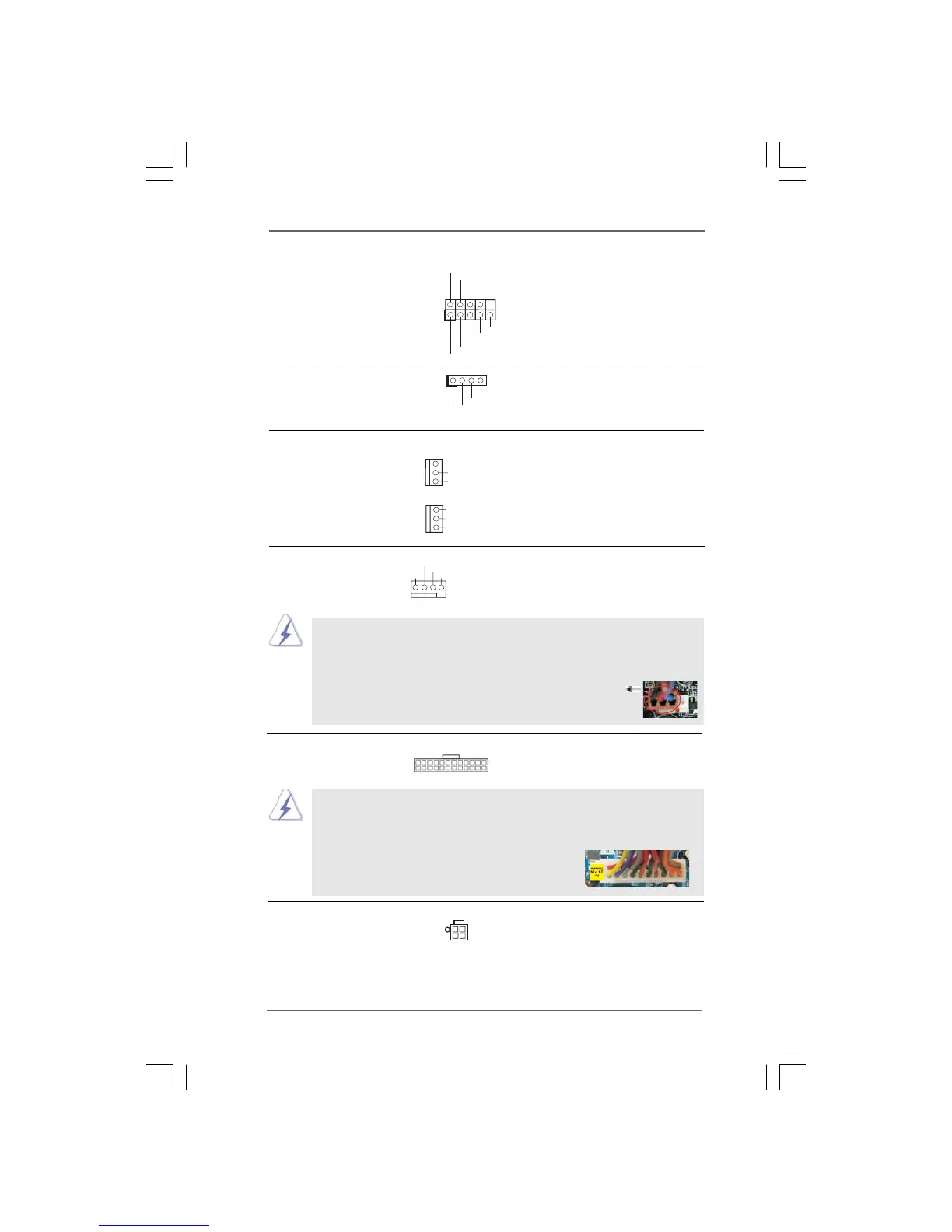

20-Pin ATX Power Supply Installation
ATX 12V Connector Please note that it is necessary
(4-pin ATX12V2) to connect a power supply with
(see p.11 No. 2) ATX 12V plug to this connector
so that it can provides sufficient
power. Failing to do so will cause
the failure to power up.
ATX Power Connector Please connect an ATX power
(24-pin ATXPWR1) supply to this connector.
(see p.11 No. 4)
Though this motherboard provides 24-pin ATX power connector, it can still work
if you adopt a traditional 20-pin ATX power supply. To use the 20-pin ATX power
supply, please plug your power supply along with Pin 1 and Pin 13.
24 13
12 1
24 13
12 1
+5V
DUMMY
DUMMY
SPEAKER
1
GND
PWRBTN#
PLED-
PLED+
DUMMY
RESET#
GND
HD LED+
HD LED-
1
System Panel Header This header accommodates
(9-pin PANEL1) several system front panel
(see p.11 No. 19) functions.
Chassis Speaker Header Please connect the chassis
(4-pin SPEAKER 1) speaker to this header.
(see p.11 No. 14)
Chassis and Power Fan Connectors Please connect the fan cables
(3-pin CHA_FAN1) to the fan connectors and
(see p.11 No. 10) match the black wire to the
ground pin.
(3-pin PWR_FAN1)
(see p.11 No. 9)
CPU Fan Connector Please connect a CPU fan cable
(4-pin CPU_FAN1) to this connector and match
(see p.11 No. 3) the black wire to the ground pin.
GND
+12V
CPU_FAN_SPEED
FAN_SPEED_CONTR OL
1 2 3 4
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
3-Pin Fan Installation
Pin 1-3 Connected
GND
+12V
CHA_FAN_SPEED
PWR_FAN_SPEED
GND
+12V

ASROCK G41C-GS Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR2-SDRAM, DDR3-SDRAM
Maximum internal memory	8 GB
Supported memory clock speeds	533, 667, 800, 1066, 1333 MHz
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Celeron Dual-Core, Intel Pentium Dual-Core
Processor system buses supported	533, 800, 1066, 1333 MHz
USB 2.0 connectors	2
Number of Parallel ATA connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	VIA VT1705
Cooling type	Passive
Certification	FCC, CE, EuP
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® G41
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Motherboard southbridge	Intel ICH7
Compatible operating systems	Windows 7\\r Windows Vista\\r Windows XP
Supported storage drive interfaces	Parallel ATA, SATA II
Graphics card	GMA X4500
DirectX version	10
Maximum resolution	2048 x 1536 pixels
Maximum graphics card memory	1759 MB
Parallel processing technology support	Not supported
Cables included	SATA
LAN controller	Realtek RTL8111DL
Networking features	Gigabit Ethernet
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
BIOS type	AMI
ACPI version	1.1
BIOS memory size	8 Mbit
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	198 mm
Width	244 mm
