123
繁體中文
H110M-ITX/ac
H110M-ITX

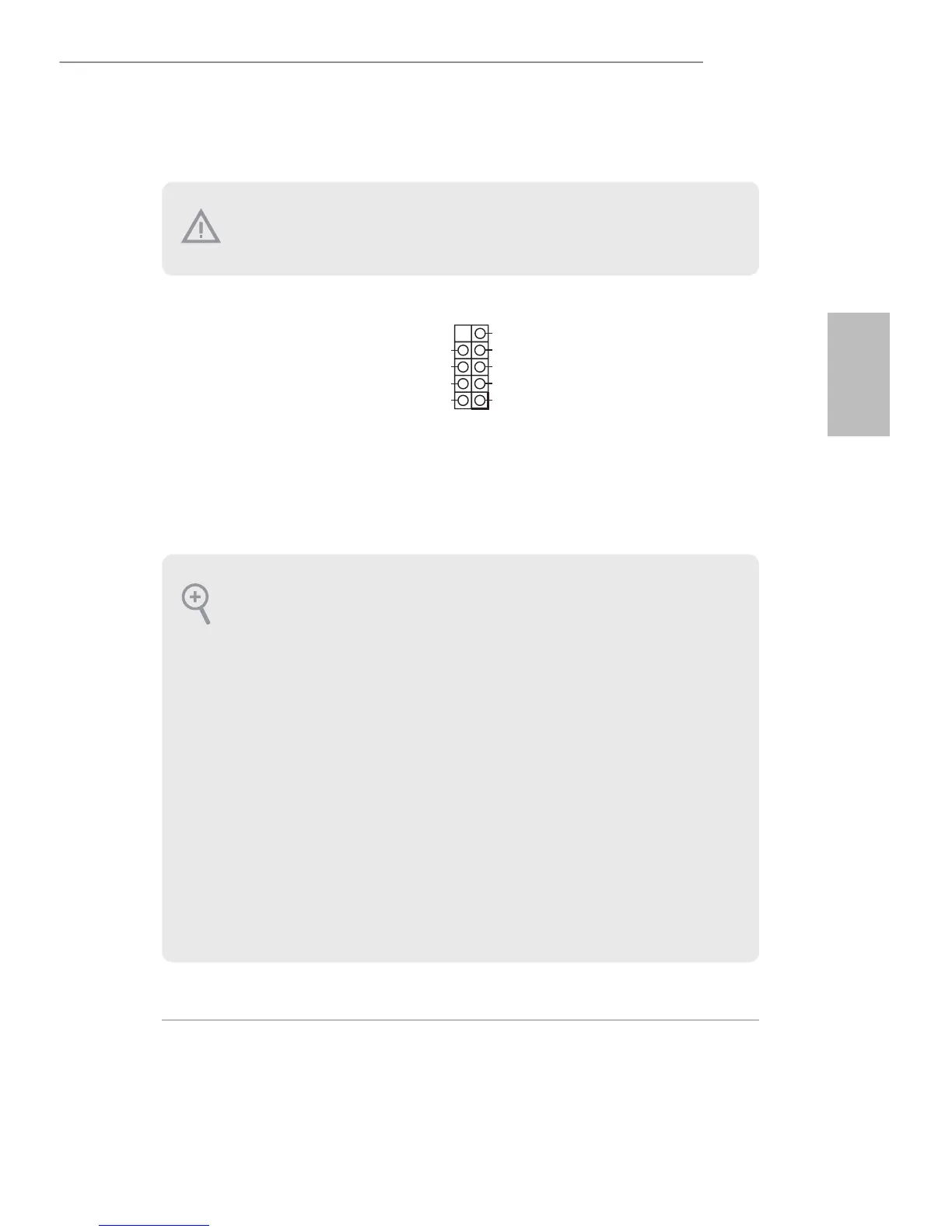

1.4 板載排針及接頭
系統面板排針
(9-pin PANEL1)
(請參閱第 1 頁, 編號 9
請依照以下的針腳排
列將機殼上的電源開
關、重設開關及系統
狀態指示燈連接至此
排針。在連接纜線之
前請注意正負針腳。
PWRBTN ( 電源開關 )
連接至機殼前面板上的電源開關。您可設定使用電源開關關閉系統電源的方
式。
RESET ( 重設開關 )
連接至機殼前面板上的重設開關。若電腦凍結且無法執行正常重新啟動,按下
重設開關即可重新啟動電腦。
PLED ( 系統電源 LED)
連接至機殼前面板上的電源狀態指示燈。系統正在運作時,此 LED 會亮起。系
統進入 S1/S3 睡眠狀態時,LED 會持續閃爍。系統進入 S4 睡眠狀態或關機 (S5)
時,LED 會熄滅。
HDLED ( 硬碟活動 LED)
連接至機殼前面板上的硬碟活動 LED。硬碟正在讀取或寫入資料時,LED 會亮
起。
各機殼的前面板設計各有不同。前面板模組主要是由電源開關、重設開關、電
LED、硬碟活動 LED、喇叭及其他裝置組成。將機殼前面板模組連接至此排
針時,請確定佈線及針腳指派皆正確相符。
板載排針及接頭都不是跳線。請勿將跳線帽套在這些排針及接頭上。將跳線帽
套在排針及接頭上,將造成主機板永久性的受損。
GND RESET#
PWRBTN#
PLED-
PLED+
GND
HDLED-
HDLED+
1
GND

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the ASROCK H110M-ITX/ac and is the answer not in the manual?

ASROCK H110M-ITX/ac Specifications

General IconGeneral
Processor socketLGA 1151 (Socket H4)
Processor manufacturerIntel
Compatible processor seriesIntel Celeron, Intel Pentium
Processor thermal power (max)95 W
Intel® Core i3/i5/i7/i9 seriesi3-6xxx, i5-6xxx, i7-6xxx
Maximum number of SMP processors1
Non-ECCYes
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots2
Supported memory typesDDR4-SDRAM
Maximum internal memory32 GB
Supported memory clock speeds2133 MHz
Audio chipRealtek ALC892
Cooling typePassive
Component forMini PC
Power source typeATX
Motherboard chipsetIntel® H110
PC health monitoringCPU, FAN, Temperature, Voltage
Audio output channels7.1 channels
Motherboard form factormini ITX
Cables includedSATA
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
LAN controllerIntel® I219-V
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version4.0
Ethernet interface typeGigabit Ethernet
DirectX version12.0
Maximum resolution4096 x 2160 pixels
Maximum graphics card memory1024 MB
Parallel processing technology supportNot supported
Supported storage drive interfacesM.2, SATA III
BIOS typeUEFI AMI
ACPI version5.0
BIOS memory size64 Mbit
Harmonized System (HS) code84733020
Weight and Dimensions IconWeight and Dimensions
Width- mm
