124
繁體中文

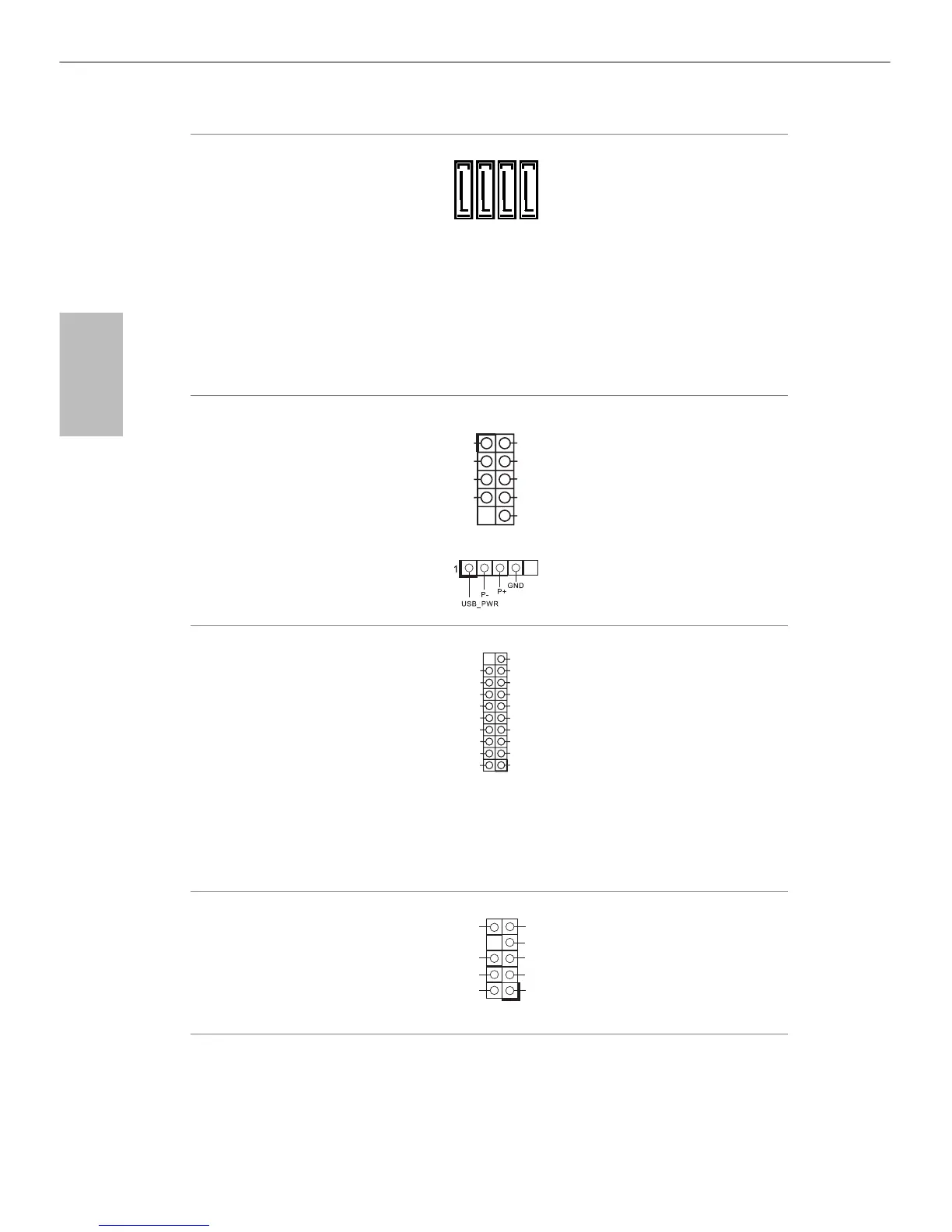

Serial ATA3 接頭
(SATA3_0:
請參閱第 1 頁,編號 12
(SATA3_1:
請參閱第 1 頁,編號 13
(SATA3_2:
請參閱第 1 頁,編號 14
(SATA3_3:
請參閱第 1 頁,編號 15
這四組 SATA3 接頭
皆支援內部儲存裝置
SATA 資料纜線,
最高可達 6.0 Gb/s
料傳輸率。
USB 2.0 排針
(9-pin USB_9_10)
(請參閱第 1 頁,編號 6
(4-pin USB11)
(請參閱第 1 頁,編號 18
此主機板上具有一個
排針及一個連接埠。
USB 2.0 排針皆可
支援兩個連接埠。
USB 3.0 排針
(19-pin USB3_7_8)
(請參閱第 1 頁,編號 7
除了 I/O 面板上的
兩個 USB 3.0 連接埠
外,在本主機板上還
有另外一組排針。各
USB 3.0 排針皆可支
援兩個連接埠。
* USB3_7_8 接頭與
USB_9_10 接頭共
用。
前面板音訊排針
(9-pin HD_AUDIO1)
(請參閱第 1 頁,編號 17
本排針適用於連接音
訊裝置至前面板音
訊。
J_SENS E
OUT2_L
MIC_RET
PRESENCE#
GN D
OUT2_R
MIC2_R
MIC2_L
OUT_RET
1
DUMMY
GND GND
P+
P-
P+
P-
USB_PWR
USB_PWR
1
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
VbusVbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
SATA3_3
SATA3_2
SATA3_1
SATA3_0
