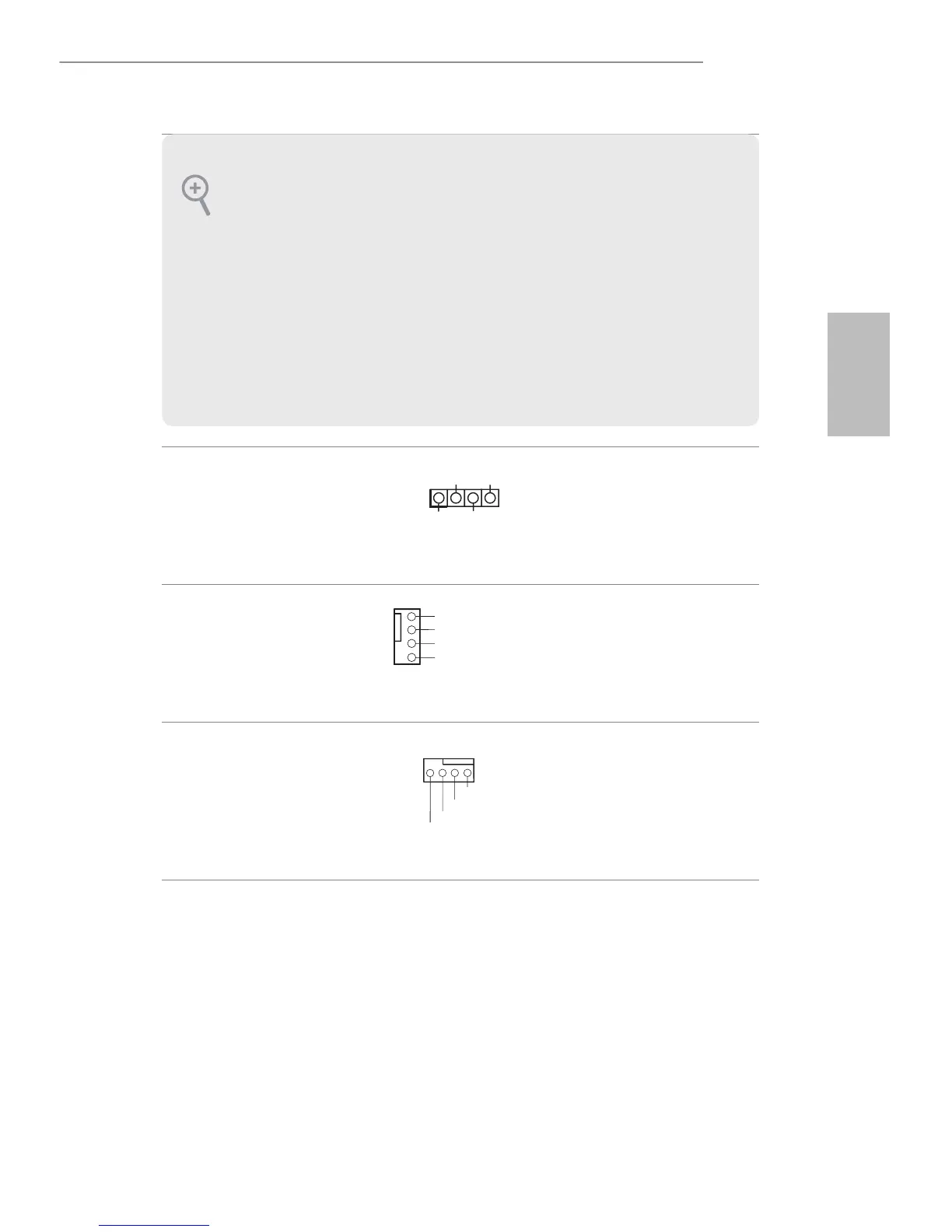

125
繁體中文
H110M-ITX/ac
H110M-ITX
機殼喇叭排針
(4-pin SPEAKER1)
(請參閱第 1 頁, 編號 10
請將機殼喇叭連接至
此排針。
機殼風扇接頭
(4-pin CHA_FAN1)
(請參閱第 1 頁, 編號 4
請將風扇纜線連接至
風扇接頭,並比對黑
線及接地針腳。
CPU 風扇接頭
(4-pin CPU_FAN1)
(請參閱第 1 頁, 編號 2
本主機板配備 4-Pin
CPU 風扇 ( 靜音風
) 接頭。若您計畫
連接 3-Pin CPU
扇,請接至 Pin 1-3
1.
高解析度音訊支援智慧型音效介面偵測 (Jack Sensing),但機殼上的面板線必
須支援 HDA 才能正確運作。請依本手冊及機殼手冊說明安裝系統。
2.
若您使用 AC97 音訊面板,請按照以下步驟安裝至前面板音訊排針:
A. Mic_IN (MIC) 連接至 MIC2_L
B. Audio_R (RIN) 連接至 OUT2_R 且將 Audio_L (LIN) 連接至 OUT2_L
C. 將接地 (GND) 連接至接地 (GND)
D. MIC_RET OUT_RET 僅供 HD 音訊面板使用。您不需要在 AC97 音訊
面板上連接。
E. 若要啟動前側麥克風,請前往 Realtek 控制面板中的「FrontMic」標籤調整
「錄音音量」。
1
+5V
DUMMY
DUMMY
SPEAKER
CPU_F
FAN_VOLTAGE
GND
AN_SPEED
FAN_SPEED_CONTROL
4 3 2 1
GND
FAN_VOLTAGE
CHA_FAN_SPEED
FAN_SPEED_CONTROL

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the ASROCK H110M-ITX/ac and is the answer not in the manual?

ASROCK H110M-ITX/ac Specifications

General IconGeneral
Processor socketLGA 1151 (Socket H4)
Processor manufacturerIntel
Compatible processor seriesIntel Celeron, Intel Pentium
Processor thermal power (max)95 W
Intel® Core i3/i5/i7/i9 seriesi3-6xxx, i5-6xxx, i7-6xxx
Maximum number of SMP processors1
Non-ECCYes
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots2
Supported memory typesDDR4-SDRAM
Maximum internal memory32 GB
Supported memory clock speeds2133 MHz
Audio chipRealtek ALC892
Cooling typePassive
Component forMini PC
Power source typeATX
Motherboard chipsetIntel® H110
PC health monitoringCPU, FAN, Temperature, Voltage
Audio output channels7.1 channels
Motherboard form factormini ITX
Cables includedSATA
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
LAN controllerIntel® I219-V
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version4.0
Ethernet interface typeGigabit Ethernet
DirectX version12.0
Maximum resolution4096 x 2160 pixels
Maximum graphics card memory1024 MB
Parallel processing technology supportNot supported
Supported storage drive interfacesM.2, SATA III
BIOS typeUEFI AMI
ACPI version5.0
BIOS memory size64 Mbit
Harmonized System (HS) code84733020
