2.3 Jumpers Setup

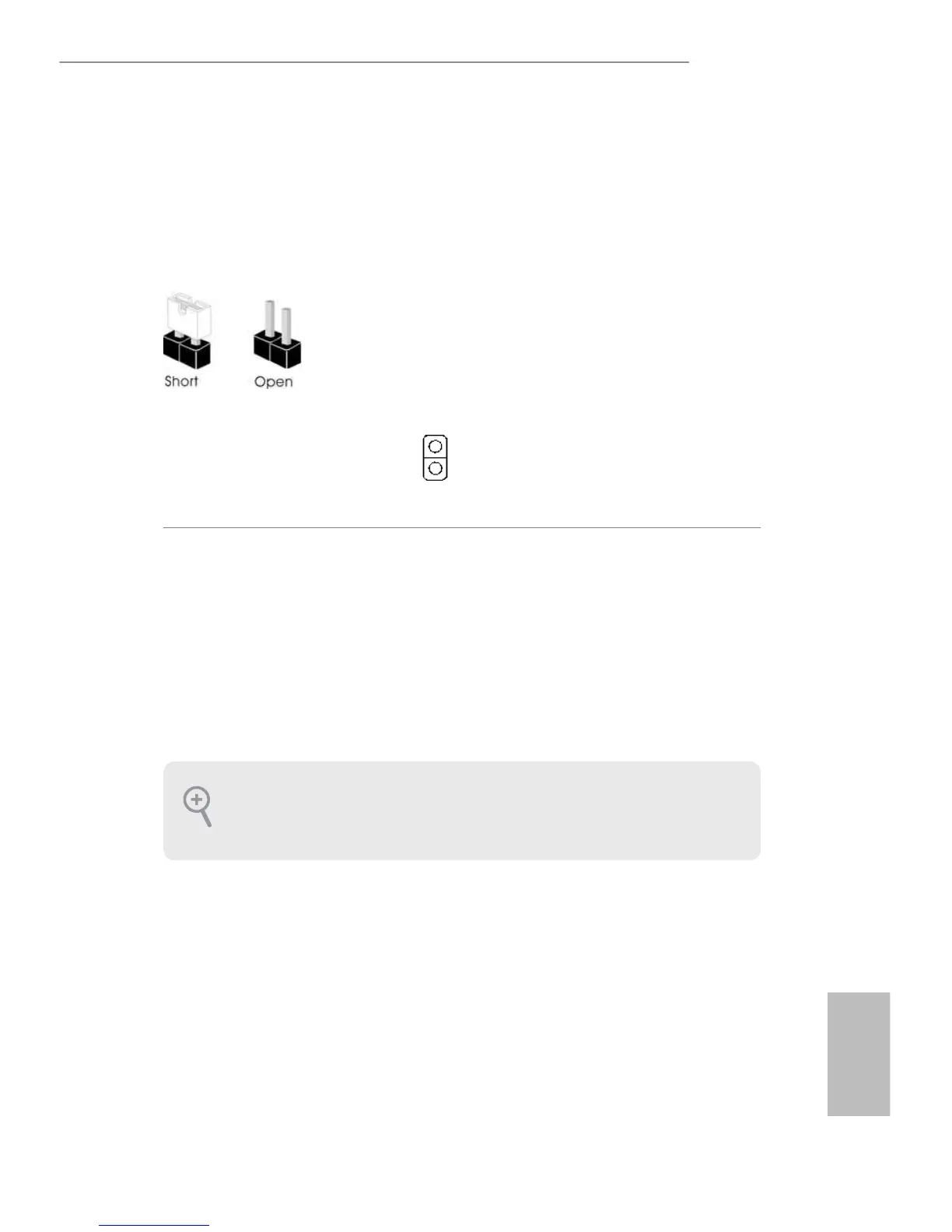

e illustration shows how jumpers are setup. When the jumper cap is placed on
the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is
“Open”.
Clear CMOS Jumper
(CLRMOS1)
(see p.5, No. 5)
Short: Clear CMOS
Open: Default
CLRMOS1 allows you to clear the data in CMOS. e data in CMOS includes
system setup information such as system password, date, time, and system setup
parameters. ere are two ways for you to clear and reset the system parameters
to the default setup. Please turn o the computer and unplug the power cord, then
you may either short the solder points on CLRMOS1 by using metal material,
e.g., a paper clip for 3 seconds; or you may use a jumper cap to short the pin on
CLRMOS1 for 3 seconds. Please remember to remove the paper clip or the jumper
cap aer clearing the CMOS.
2-pin Jumper
*e jumper cap is not provided.
If you clear the CMOS, the case open may be detected. Please adjust the BIOS option
“Clear Status” to clear the record of previous chassis intrusion status.

ASROCK J4105B-ITX Specifications

General

Audio chip	Realtek ALC887
Certification	FCC, CE, ErP/EuP
Component for	PC
Motherboard chipset	-
PC health monitoring	CPU, FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Motherboard chipset family	Intel
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64
Cables included	SATA
Drivers included	Yes
Processor family	Intel® Celeron®
eSATA ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 2.0 connectors	2
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
Graphics card	UHD Graphics 600
OpenGL version	4.3
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	128 Mbit
System Management BIOS (SMBIOS) version	3.0
Memory channels	Dual-channel
Memory slots type	SO-DIMM
Supported memory types	DDR4-SDRAM
Maximum internal memory	8 GB
Supported memory clock speeds	2133, 2400 MHz
Processor cores	4
Processor model	J4105
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	170 mm
