7
English
J4105B-ITX
J4005B-ITX
* ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port

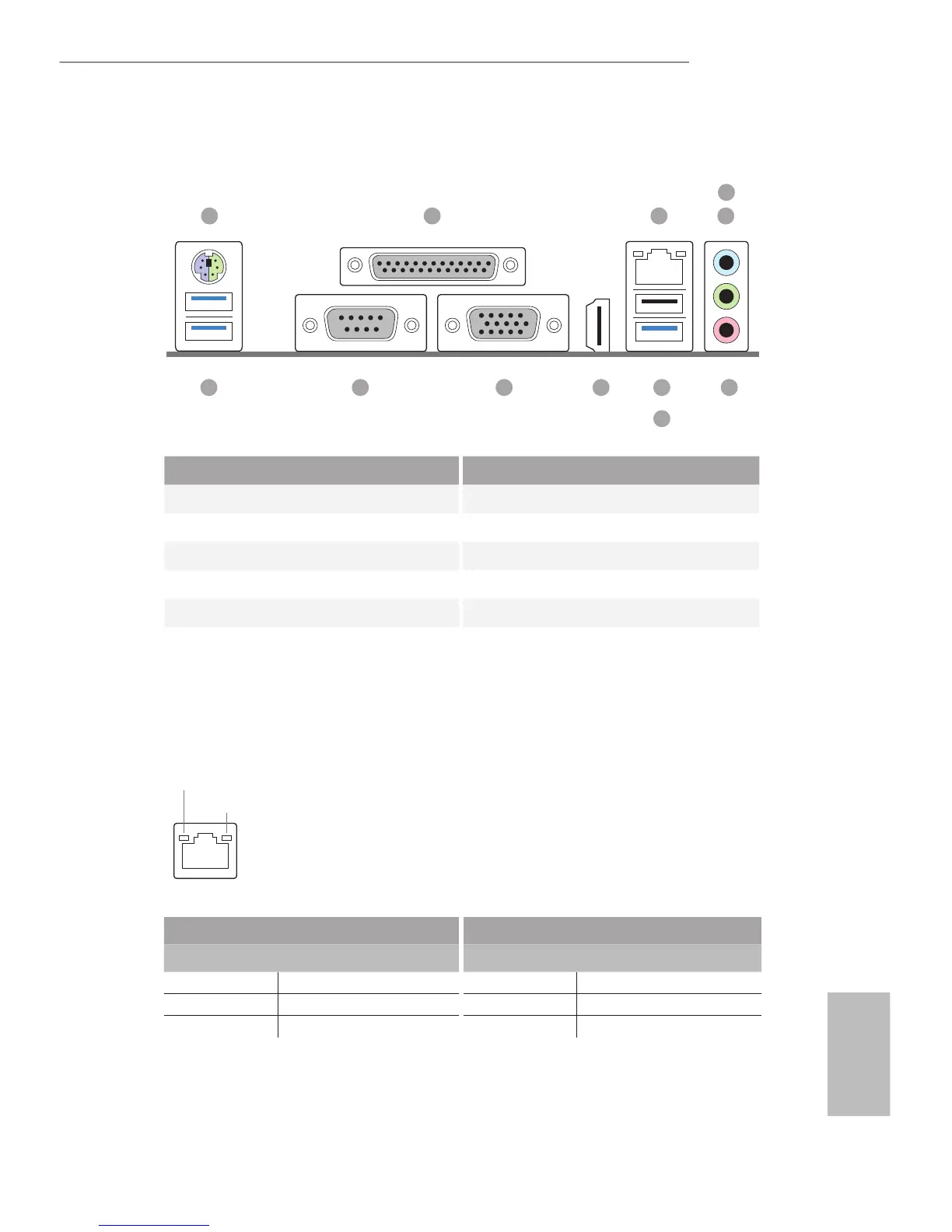

1.4 I/O Panel
No. Description No. Description
1 PS/2 Mouse/Keyboard Port 7 USB 2.0 Port (USB3_3)
2 Parallel Port 8 USB 3.1 Gen1 Port (USB3_4)
3 LAN RJ-45 Port* 9 HDMI Port
4 Line In (Light Blue)** 10 D-Sub Port
5 Front Speaker (Lime)** 11 COM Port
6 Microphone (Pink)** 12 USB 3.1 Gen1 Ports (USB3_1_2)
79
1 2 3 5
6
8
11 1012
4
