ASROCK J4105B-ITX User Manual

15
English
J4105B-ITX
J4005B-ITX

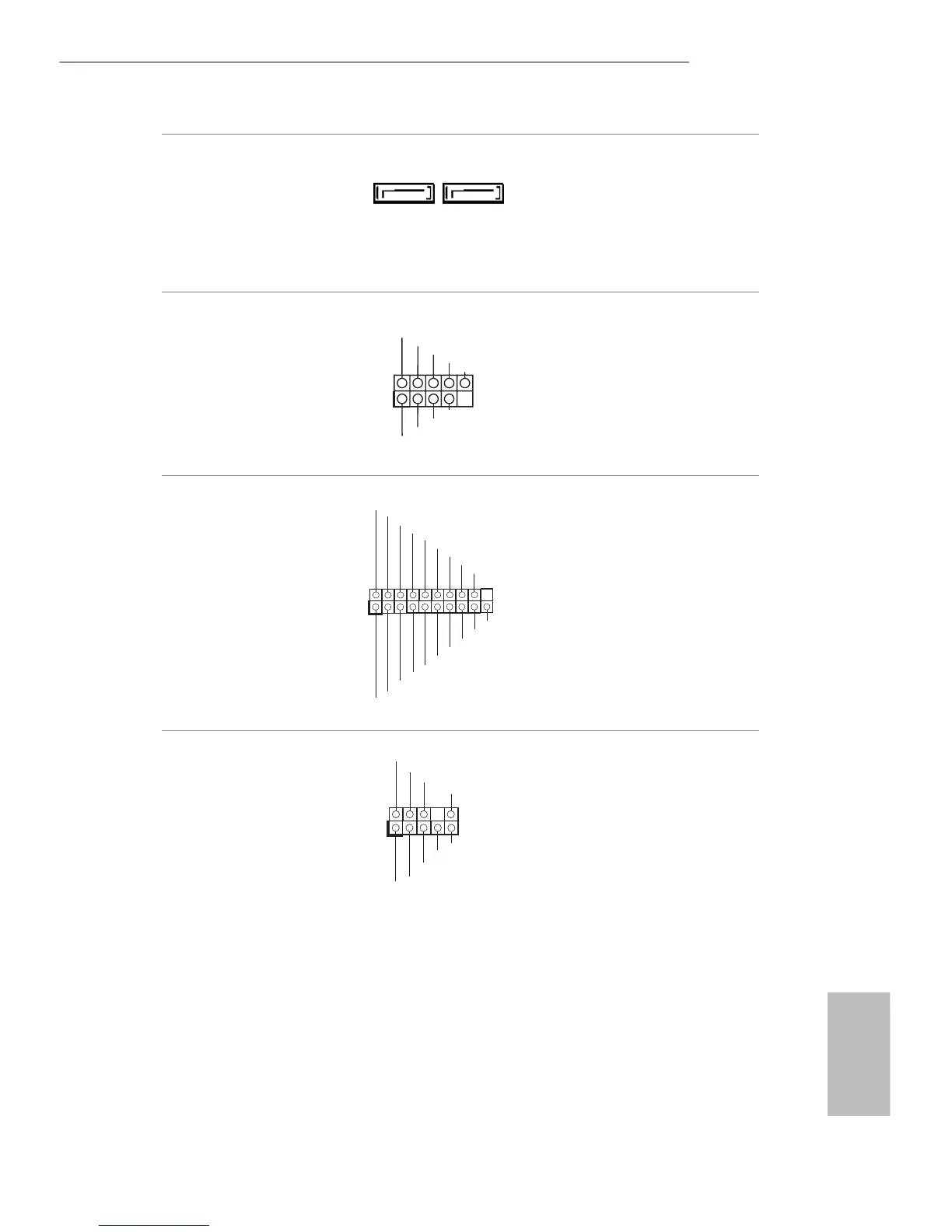

Serial ATA3 Connectors
(SATA3_1:
see p.5, No. 12)
(SATA3_2:
see p.5, No. 13)
ese two SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
USB 2.0 Headers
(9-pin USB2_3)
(see p.5, No. 11)
(9-pin USB4_5)
(see p.5, No. 9)
ere are two headers
on this motherboard.
Each USB 2.0 header can
support two ports.
USB 3.1 Gen1 Header
(19-pin USB3_1_2)
(see p.5, No. 10)
ere is one header on
this motherboard. is
USB 3.1 Gen1 header can
support two ports.
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.5, No. 14)
is header is for
connecting audio devices
to the front audio panel.
J_SENSE
OUT2_L
1
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
1
I D
I n tA_P_D+
I n tA_P_D-
G N D
I n tA_P_SSTX+
I n tA_P_SSTX-
G N D
I n tA_P_SSRX+
Vbus
I n tA_P_D+
I n tA_P_D-
G N D
I n tA_P_SSTX+
I n tA_P_SSTX-
G N D
I n tA_P_SSRX+
IntA_P_SSRX-
V b us
IntA_P_SSRX-
SATA3_2 SATA3_1

ASROCK J4105B-ITX Specifications

General

Audio chip	Realtek ALC887
Certification	FCC, CE, ErP/EuP
Component for	PC
Motherboard chipset	-
PC health monitoring	CPU, FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Motherboard chipset family	Intel
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64
Cables included	SATA
Drivers included	Yes
Processor family	Intel® Celeron®
eSATA ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 2.0 connectors	2
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
Graphics card	UHD Graphics 600
OpenGL version	4.3
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	128 Mbit
System Management BIOS (SMBIOS) version	3.0
Memory channels	Dual-channel
Memory slots type	SO-DIMM
Supported memory types	DDR4-SDRAM
Maximum internal memory	8 GB
Supported memory clock speeds	2133, 2400 MHz
Processor cores	4
Processor model	J4105
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	170 mm
