ASROCK Jupiter H310 - Rear Panel

8 9
English
H310D4-P1

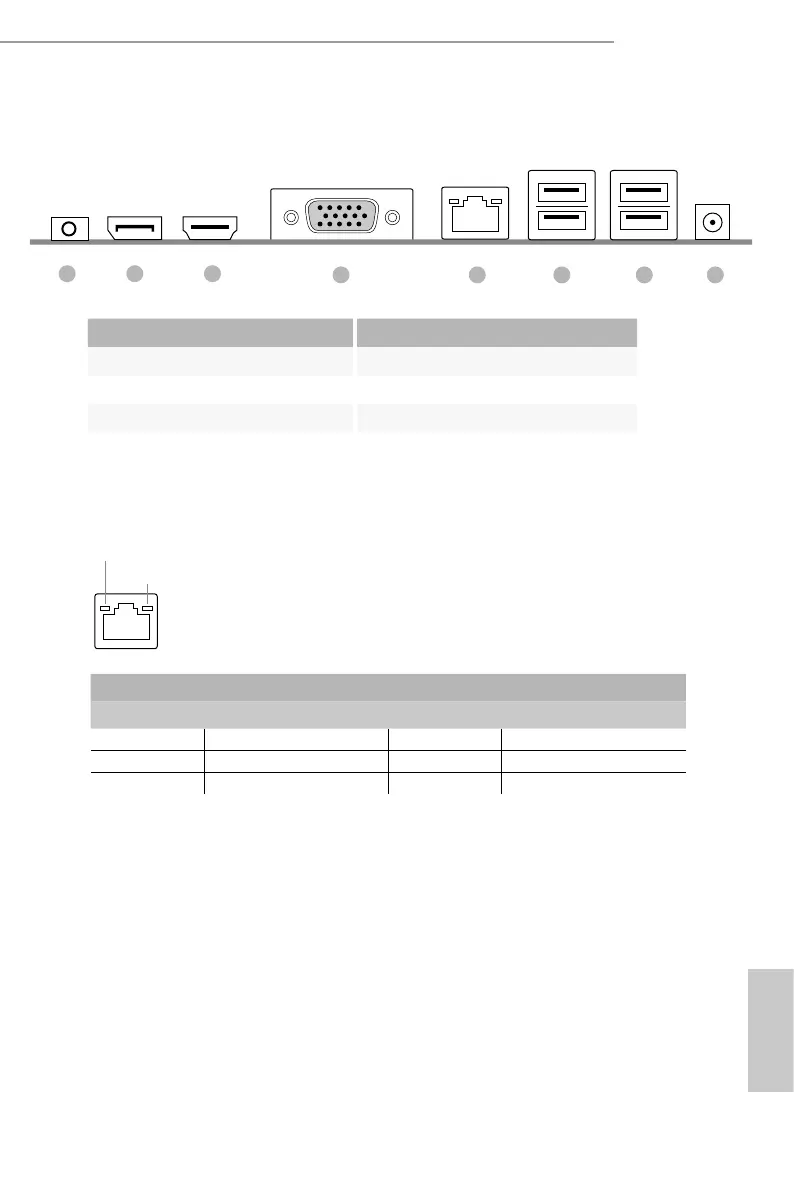

1.5 Rear Panel
No. Description No. Description
1 Headphone Jack 5 LAN RJ-45 Port*
2 Display Port 6 USB 2.0 Ports (USB_4_5)
3 HDMI Port 7 USB 2.0 Ports (USB_6_7)
4 D-Sub Port 8 DC Jack
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Green 100Mbps connection
On Link Orange 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
1 2 3
4 5 6 7 8
