ASROCK Jupiter H310 - Page 23

18 19
English

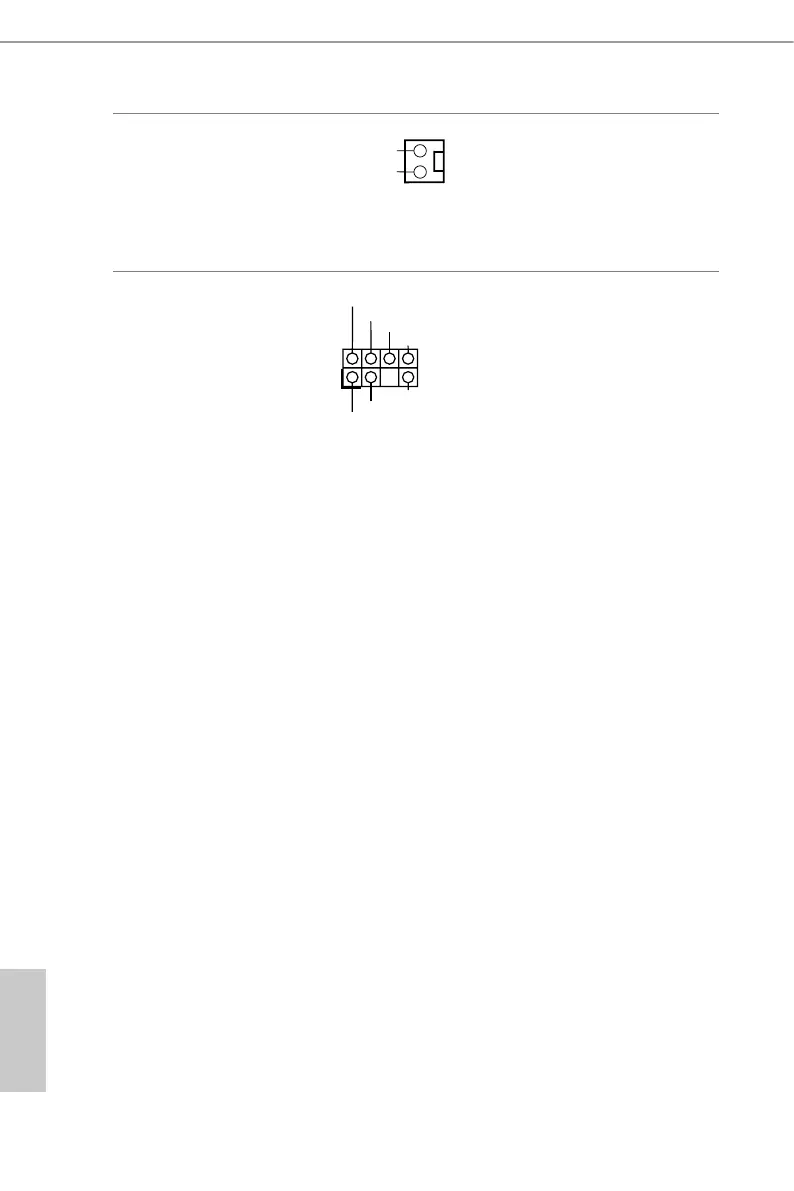

2.5W Audio Amp Output
Header
(2-pin MONO1)
(see p.6, No. 4)
Please connect the chassis
speaker to this header.
ROM Recovery
Header
(7-pin ROM_R)
(see p.6, No. 6)
is ROM Recovery Connector
allows qualied technicians to
reload rmware into the SPI boot
ash in case there is problem with
the data.
MONO_OUT
+
MONO_OUT
-
1
2
SPI_CS0#
SPI_MOSI
SPI_CS#_R
SPI_MISO
SPI_CLK
+3P3VSB
GND
1
