ASROCK N100DC-ITX User Manual

12

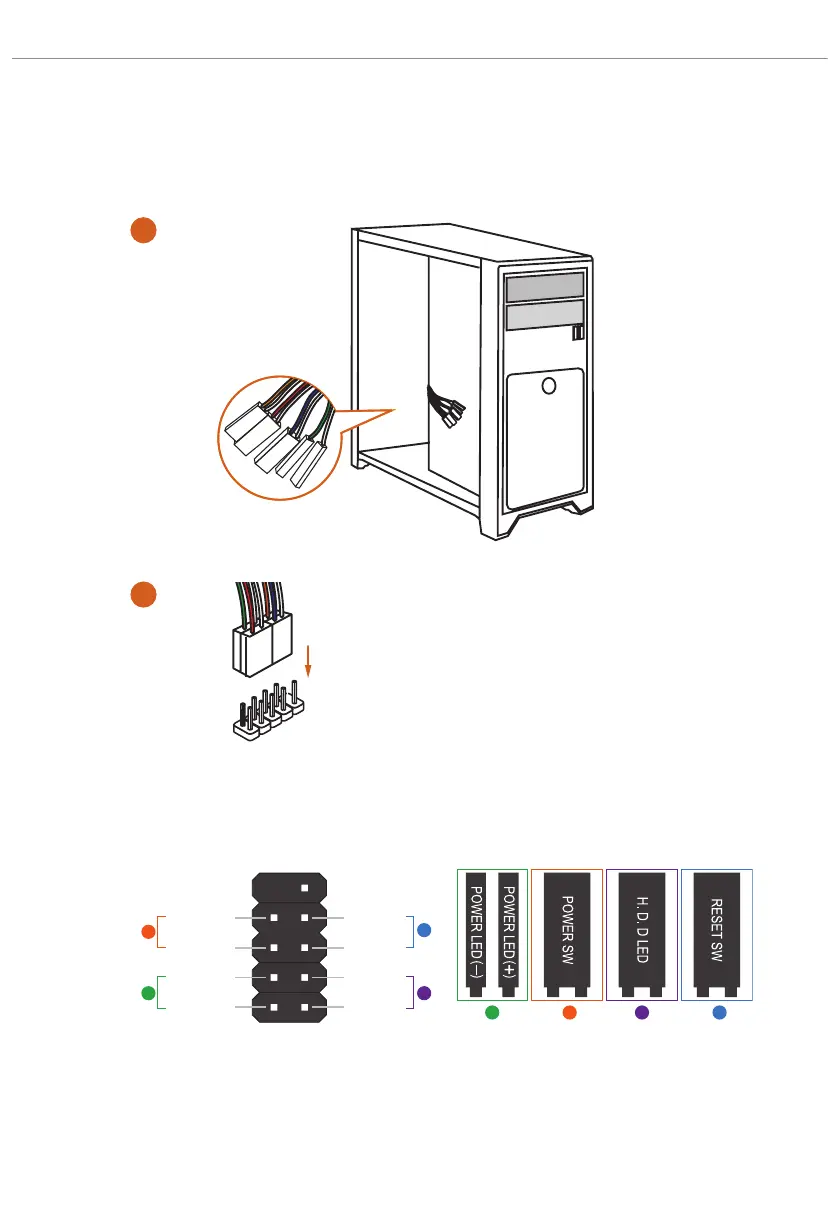

2.2 Connecting the Front Panel Header
ABC D
1
2
32:(56:
5(6(76:
32:(5/('
32:(5/('
+''/('
3$1(/
Power SW (-) RESET SW (+)
HDD LED (-)
HDD LED (+)
12
910
RESET SW (-)Power SW (+)
Power LED (-)
Power LED (+)
A
B
C
D
PANEL1
HDD LED
RESET SW
System Panel Header
Front Panel Wires

ASROCK N100DC-ITX Specifications

General

Form Factor	Mini-ITX
Memory Slots	2 x SO-DIMM
Audio	Realtek ALC897 Audio Codec
USB Ports	4 x USB 3.2 Gen1, 2 x USB 2.0
Expansion Slots	1 x PCIe 3.0 x16
Video Outputs	1 x HDMI, 1 x DisplayPort
Processor	Intel Processor N100 Series
Maximum Memory	32GB
Storage Interface	1 x M.2
Graphics	Intel UHD Graphics
Network	1 x Gigabit LAN
Power Supply	19V DC-in
