ASROCK N100DC-ITX User Manual

6

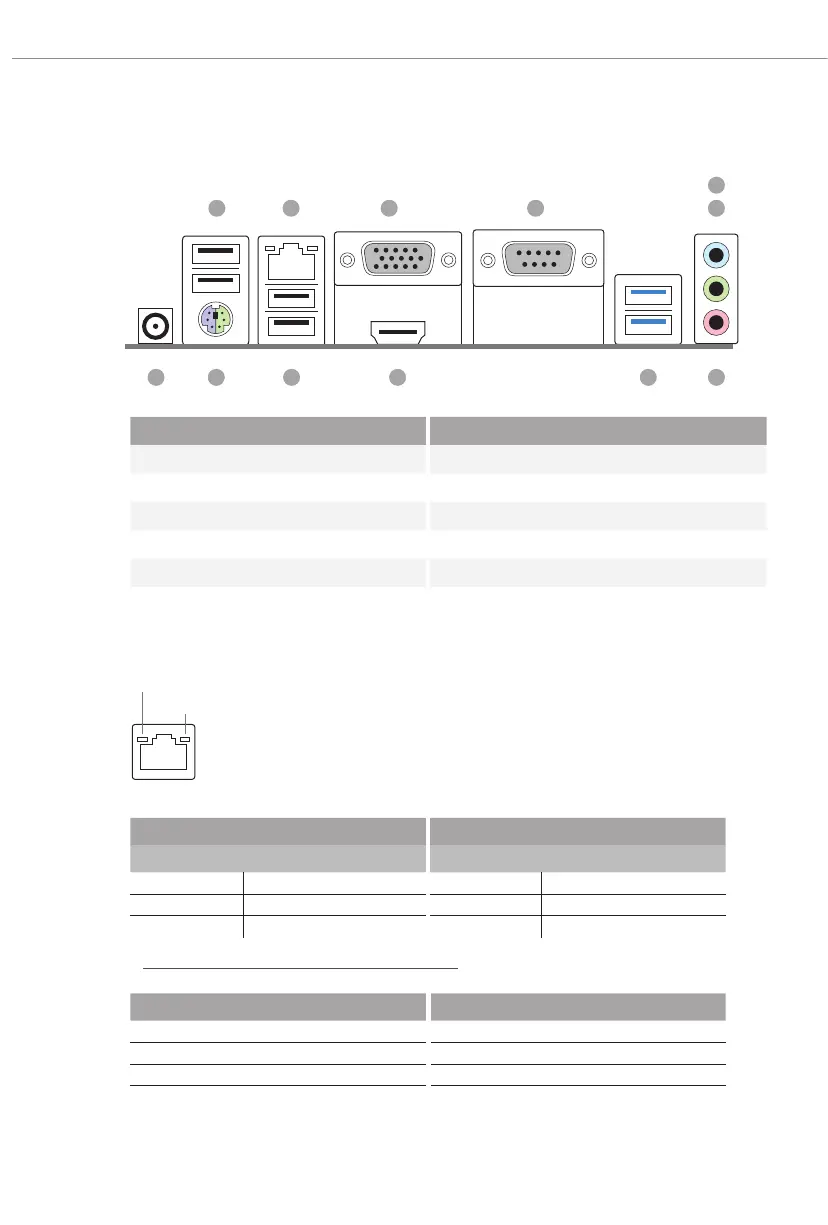

1.4 I/O Panel
No. Description No. Description
1 USB 2.0 Ports (USB_12) 7 Microphone (Pink)**
2 LAN RJ-45 Port* 8 USB 3.2 Gen1 Type-A Ports (USB3_12)
3 D-Sub Port 9 HDMI Port
4 COM Port 10 USB 2.0 Ports (USB_34)
5 Line In (Light Blue)** 11 PS/2 Mouse/Keyboard Port
6 Front Speaker (Lime)** 12 DC Jack***
* ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
** Function of the Audio Ports in 7.1-channel Conguration:
Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out
ACT/LINK LED
SPEED LED
LAN Port
1
11
7
6
5
89
2
10
3
4
12

ASROCK N100DC-ITX Specifications

General

Form Factor	Mini-ITX
Memory Slots	2 x SO-DIMM
Audio	Realtek ALC897 Audio Codec
USB Ports	4 x USB 3.2 Gen1, 2 x USB 2.0
Expansion Slots	1 x PCIe 3.0 x16
Video Outputs	1 x HDMI, 1 x DisplayPort
Processor	Intel Processor N100 Series
Maximum Memory	32GB
Storage Interface	1 x M.2
Graphics	Intel UHD Graphics
Network	1 x Gigabit LAN
Power Supply	19V DC-in
