ASROCK N100DC-ITX User Manual

26

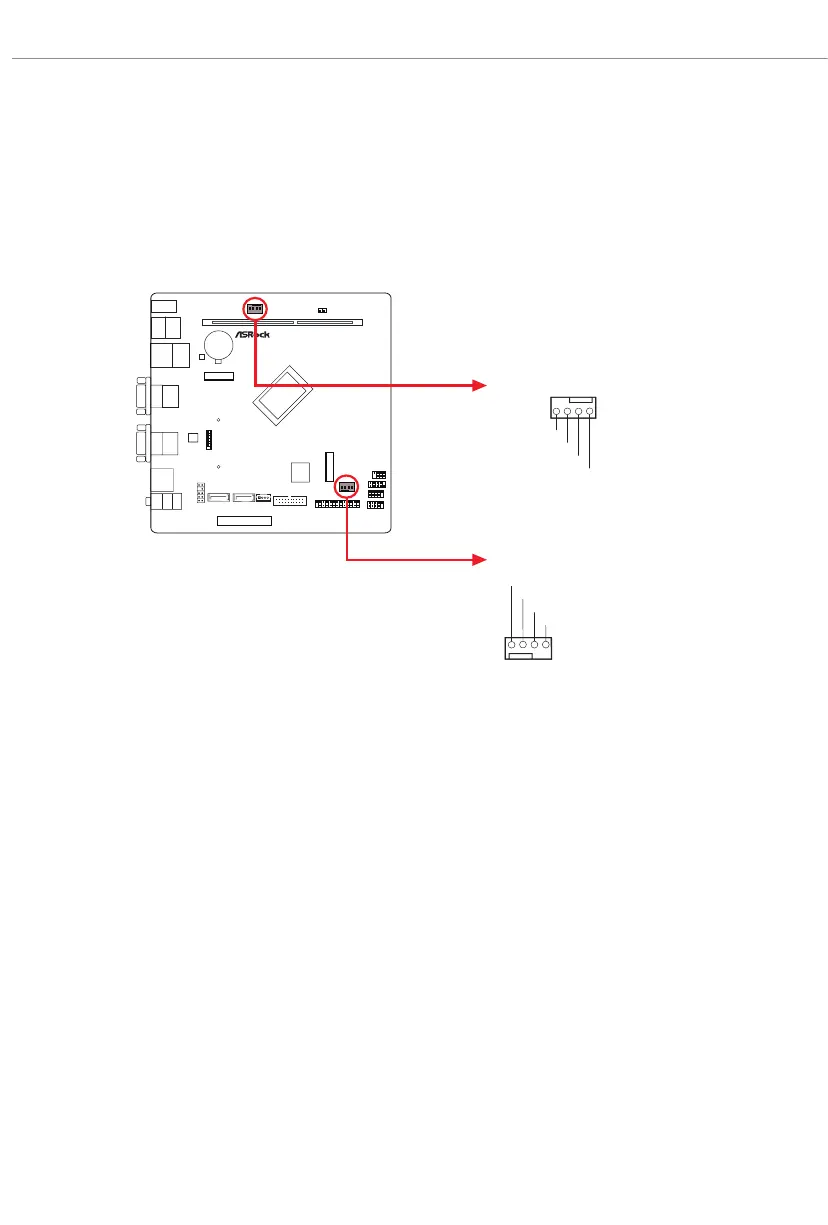

Chassis Fan Connectors
(4-pin CHA_FAN1) (see p.4, No. 1)
(4-pin CHA_FAN2) (see p.4, No. 4)
Please connect fan cable to the fan connector and match the black wire to the
ground pin.
N100DC-ITX
CHA_FAN1
GN
D
+12V
FAN_SPEED
FAN_SPEED_CONTROL
4 3 2 1
CHA_FAN2
GND
+12V
CHA_FAN_SPEED
F
AN_SPEED_CONTRO
L
1 2 3 4

ASROCK N100DC-ITX Specifications

General

Form Factor	Mini-ITX
Memory Slots	2 x SO-DIMM
Audio	Realtek ALC897 Audio Codec
USB Ports	4 x USB 3.2 Gen1, 2 x USB 2.0
Expansion Slots	1 x PCIe 3.0 x16
Video Outputs	1 x HDMI, 1 x DisplayPort
Processor	Intel Processor N100 Series
Maximum Memory	32GB
Storage Interface	1 x M.2
Graphics	Intel UHD Graphics
Network	1 x Gigabit LAN
Power Supply	19V DC-in
