ASROCK N68C-S User Manual

2727
2727
27

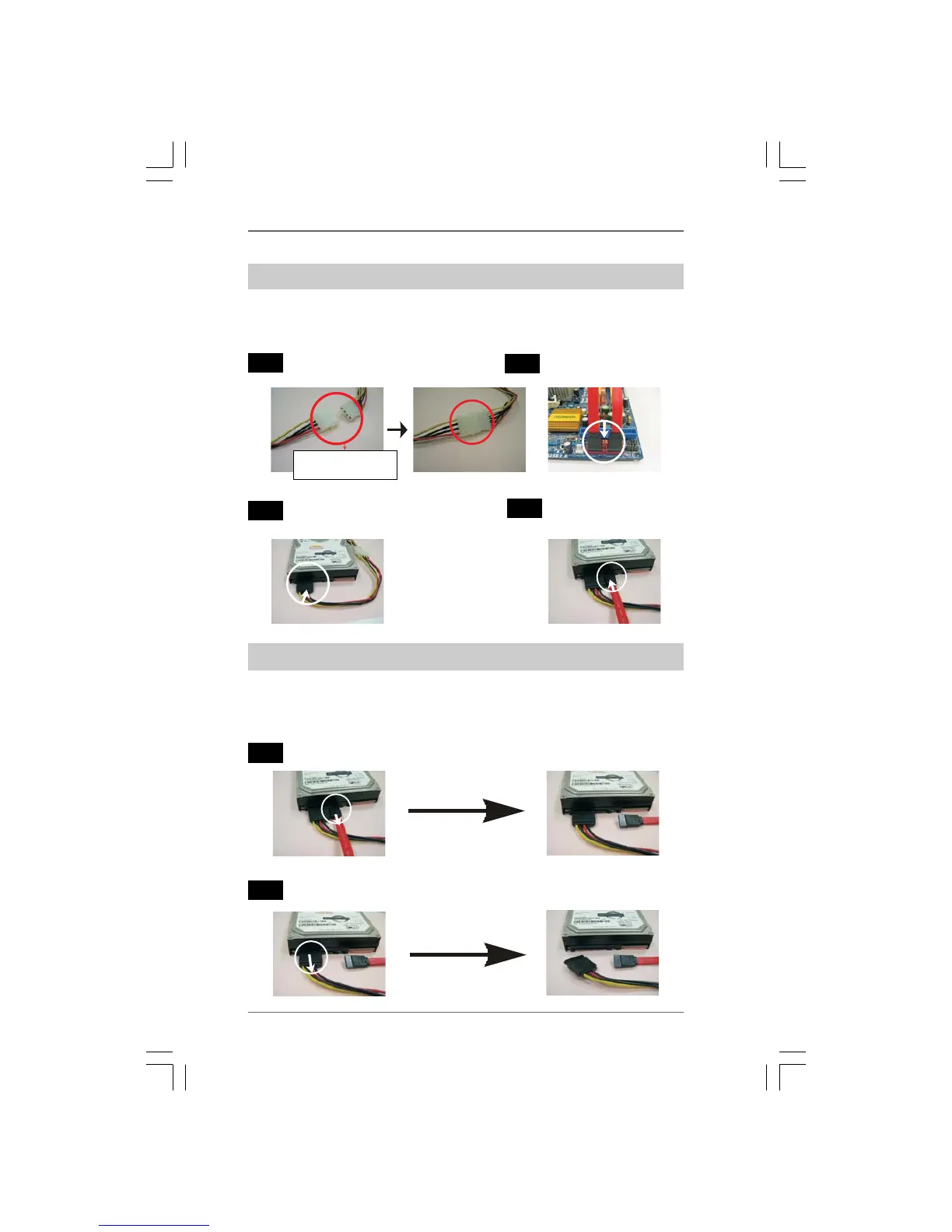

How to Hot Plug a SATA / SATAII HDD:
Points of attention, before you process the Hot Plug:
Please do follow below instruction sequence to process the Hot Plug, improper
procedure will cause the SATA / SATAII HDD damage and data loss.
Connect SATA data cable to
the motherboard’s SATAII connector.
Connect SATA 15-pin power cable connector
(Black) end to SATA / SATAII HDD.
Connect SATA data cable to
the SATA / SATAII HDD.
How to Hot Unplug a SATA / SATAII HDD:
Points of attention, before you process the Hot Unplug:
Please do follow below instruction sequence to process the Hot Unplug, improper
procedure will cause the SATA / SATAII HDD damage and data loss.
Please connect SATA power cable 1x4-pin end
(White) to the power supply 1x4-pin cable.
Step 1
Step 2
Step 3
Step 4
Step 2
SATA power cable 1x4-pin
power connector (White)
Unplug SATA data cable from SATA / SATAII HDD side.
Unplug SATA 15-pin power cable connector (Black) from SATA / SATAII HDD side.
Step 1

ASROCK N68C-S Specifications

General

Non-ECC	Yes
Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	Socket AM3
Processor manufacturer	AMD
USB 2.0 connectors	3
Number of Parallel ATA connectors	1
PS/2 ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Certification	FCC, CE, WHQL
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows 7, Vista, XP
Graphics card	GeForce 7025
Maximum graphics card memory	256 MB
RAID levels	0, 1, 0+1
Networking features	10/100 Mbps
ACPI version	1.1
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	208 mm
Width	244 mm
