ASROCK N68C-S User Manual

4545
4545
45

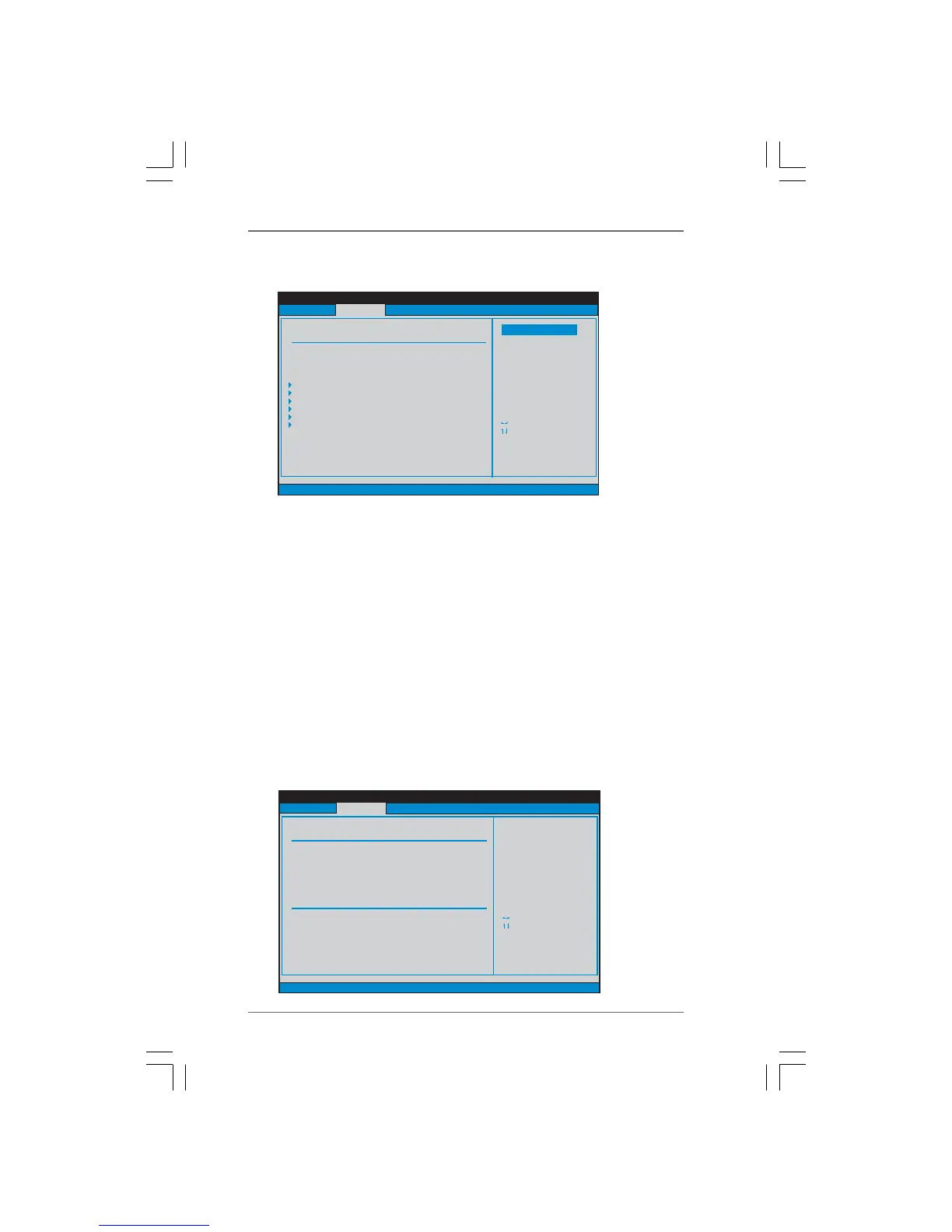

BIOS SETUP UTILITY
Storage Configuration
v02.54 (C) Copyright 1985-2003, American Megatrends, Inc.
Advanced
Onboard IDE Controller
Onboard SATA Controller
SATA Operation Mode
IDE1 Master
IDE1 Slave
SATAII_1
SATAII_2
SATAII_3
SATAII_4
[Enabled]
[Enabled]
[IDE]
[Hard Disk]
[Not Detected]
[Not Detected]
[Not Detected]
[Not Detected]
[Not Detected]
Select Screen
Select Item
+- Change Option
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit
Select Screen
Select Item
+- Change Option
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit
Disabled
Enabled
Options
3.4.43.4.4
3.4.43.4.4
3.4.4
Storage ConfigurationStorage Configuration
Storage ConfigurationStorage Configuration
Storage Configuration
OnBoard IDE Controller
Use this item to enable or disable the “OnBoard IDE Controller” feature.
Onboard SATA Controller
Use this item to enable or disable the “Onboard SATA Controller” feature.
SATA Operation Mode
Use this item to adjust SATA Operation Mode. The default value of this option
is [IDE]. If you want to operate RAID function on SATA / SATAII HDDs, please
select [RAID]. Configuration options: [IDE] and [RAID].
* If you select [RAID] mode, SATA / SATAII HDDs can not be accessed until you finish
configuring RAID functions in NVIDIA BIOS / Windows RAID Utility.
* If you install OS on SATA / SATAII HDDs, please do not change the setting of this
item after OS installation.
IDE Device Configuration
You may set the IDE configuration for the device that you specify. We will use
the “IDE1 Master” as the example in the following instruction, which can be
applied to the configurations of “IDE1 Slave” as well.
BIOS SETUP UTILITY
IDE Master
Select the type
of device connected
to the system.
Select Screen
Select Item
+- Change Option
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit
v02.54 (C) Copyright 1985-2003, American Megatrends, Inc.
Advanced
Type
LBA/Large Mode
Block (Multi-Sector Transfer)
PIO Mode
DMA Mode
S.M.A.R.T.
32Bit Data Transfer
[Auto]
[Auto]
[Auto]
[Auto]
[Auto]
[Disabled]
[Disabled]
Device
Vendor
Size
LBA Mode
Block Mode
PIO Mode
Async DMA
Ultra DMA
S.M.A.R.T.
:Hard Disk
:MAXTOR 6L080J4
:80.0 GB
:Supported
:16Sectors
:4
:MultiWord DMA-2
:Ultra DMA-6
:Supported

ASROCK N68C-S Specifications

General

Non-ECC	Yes
Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	Socket AM3
Processor manufacturer	AMD
USB 2.0 connectors	3
Number of Parallel ATA connectors	1
PS/2 ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Certification	FCC, CE, WHQL
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows 7, Vista, XP
Graphics card	GeForce 7025
Maximum graphics card memory	256 MB
RAID levels	0, 1, 0+1
Networking features	10/100 Mbps
ACPI version	1.1
BIOS memory size	64 Mbit
