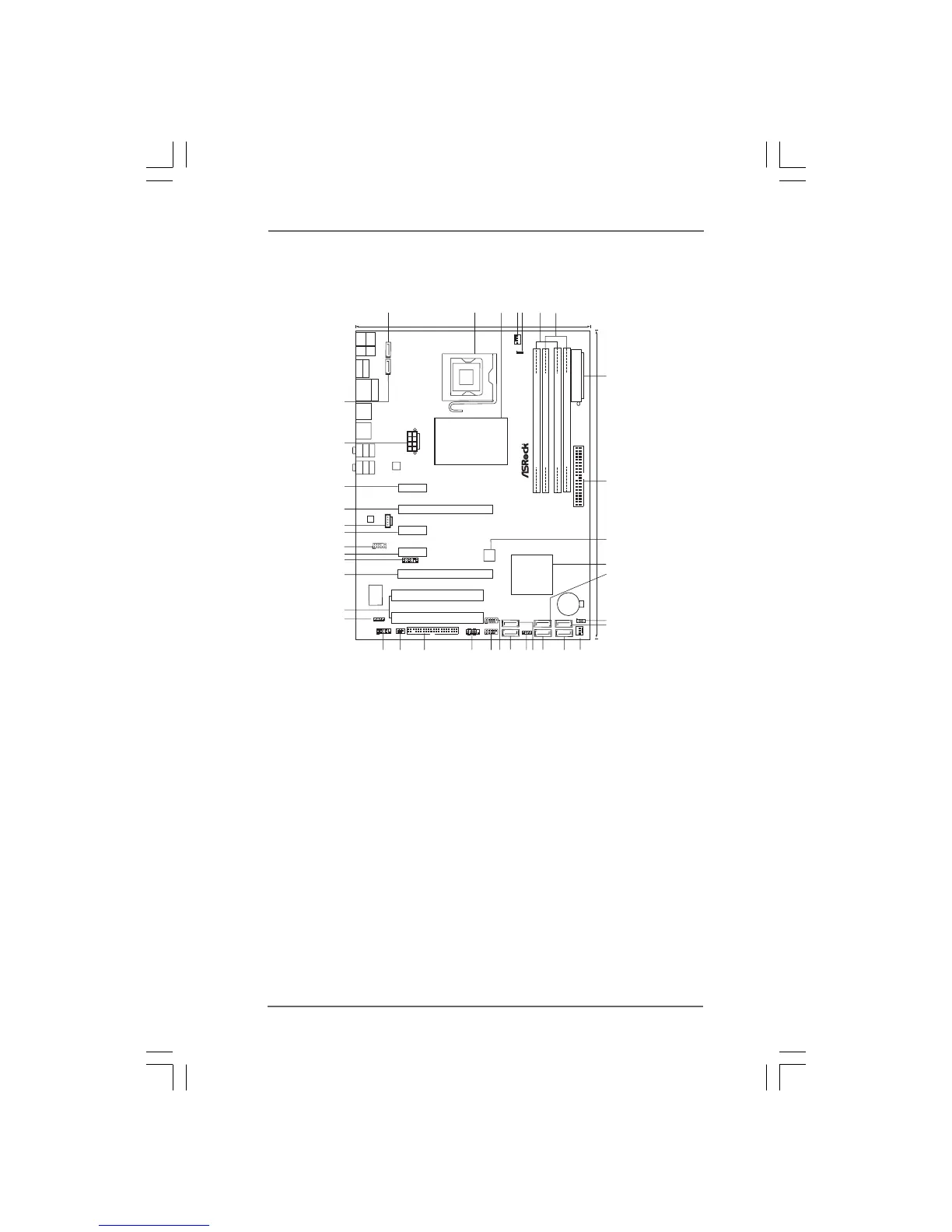

1.4 Motherboard Layout (P45XE)1.4 Motherboard Layout (P45XE)
1.4 Motherboard Layout (P45XE)1.4 Motherboard Layout (P45XE)
1.4 Motherboard Layout (P45XE)
Intel
P45
Chipset
Intel
ICH10
ATXPWR1
CD1
ATX12V1
1
PS2_USB_PWR1
Super
I/O
8Mb
BIOS
AUDIO
CODEC
PCIE3
CPU_FAN1
CMOS
Battery
IDE1
CLRCMOS1
1
CHA_FAN1
FLOPPY1
1
HD_AUDIO1
HDLED RESET
PLED PWRBTN
SPEAKER1
1
PANEL1
1
30.5cm (12.0 in)
22.4cm (8.8 in)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
23
24 22
16
17
18
19
20
21
25
26
27
28
29
30
DDRII_A1 (64bit, 240-pin module)
DDRII_A2 (64bit, 240-pin module)
1
HDMI_SPDIF1
IR1
1
Top:
SIDE SPK
Center:
REAR SPK
Bottom:
CTR BASS
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
PCI1
PCI2
USB8_9
11
SATAII_4(Port 3)
eSATAII_BOTTOM(Port 5)
PS2
Mouse
PS2
Keyboard
USB 2.0
T: U SB 0
B: USB1
Top:
RJ-45
33
34
35
36
37
38
eSATAII_TOP(Port 4)
PCI Express 2.0
Coaxial SPDIF
Optical SPDIF
Center:
ESATAII_TOP
Bottom:
ESATAII_BOTTOM
USB 2.0
T: U SB 2
B: USB3
COM1
1
USB/WIFI
1
SATAII_2(Port 1)
SATAII_3(Port 2)
SATAII_1(Port 0)
LAN
PHY
USB6_7
11
DDRII_B1 (64bit, 240-pin module)
DDRII_B2 (64bit, 240-pin module)
SATAII_6(Port 5)
SATAII_5(Port 4)
PCIE2
PCIE1
PCIE4
PCIE5
RoHS
FSB2000
DDR2 1200
Dual Channel
USB 2.0
T: U SB 4
B: USB5
32
31
P45XE
1 eSATAII Connector 21 USB 2.0 Header (USB8_9, Blue)
(eSATAII_BOTTOM (Port 5), Orange) 22 USB 2.0 Header (USB6_7, Blue)
2 775-Pin CPU Socket 23 System Panel Header (PANEL1, Orange)
3 North Bridge Controller 24 Floppy Connector (FLOPPY1)
4 CPU Fan Connector (CPU_FAN1) 25 Infrared Module Header (IR1)
5 PS2_USB_PWR1 Jumper 26 COM Port Header (COM1)
6 2 x 240-pin DDR2 DIMM Slots 27 HDMI_SPDIF Header
(Dual Channel A: DDRII_A1, DDRII_B1; Yellow) (HDMI_SPDIF1, Yellow)
7 2 x 240-pin DDR2 DIMM Slots 28 PCI Slots (PCI1 - 2)
(Dual Channel B: DDRII_A2, DDRII_B2; Orange) 29 PCI Express 2.0 x16 Slot (PCIE5, Blue)
8 ATX Power Connector (ATXPWR1) 30 USB/WiFi Header (USB/WIFI, Yellow)
9 IDE1 Connector (IDE1, Blue) 31 PCI Express x1 Slot (PCIE4)
10 SPI BIOS Chip 32 Front Panel Audio Header
11 South Bridge Controller (HD_AUDIO1, Lime)
12 SATAII Connector (SATAII_4 (Port3), Red) 33 PCI Express x1 Slot (PCIE3)
13 Clear CMOS Jumper (CLRCMOS1) 34 Internal Audio Connector: CD1 (Black)
14 SATAII Connector (SATAII_2 (Port1), Red) 35 PCI Express 2.0 x16 Slot (PCIE2, Green)
15 Chassis Fan Connector (CHA_FAN1) 36 PCI Express x1 Slot (PCIE1)
16 SATAII Connector (SATAII_1 (Port0), Red) 37 ATX 12V Connector (ATX12V1)
17 SATAII Connector (SATAII_3 (Port2), Red) 38 eSATAII Connector
18 SATAII Connector (SATAII_6 (Port5), Orange) (eSATAII_TOP (Port 4), Orange)
19 Chassis Speaker Header (SPEAKER 1)
20 SATAII Connector (SATAII_5 (Port4), Orange)
