ASROCK P45XE - Onboard Headers and Connectors

2929
2929
29
FLOPPY1
Pin1
the red-striped side to
Pin1

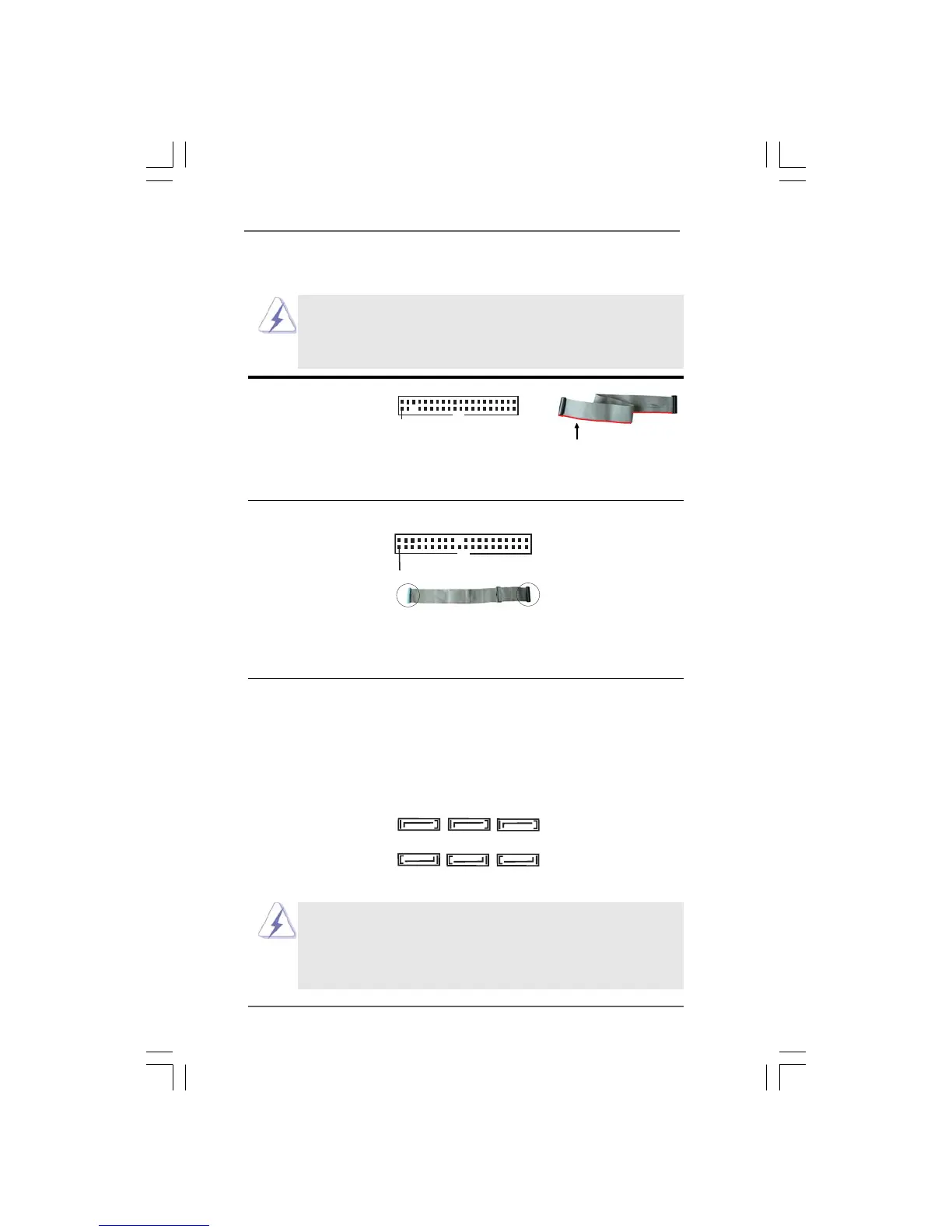

2.10 Onboard Headers and Connectors2.10 Onboard Headers and Connectors
2.10 Onboard Headers and Connectors2.10 Onboard Headers and Connectors
2.10 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper
caps over the headers and connectors will cause permanent dam-
age of the motherboard!
FDD connector
(33-pin FLOPPY1)
(see p.11 No. 25 or p.12 No. 24)
Note: Make sure the red-striped side of the cable is plugged into Pin1 side of the
connector.
Primary IDE connector (Blue)
(39-pin IDE1, see p.11/12 No. 9)
Note: Please refer to the instruction of your IDE device vendor for the details.
Serial ATAII Connectors These six Serial ATAII (SATAII)
(SATAII_1 (Port 0): connectors support SATA data
see p.11, No. 17 or p.12, No. 16) cables for internal storage
(SATAII_2 (Port 1): devices. The current SATAII
see p.11, No. 15 or p.12, No. 14) interface allows up to 3.0 Gb/s
(SATAII_3 (Port 2): data transfer rate.
see p.11, No. 18 or p.12, No. 17)
(SATAII_4 (Port 3):
see p.11, No. 13 or p.12, No. 12)
(SATAII_5 (Port 4):
see p.11, No. 21 or p.12, No. 20)
(SATAII_6 (Port 5):
see p.11, No. 19 or p.12, No. 18)
SATAII_5 (Port 4) and SATAII_6 (Port 5) connectors can be used for
internal storage device or be connected to eSATAII connectors to
support eSATAII device. Please read “eSATAII Interface Introduction”
on page 36 for details about eSATAII and eSATAII installation
procedures.
connect the black end
to the IDE devices
connect the blue end
to the motherboard
IDE1
PIN1
80-conductor ATA 66/100/133 cable
SATAII_5 SATAII_3 SATAII_1
(Port 4) (Port 2) (Port 0)
SATAII_6 SATAII_4 SATAII_2
(Port 5) (Port 3) (Port 1)
