ASROCK P45XE - Asrock Duallan_Spdif I;O (P45 XE-Wifin)

1313
1313
13
1.5 ASR1.5 ASR
1.5 ASR1.5 ASR
1.5 ASR
ock DualLock DualL
ock DualLock DualL
ock DualL
AN_SPDIF I/O (P45XE-AN_SPDIF I/O (P45XE-
AN_SPDIF I/O (P45XE-AN_SPDIF I/O (P45XE-
AN_SPDIF I/O (P45XE-
WW
WW
W
iFiF
iFiF
iF
iN)iN)
iN)iN)
iN)
To enable Multi-Streaming function, you need to connect a front panel audio cable to the front
panel audio header. After restarting your computer, you will find “Mixer” tool on your system.
Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click
“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA
Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek
HDA Audio 2nd output” to use front panel audio.
** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.
See the table below for connection details in accordance with the type of speaker you use.
TABLE for Audio Output Connection
Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker
(No. 10) (No. 7) (No. 8) (No. 6)
2 V -- -- --
4 V -- -- V
6V--VV
8VVVV
1
2
43
5
6
7
8
9
10
11
12
13
14
15
17
18
16

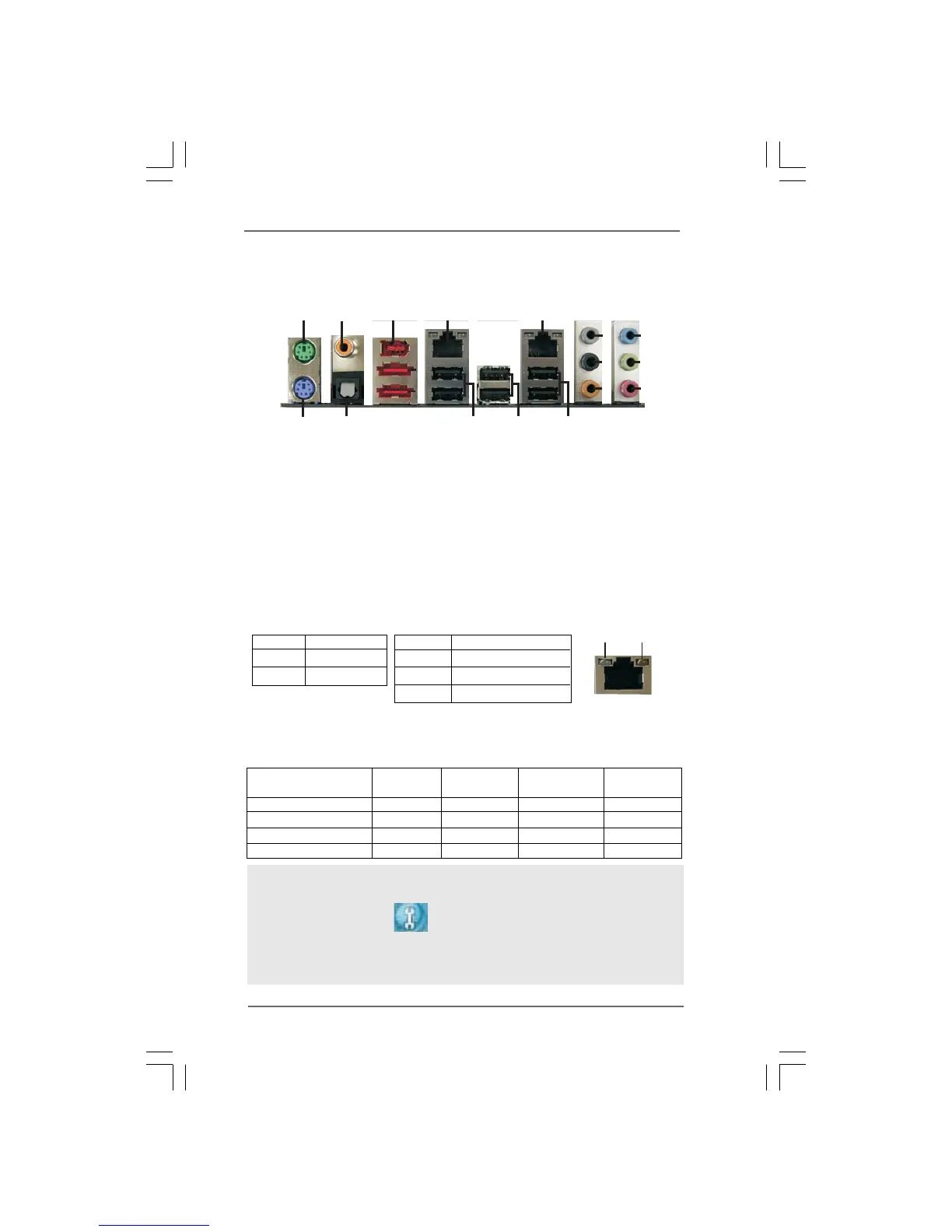

1 PS/2 Mouse Port (Green) ** 10 Front Speaker (Lime)
2 Coaxial SPDIF Out Port 11 Microphone (Pink)
3 IEEE 1394 Port 12 USB 2.0 Ports (USB45)
* 4 LAN RJ-45 Port (LAN1) 13 USB 2.0 Ports (USB23)
* 5 LAN RJ-45 Port (LAN2) 14 USB 2.0 Ports (USB01)
6 Side Speaker (Gray) 15 eSATAII Port (eSATAII_TOP)
7 Rear Speaker (Black) 16 eSATAII Port (eSATAII_BOTTOM)
8 Central / Bass (Orange) 17 Optical SPDIF Out Port
9 Line In (Light Blue) 18 PS/2 Keyboard Port (Purple)
LAN Port
ACT/LINK
LED
SPEED
LED
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Activity Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
Green 1Gbps connection
