A620I Lightning WiFi

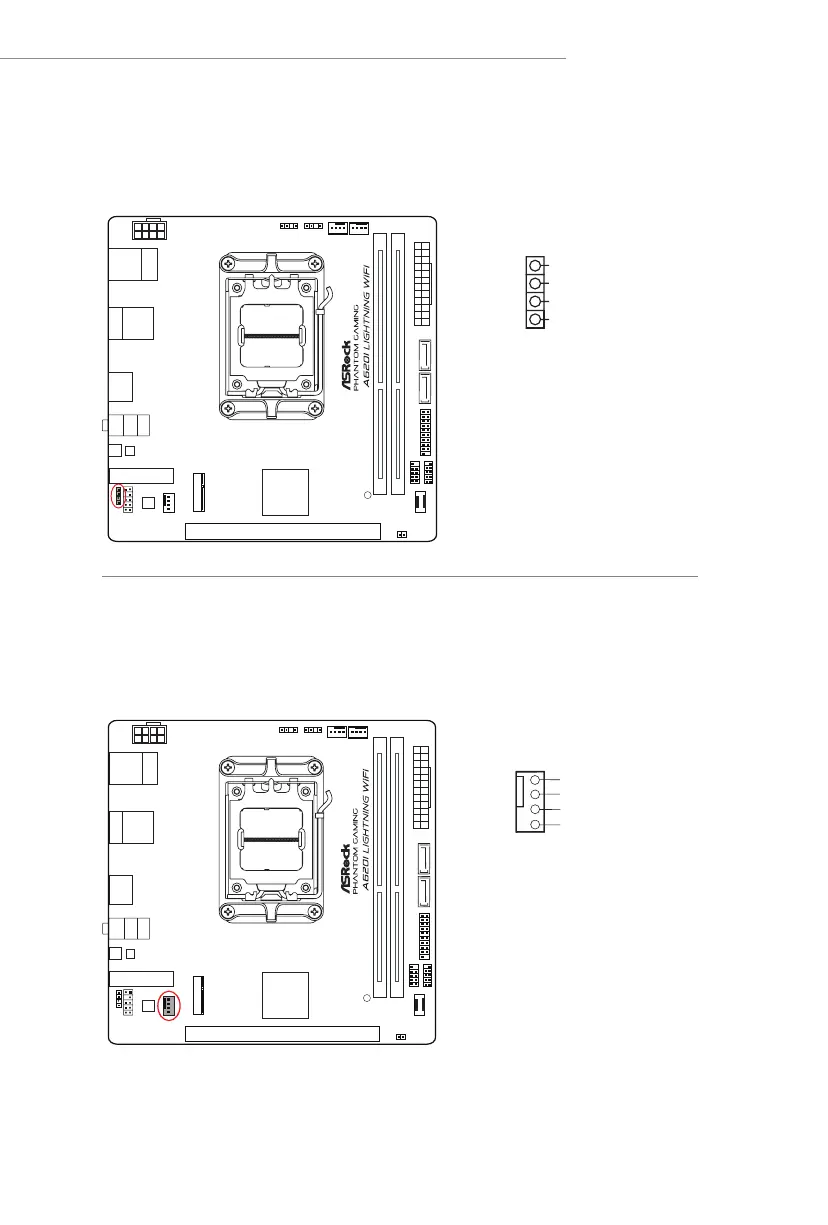

Chassis Speaker Header
(4-pin SPEAKER1) (see p.6, No. 17)
Please connect the chassis speaker to this header.
Chassis/Water Pump Fan Connector
(4-pin CHA_FAN1/WP) (see p.6, No. 15)
is motherboard provides a 4-Pin water cooling chassis fan connectors. If you
plan to connect a 3-Pin chassis water cooler fan, please connect it to Pin 1-3.
CHA_FAN1/WP
GND
FAN_VOLTAGE
CHA_FAN_SPEED
FAN_SPEED_CONTR
OL
1
2
3
4
SPEAKER1
DUMMY
SPEAKER
1
DUMMY
+5V
