42

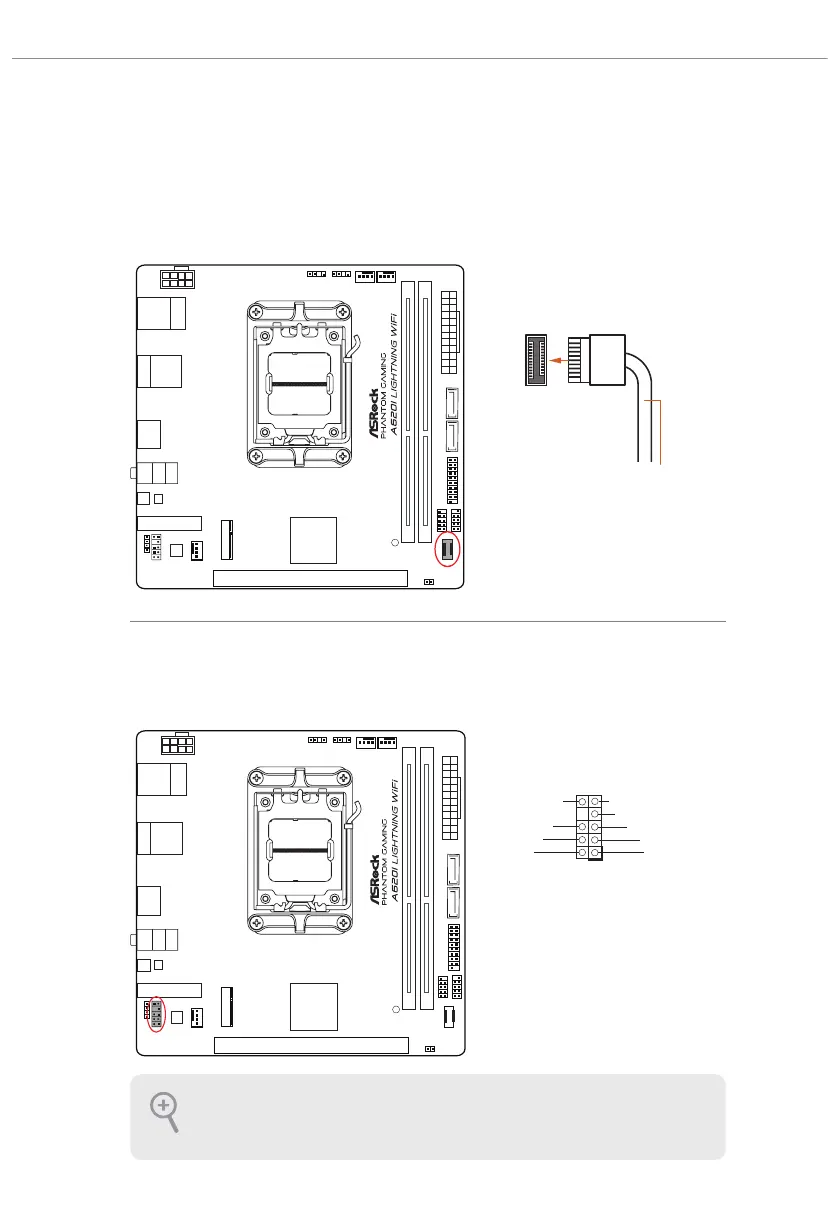

Front Panel Type C USB 3.2 Gen1 Header
(20-pin USB32_TC2) (see p.6, No. 13)
ere is one Front Panel Type C USB 3.2 Gen1 Header on this motherboard. is
header is used for connecting a USB 3.2 Gen1 module for additional USB 3.2
Gen1 ports.
Front Panel Audio Header
(9-pin HD_AUDIO1) (see p.6, No. 16)
is header is for connecting audio devices to the front audio panel.
USB32_TC2
HD_AUDIO1
J_SENSE
OUT2_L
1
MIC_RED
OUT_RET
OUT2_R
MIC2_R
GND
High Denition Audio supports Jack Sensing, but the panel wire on the chassis must
support HDA to function correctly. Please follow the instructions in our manual and
chassis manual to install your system.
USB Type-C Cable
To Next Page
