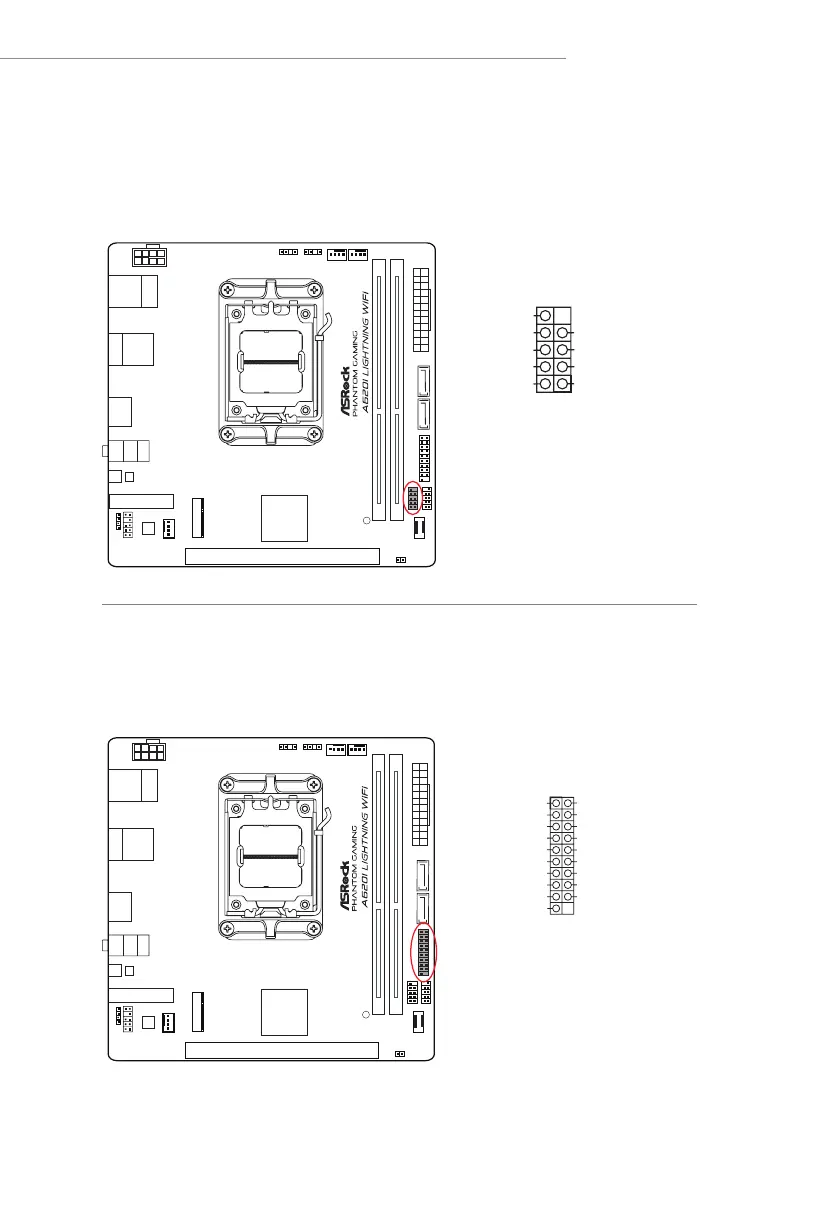

USB 2.0 Header
(9-pin USB_5_6) (see p.6, No. 12)
ere is one header on this motherboard. is USB 2.0 header can support two
ports.
USB 3.2 Gen1 Header
(19-pin USB32_4_5) (see p.6, No. 10)
ere is one header on this motherboard. is USB 3.2 Gen1 header can support
two ports.
USB32_4_5
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
VbusV
VbusV
IntA_PA_SSRX-
IntA_P
A_SSRX+
GND
IntA_PA_SSTX-
IntA_P
A_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
USB_5_6
DUMMY
GNDGND
P+
P-
P+
P-
USB_PW
R
USB_PW
R
1
