ASROCK PRO BTC+ Series User Manual

X370 Pro BTC+
9
English

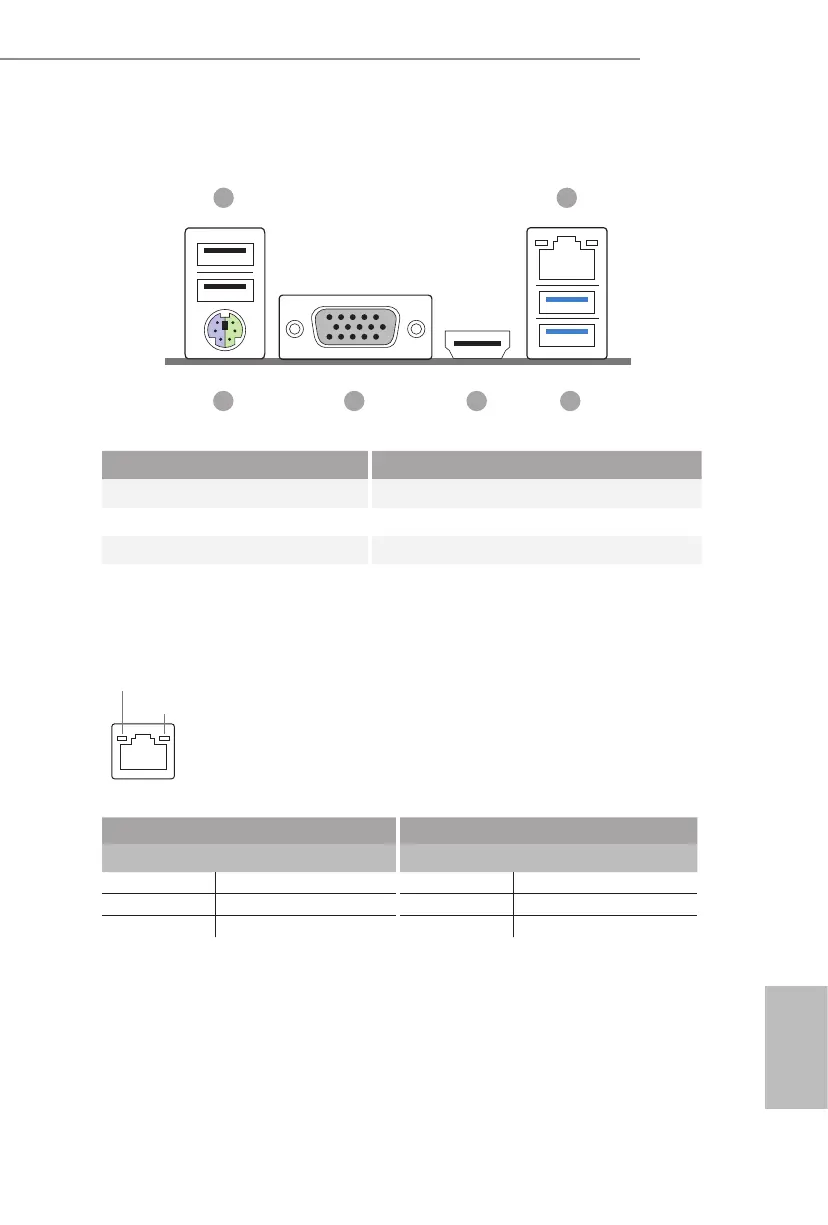

1.4 I/O Panel
No. Description No. Description
1 USB 2.0 Ports (USB_1_2) 4 HDMI Port
2 LAN RJ-45 Port* 5 D-Sub Port
3 USB 3.1 Gen1 Ports (USB3_12) 6 PS/2 Mouse/Keyboard Port
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
1
5 36
2
4

ASROCK PRO BTC+ Series Specifications

General

Form Factor	ATX
CPU Socket	LGA 1151
Maximum Memory	32GB
Memory Slots	4
Storage Interface	6 x SATA3
USB Ports	6 x USB 2.0
LAN	1 x Gigabit LAN
Audio	7.1 CH HD Audio
M.2	1 x M.2
