ASROCK PRO BTC+ Series User Manual

X370 Pro BTC+
31
English

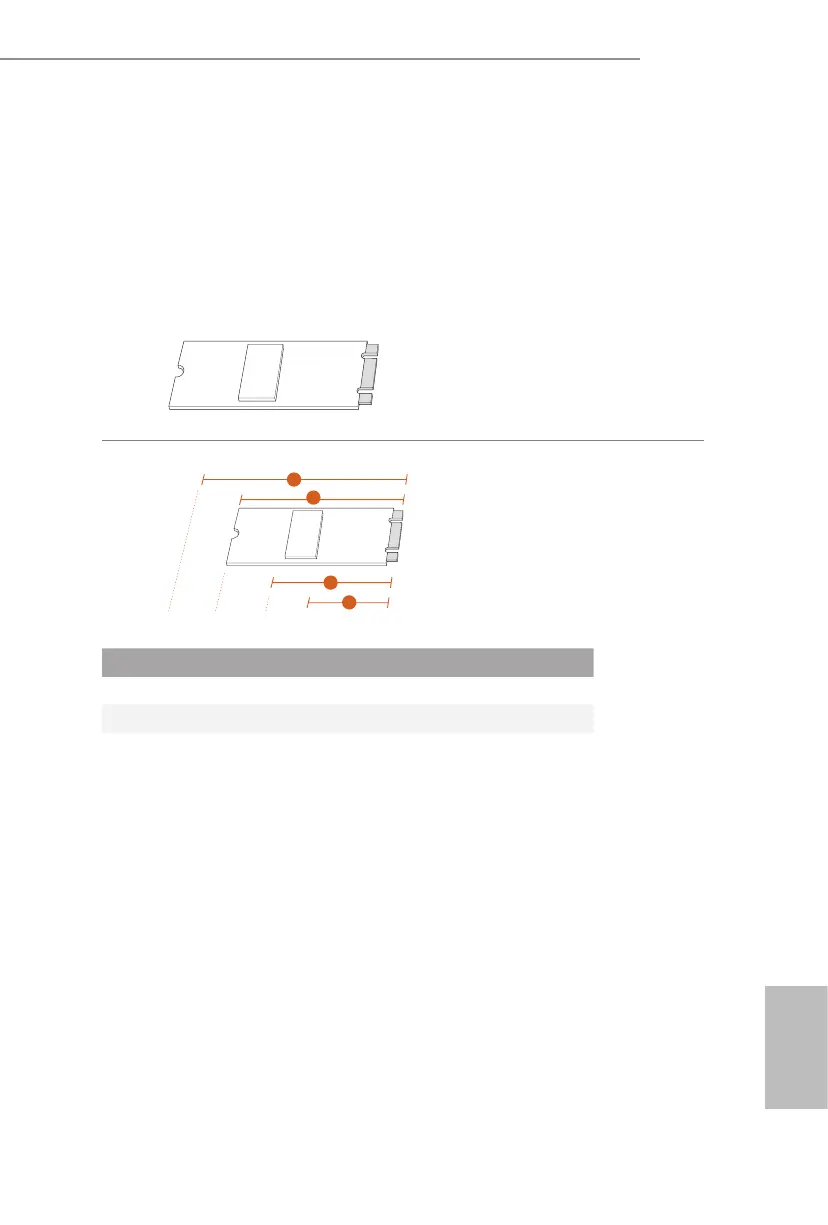

2.8 M.2_SSD (NGFF) Module Installation Guide
The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and
versatile card edge connector that aims to replace mPCIe and mSATA. e M.2 Socket
supports type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module.
Installing the M.2_SSD (NGFF) Module
Step 1
Prepare a M.2_SSD (NGFF) module
and the screw.
Step 2
Depending on the PCB type and
length of your M.2_SSD (NGFF)
module, nd the corresponding nut
location to be used.
No. 1 2 3 4
Nut Location A B C D
PCB Length 3cm 4.2cm 6cm 8cm
Module Type Type2230 Type 2242 Type2260 Type 2280
3
2
4
5
BCDE
A
1

ASROCK PRO BTC+ Series Specifications

General

Form Factor	ATX
CPU Socket	LGA 1151
Maximum Memory	32GB
Memory Slots	4
Storage Interface	6 x SATA3
USB Ports	6 x USB 2.0
LAN	1 x Gigabit LAN
Audio	7.1 CH HD Audio
M.2	1 x M.2
