X370 Pro BTC+
29
English

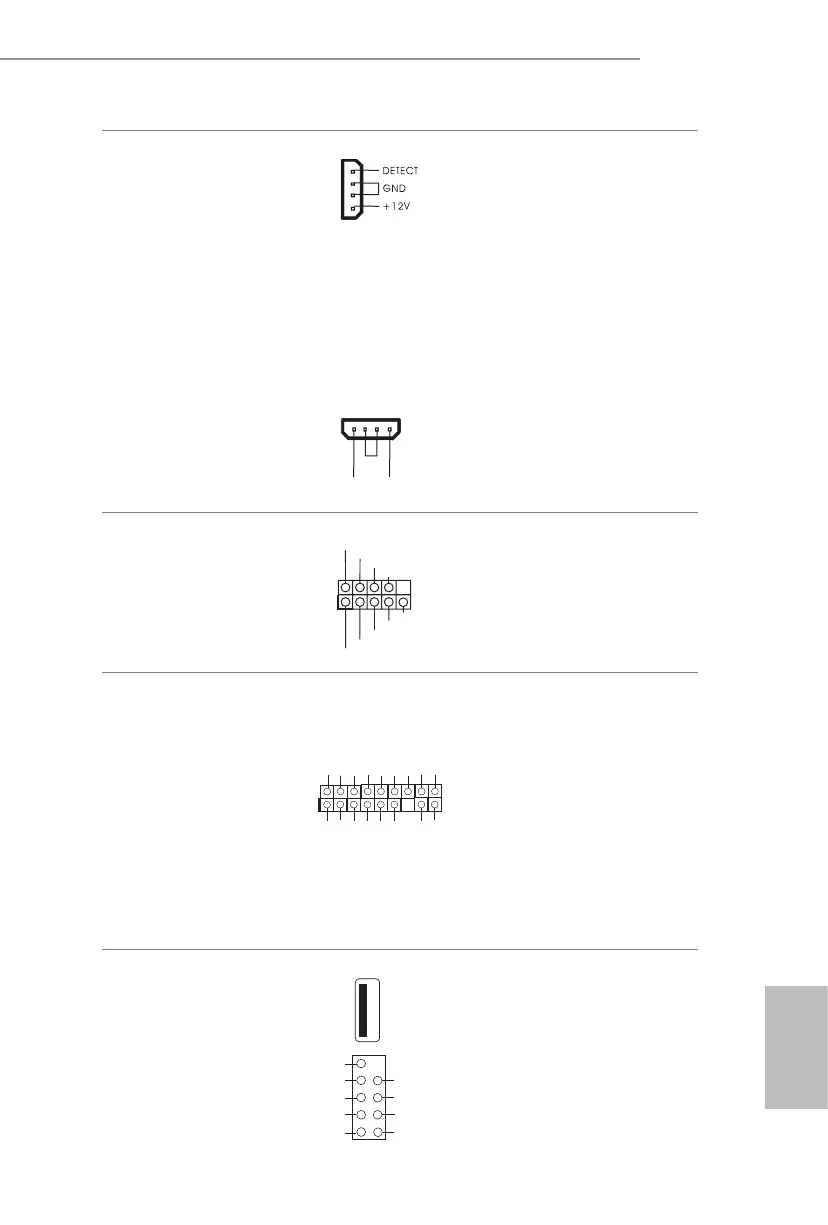

PCIe Power Connectors
(4-pin PCIE_PWR3)
(see p.6, No. 16)
(4-pin PCIE_PWR4)
(see p.6, No. 19)
(4-pin PCIE_PWR5)
(see p.6, No. 21)
(4-pin PCIE_PWR6)
(see p.6, No. 24)
(4-pin PCIE_PWR7)
(see p.6, No. 27)
(4-pin PCIE_PWR8)
(see p.6, No. 29)
Please connect these
connectors to the power
supplies.
Important: Make sure
the 4-pin PCIe power
connector and the
external power connector
on the graphics card are
connected to the same
PSU; otherwise, the
motherboard and the
graphics card may be
damaged.
Serial Port Header
(9-pin COM1)
(see p.6, No. 35)
is COM1 header
supports a serial port
module.
TPM Header
(17-pin TPMS1)
(see p.6, No. 32)
is connector supports
Trusted Platform Module
(TPM) system, which can
securely store keys, digital
certicates, passwords,
and data. A TPM system
also helps enhance
network security, protects
digital identities, and
ensures platform integrity.
Mining Ports
(M_Port1: see p.6, No. 15)
(M_Port2: see p.6, No. 17)
(M_Port3: see p.6, No. 20)
(M_Port4: see p.6, No. 22)
(M_Port5: see p.6, No. 25)
(M_Port6: see p.6, No. 28)
Please connect these ports
to the PCIe riser kits.
CC T S #1
RR TS#1
DD S R #1
DD T R #1
RR X D 1
GN D
TT X D 1
DD C D #1
1
RR I # 1
1
GN D
SM B_DATA _MAIN
LA D2
LA D1
GN D
S_ PWRDWN #
SE RIRQ#
GN D
PC ICLK
PC IRST#
LA D3
+3 V
LA D0
+3 VSB
GN D
FR AME
SM B_CLK_ MAIN
+12V DETECT
GND
1
2
3
4
8
7
6
5
9
WAK E #
CL KN
CL KP
RS T
PE TXN
PE RXN
PE RXP
GN D
PE TXP
