Assa Abloy 835C-50 User Manual

ASSA ABLOY motor locks installation guide
14
1 Setting up.
2 Set the function DIP switches on the lock case to the
desired settings.
3 Connect the lock.
4 Turn on power to the I/O Box 350
5 Set DIP switch 1 to the ON position. Set the other
DIP switches as shown in the table.
6 The green LED will start flashing when set-up begins.
7 The red LED will glow steadily when set-up is
complete.

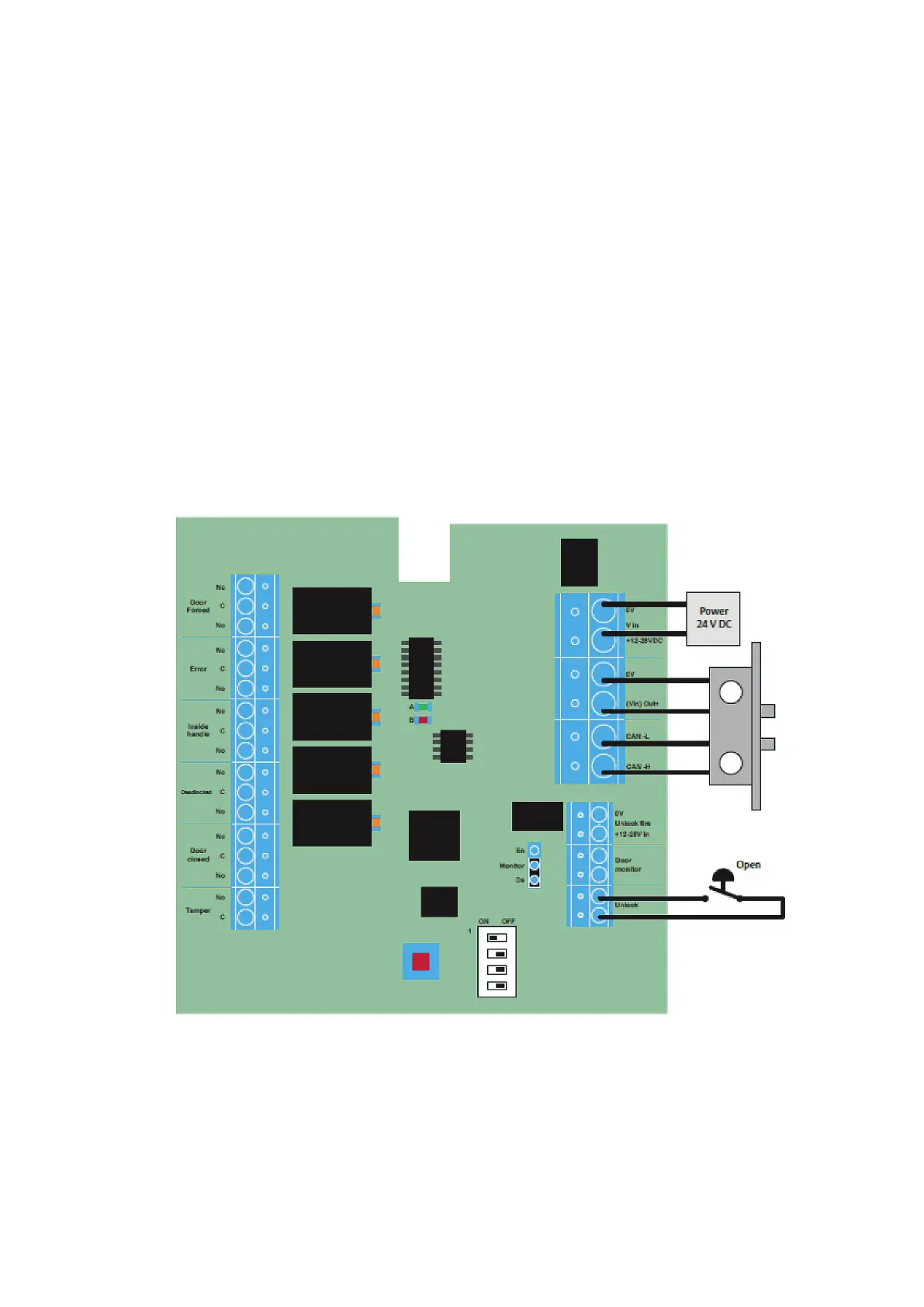

Connecting standalone with I/O Box

Assa Abloy 835C-50 Specifications

General

Brand	Assa Abloy
Model	835C-50
Category	Locks
Language	English
