ASSA ABLOY motor locks installation guide
6

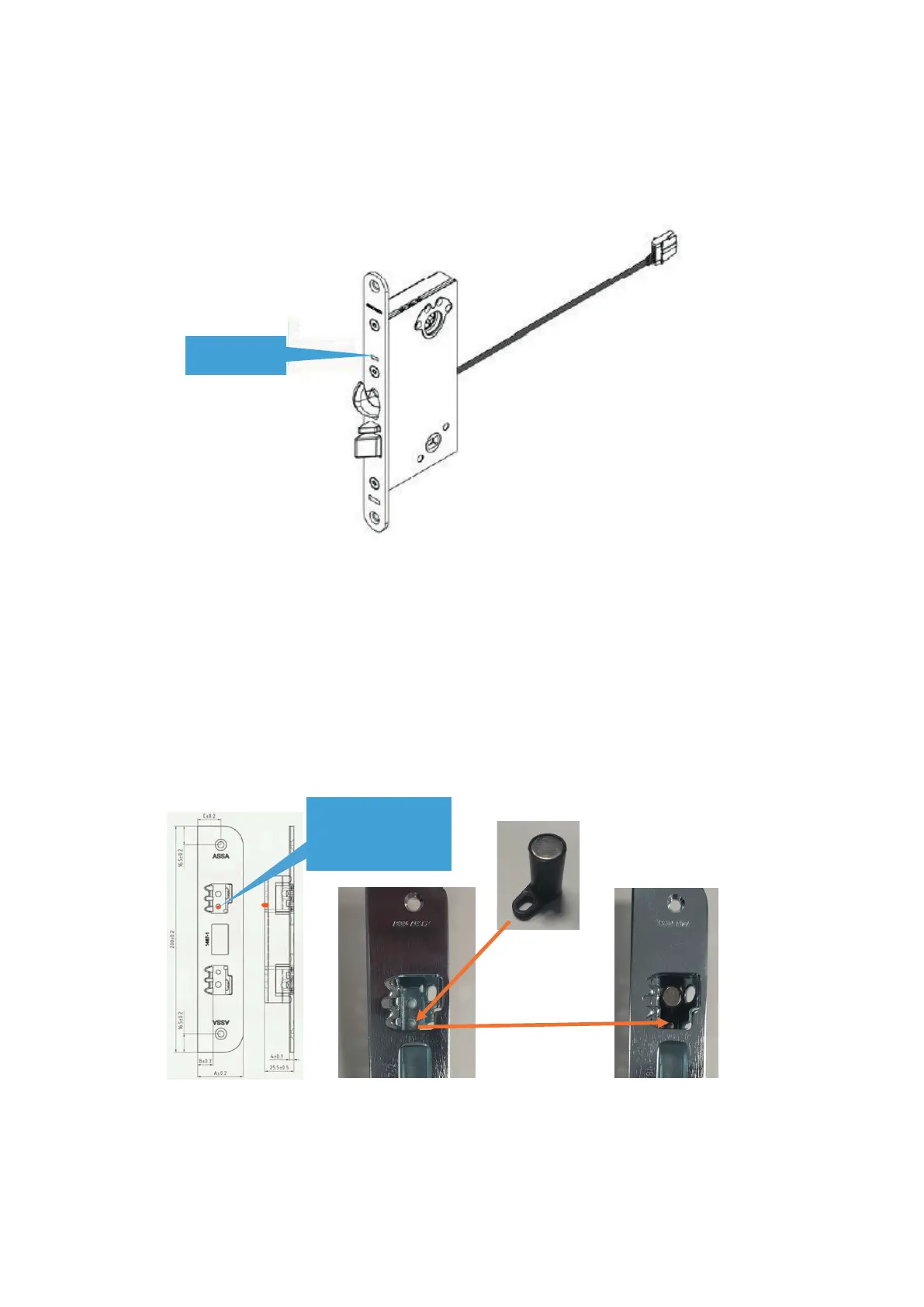

The sensor is located in-line with the datum mark on
the lock face plate.
Door position sensor
If using the internal door position sensor, fit the magnet
to the striking plate. The magnet should sit at the same
height as the datum mark on the lock face plate.
Magnet position
Door position sensor
The sensor is located in-line with the datum mark on the lock face plate.
Magnet position
If using the internal door position sensor, fit the magnet to the striking plate. The magnet should sit at the
same height as the datum mark on the lock face plate.
Affix with fixing screw in
top non-used cavity so
magnet is in-line with
door position switch
Affix with fixing screw in
top non-used cavity so
magnet is in-line with
door position switch
Location of door
position sensor
