Assa Abloy Aperio AH15 Installation Guide

8

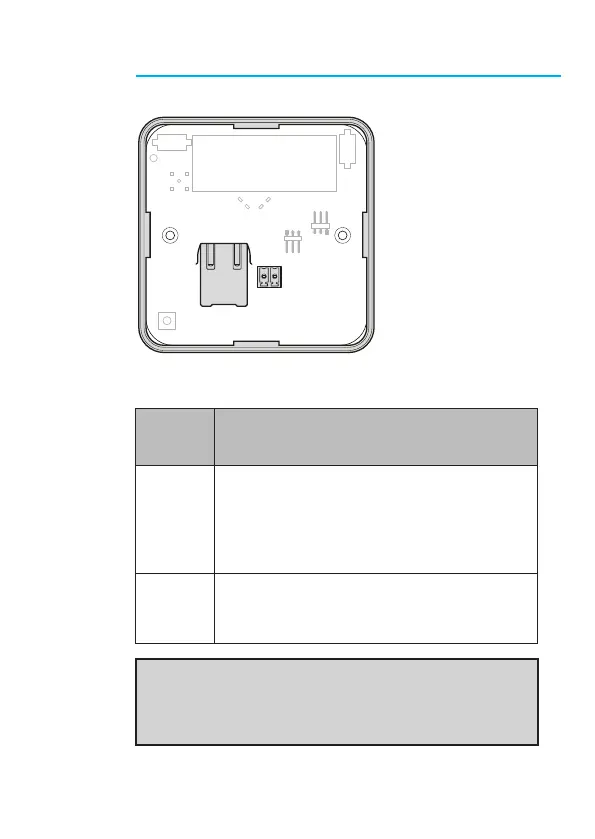

AH40 - Connectors
Note: When PoE (Power over Ethernet) is used, no power supply
should be connected to J800. The installation must comply with
national wiring regulations.
ConneCtors DesCription
J700
Ethernet connector. Connection to the Electronic Access
Control system through a 10BASE-T / 100BASE-TX Local
Area Network. Can also be used for power supply if
connected to a IEEE 802.3.af compliant Power Sourcing
Device (PSE). Wire requirements CAT5 or higher.
J800
Power supply input, 8-24 VDC, 1.2 W. The power supply
shall be 3 A over current protected. Wire requirements
16-22 AWG.
PAIR
J700
8-24V
- +
J800
EXT
J200
J400
INT
S100
