Assa Abloy Aperio AH15 Installation Guide

9

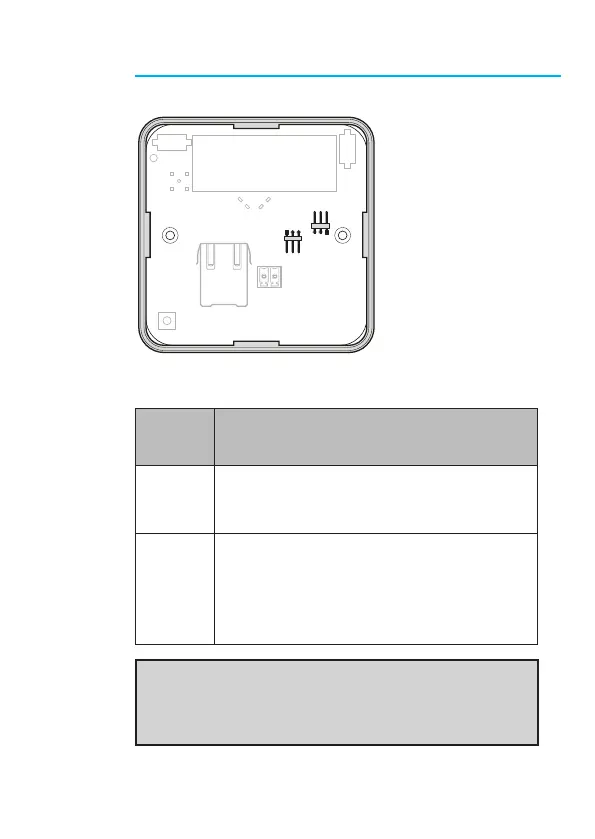

Jumpers DesCription
J400
ANTENNA
Select external antenna by connecting the two right pins.
Select internal antenna by connecting the two left pins.
J200
PAIR
Select pairing mode by connecting the two right pins.
Note: If the pairing jumper if removed within 10 seconds
from from boot up and the Hub LED is lit, all paired devices
will be unpaired.
AH40 - Jumpers
Note: To install an external antenna use a thin screwdriver and
gently bend the antenna cap loose. Be careful, there are sensitive
components behind the cap!
PAIR
J700
8-24V
- +
J800
EXT
J200
J400
INT
S100
