AH20/AH30 - Placement of Communication Hub

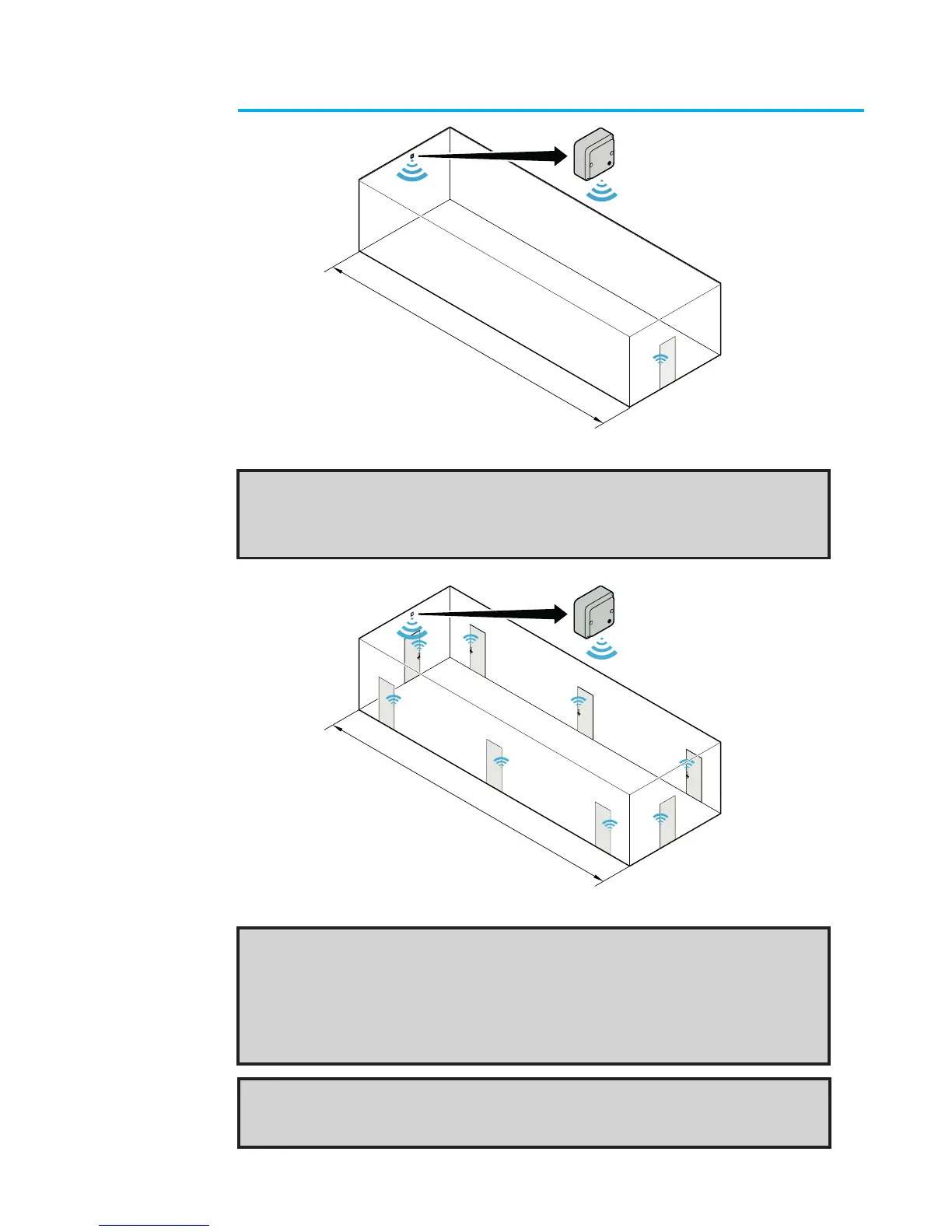

AH20/30 - Placement of the Hub, 1 door
Note: AH20/AH30 can be installed with an Aperio bottom cover or
Americas adaptor plate.
< 15 m / ~ 50 ft
AH30 (RS485 Hub) - Placement of the Hub, 1-8 doors
Note: Note: AH20/AH30 must be installed into a junction box ex
European 2-Gang, Aperio bottom cover or with Americas adaptor
plate to junction box. AH20/AH30 must be installed by qualified
and trained personal. Indoor installation only!
< 15 m / ~ 50 ft
Note: The Aperio Communication hubs are not rated to be
installed in the plenum space.
