132
ASSA Pin Kits, Tools & Accessories
TWIN V-10, TWIN EXCLUSIVE, TWIN PRO, TWIN MAXIMUM, CLIQ
Interchangeable Core Parts
Interchangeable Core Parts
Model No. Description Price
354023 Control Sleeve 32.50
353213 IC Inner Plug* 30.00
353968 V-10 IC Inner Plug* 22.50
807401 IC C-Ring .50
807402 IC Cover Slide 1.00
807403 IC Cam Adapter 22.00
807404 IC Wave Washer 1.00
807405 IC Rubber Stop 1.25
810695 IC Core (Figure-8) Housing* 49.50
807411 IC Mortise/Rim Housing* 55.00
809340 IC Cylinder Springs (1st Four Chambers) 20.00/c
809312 IC Plug Spacer Washer .75
Top Pins For Interchangeable Core Cylinders Only
Model No. Description Package Quantity Price
809328 Top Pin #2 100 21.00/c
809329 Top Pin #3 100 21.00/c
809330 Top Pin #4 100 21.00/c
809331 Top Pin #5 100 21.00/c
809332 Top Pin #6 100 21.00/c
809333 Top Pin #7 100 21.00/c
809334 Top Pin #8 100 21.00/c
809335 Top Pin #9 100 21.00/c
809336
Top Pin #10 100 21.00/c
Master Pins For Interchangeable Core Cylinders Only
Model No.
Description Package Quantity Price
809314
Master Pin #9
100 21.00/c
809315 Master Pin #10 100 21.00/c
809316
Master Pin #11
100
21.00/c
809317 Master Pin #12 100 21.00/c
809318 Master Pin #13 100 21.00/c
809319 Master Pin #14 100 21.00/c
809320 Master Pin #15 100 21.00/c
809321 Master Pin #16 100 21.00/c
809322 Master Pin #17 100 21.00/c
*Indicate product finish.

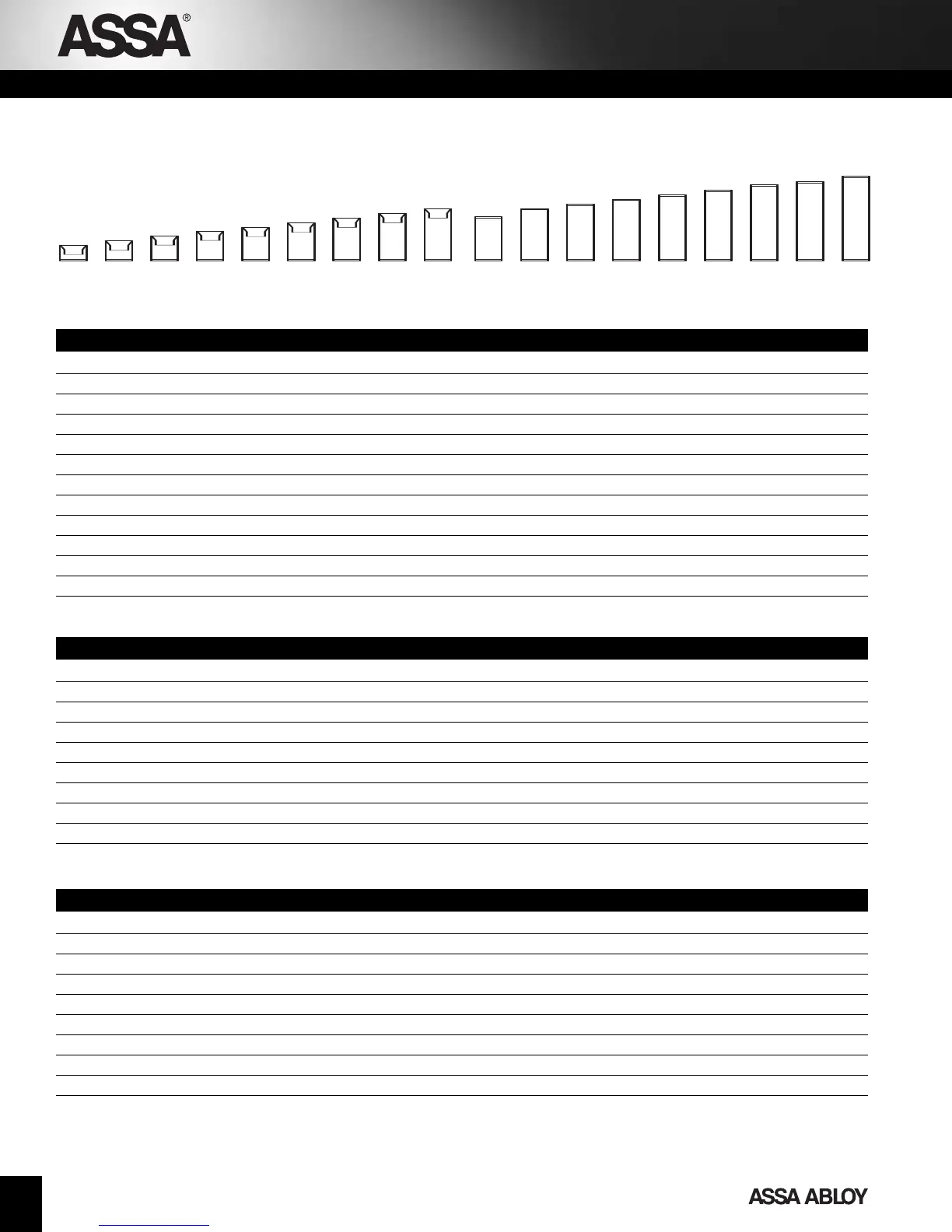

T2
.047
"
1.2mm
809328
T3
.071
"
1.8mm
809329
T4
.094"
2.4mm
809330
T5
.118
"
3.0mm
809331
T6
.142
"
3.6mm
809332
T7
.165"
4.2mm
809333
T8
.189"
4.8mm
809334
T9
.213"
5.4mm
809335
T10
.236"
6.0mm
809336
M9
.213"
5.4mm
809314
M10
.236
"
6.0mm
809315
M11
.260"
6.6mm
809316
M12
.283
"
7.2mm
809317
M13
.307"
7.8mm
809318
M14
.331"
8.4mm
809319
M15
.354
"
9.0mm
809320
M16
.378"
9.6mm
809321
T17
.402"
10.2mm
809322
