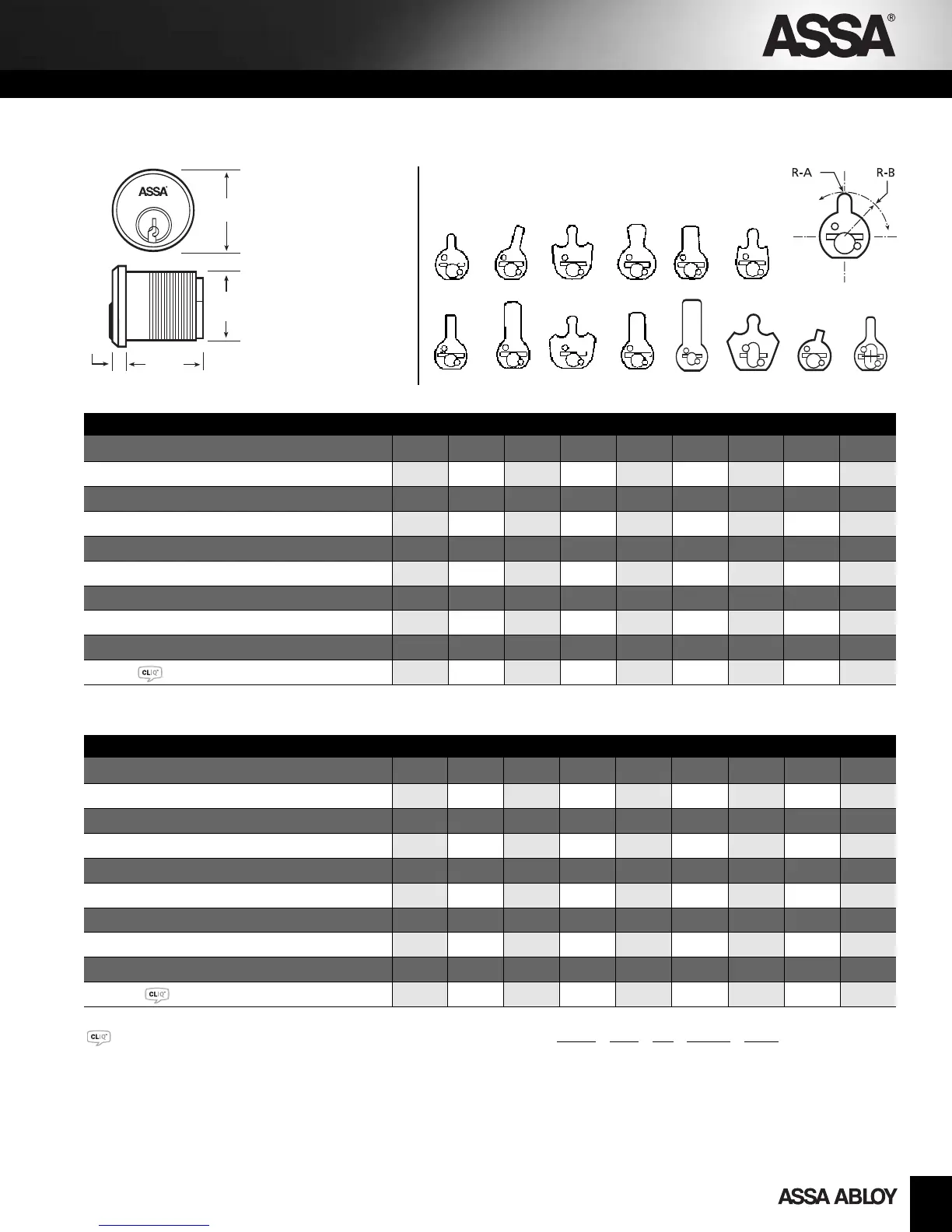

Available Cams
#11 #12 #13 #15
#1 #2 #3 #4 #5
#6
#7 #8 #9 #10
Cam Key:
R-A
– Head Radius • R-B – Overall Radius
Mortise Cylinders
Mortise Cylinder Key:
HD
– Head Diameter
HT – Head Thickness
BL – Body Length
(Includes Cam)
BD – Body Diameter
ASSA Mortise Cylinders
TWIN V-10, TWIN EXCLUSIVE, TWIN PRO, TWIN MAXIMUM, CLIQ
ASSA Segal Cylinder
Model/Cam# Description HD HT BL BD R-A R-B Comp Sub SNS
T
win V-10
V6573 Segal inside cyl. with Cam 128.50 120.50 113.50
Twin Exclusive
E6573 Segal inside cyl. with Cam 128.50 120.50 113.50
Twin 6000 Classic
6573 Segal inside cyl. with Cam 109.00 99.00 90.00
Twin Pro
6173 Segal inside cyl. with Cam 128.50 120.50 113.50
Twin Maximum
8873 Segal inside cyl. with Cam 128.50 120.50 113.50
1.439 0.148 1.377 1.367 N/A N/A
1.439 0.148 1.377 1.367 N/A N/A
1.439 0.148 1.377 1.367 N/A N/A
1.439 0.148 1.377 1.367 N/A N/A
1.439 0.148 1.377 1.367 N/A N/A
ASSA Otis Elevator Cylinder
Model/Cam# Description HD HT BL BD R-A R-B Comp Sub SNS
Twin V-10
V6551E Otis Elevator Cylinder 315.00 307.50 300.50
T
win Exclusive
E6551E Otis Elevator Cylinder 315.00 307.50 300.50
Twin 6000 Classic
6551E Otis Elevator Cylinder 264.50 254.50 246.50
Twin Pro
6151E Otis Elevator Cylinder 315.00 307.50 300.50
Twin Maximum
8851E Otis Elevator Cylinder 315.00 307.50 300.50
0.595
0.110 1.377 1.157 N/A N/A
0.595
0.110
1.377
1.157
N/A
N/A
0.595 0.110 1.377 1.157 N/A N/A
0.595 0.110 1.377 1.157 N/A N/A
0.595
0.110 1.377 1.157 N/A N/A
– Twin Maximum available with CLIQ™ Technology, add $500.00. Example: 8873-1 x CLIQ x 626 x Sidebar x Comp
