ASSA Mogul Cylinders
TWIN V-10, TWIN EXCLUSIVE, TWIN PRO, TWIN MAXIMUM, CLIQ

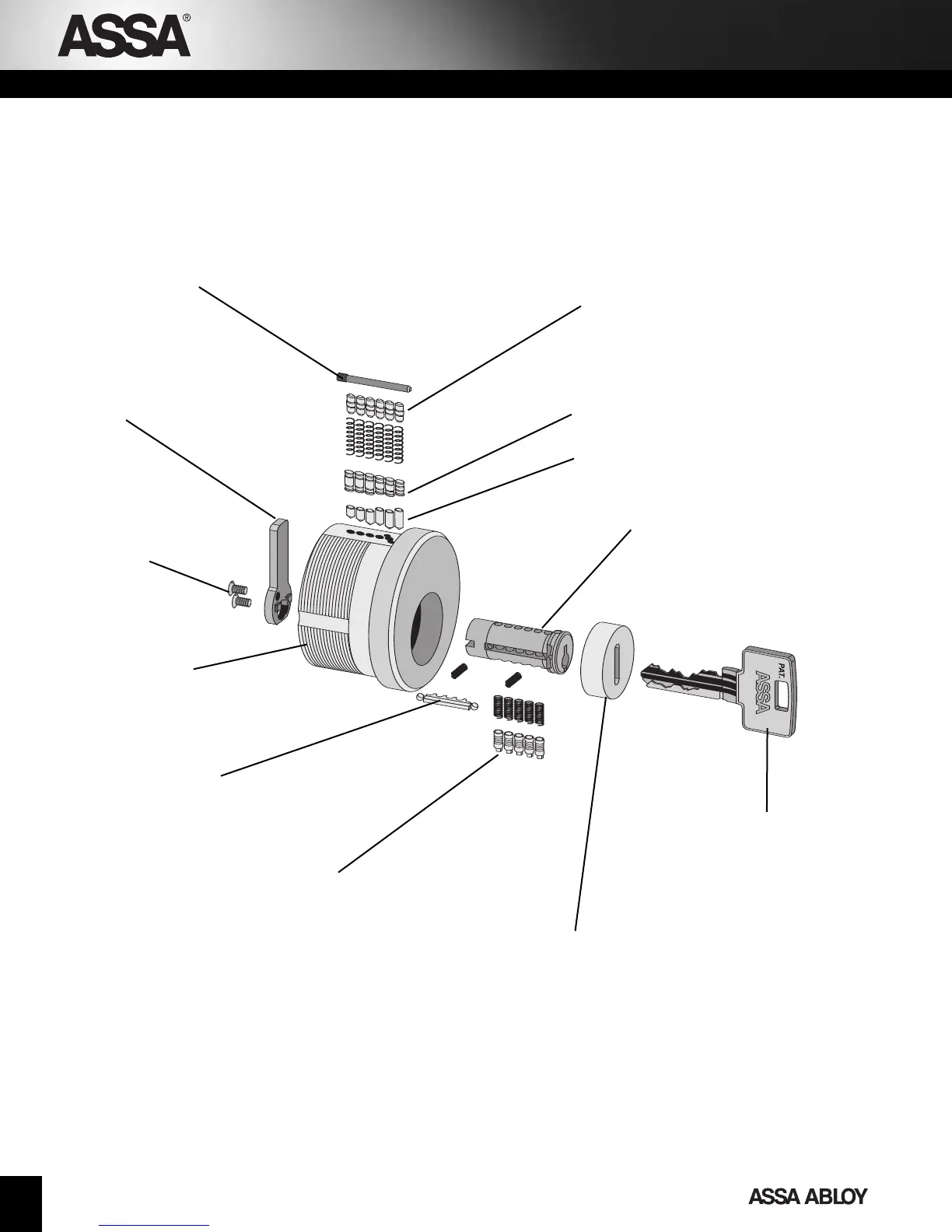

High Security Mogul Cylinders Exploded View
1-1/8" Mogul Cylinder
Pin Chamber Closing Rod
806974
Pin Chamber Closing Screws
806346
Cam
809337
Cam Screws
867090
Cylinder Housing
354051
Side Bar
267008
Side Pins
353852 T
win V
-10
867015 Twin Exclusive
Top Pins
Bottom Pins
Cylinder Plug
250861 Twin V-10
354050 Twin Exclusive/6000 Classic
Har
dened
Cover Plate
809339
Patented, Geographically
Exclusive Key
250694 Twin V-10
E867091 Twin Exclusive
