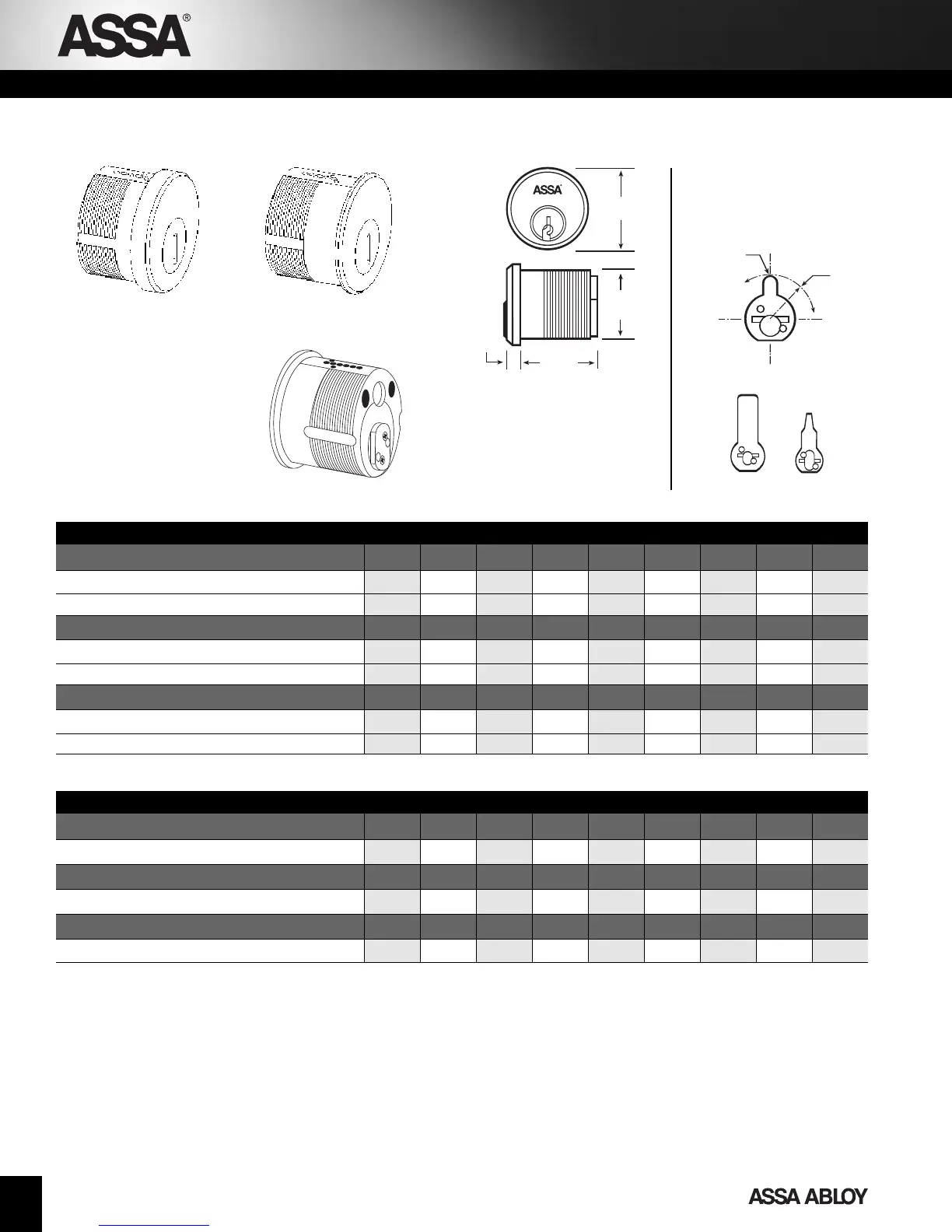

ASSA Mogul Cylinders
TWIN V-10, TWIN EXCLUSIVE, TWIN PRO, TWIN MAXIMUM, CLIQ
High Security Mogul Cylinders
BL
HT
BD
HD
R-A
R-B
ASSA 1-1/8" Mogul AirTeq/Norment Cylinder
Available Cams
Model/Cam# Description HD HT BL BD R-A R-B Comp Sub SNS
Twin V-10
† V8551-11 with Mogul Cam 144.00 136.50 129.50
† V8551-14 with Sargent Mogul Cam 144.00 136.50 129.50
Twin Exclusive
† E8551-11 with Mogul Cam 144.00 136.50 129.50
† E8551-14 with Sargent Mogul Cam 144.00 136.501129.50
Twin 6000 Classic
† 8551-11 with Mogul Cam 164.00 155.00 146.00
† 8551-14 with Sargent Mogul Cam 164.00 155.00 146.00
#11 #14
Mortise Cylinder Key:
HD
– Head Diameter
HT – Head Thickness
BL – Body Length
(Includes Cam)
BD – Body Diameter
Cam Key:
R-A
– Head Radius
R-B – Overall Radius
2.245 0.340 1.260 2.000 N/A 1.165
2.245 0.340 1.260 2.000 N/A 1.043
2.245 0.340 1.260 2.000 N/A 1.165
2.245 0.340 1.260 2.000 N/A 1.043
2.245 0.340 1.260 2.000 N/A 1.165
2.245 0.340 1.260 2.000 N/A 1.043
ASSA 1-1/2" Southern Steel Mogul Cylinder
Model/Cam# Description HD HT BL BD R-A R-B Comp Sub SNS
Twin V-10
† V8551SS shipped without Cams 144.00 136.50 129.50
T
win Exclusive
† E8551SS shipped without Cams 144.00 136.50 129.50
Twin 6000 Classic
† 8551SS shipped without Cams 164.00 155.00 146.00
2.245
0.120 1.590 2.000 N/A N/A
2.245
0.120
1.590
2.000
N/A
N/A
2.245 0.120 1.590 2.000 N/A N/A
1-1/8" Mogul
AirTeq/Norment
1-1/2" Mogul
SS, FA, NA, BR, AD
No Cams offered for 1-1/2" Mogul cylinders
† A
vailable in special function cylinders, see page 4, add $29.00.
