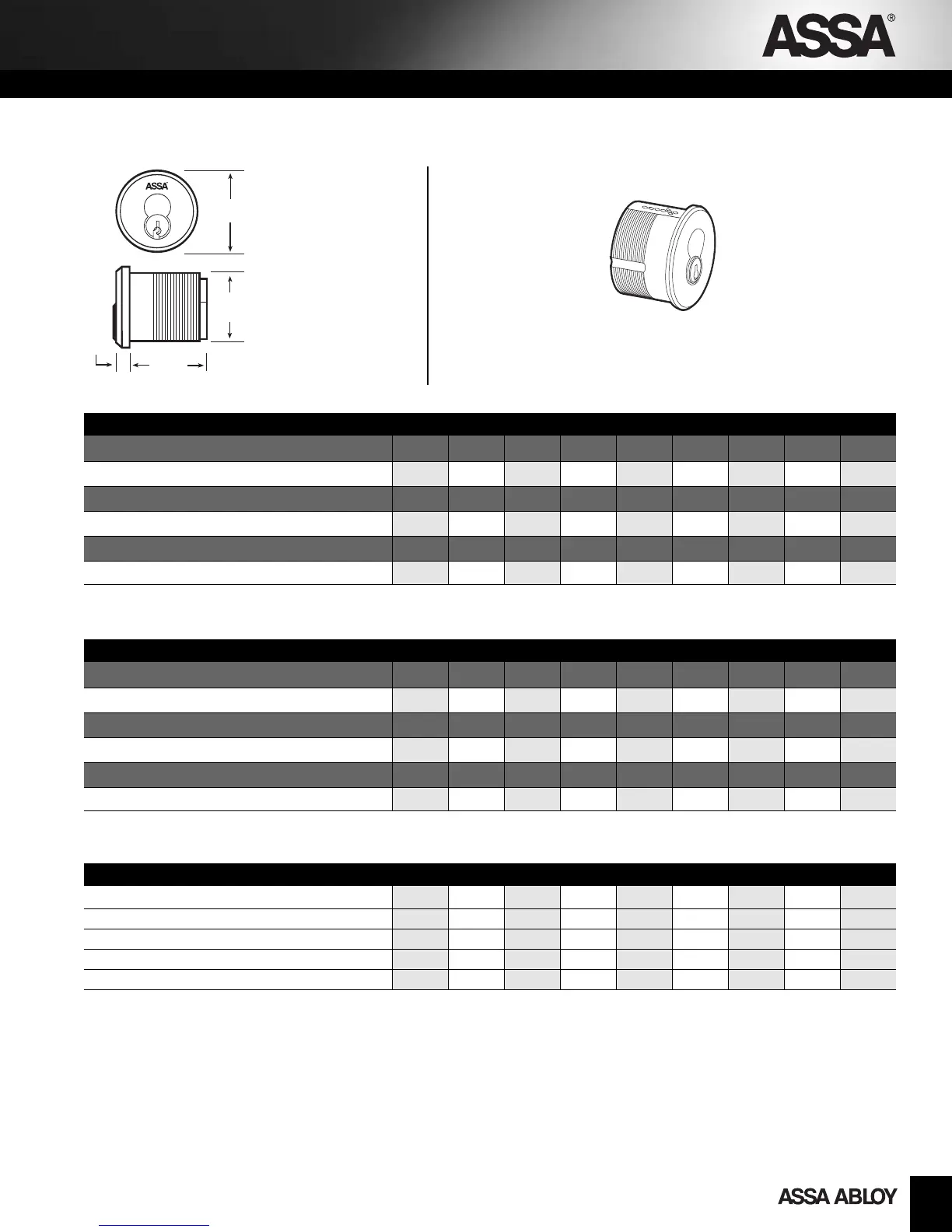

ASSA Mogul Cylinders
TWIN V-10, TWIN EXCLUSIVE, TWIN PRO, TWIN MAXIMUM, CLIQ
1-1/8" IC Cylinder
1-1/2" IC Cylinder
High Security IC Mogul Cylinders
ASSA 1-1/2" R.R. Brink Interchangeable Core Mogul Cylinder
Model/Cam# Description HD HT BL BD R-A R-B Comp Sub SNS
T
win V-10
V8551BRIC 1-1/2" Mogul IC Cylinder 204.50 199.00 192.00
Twin Exclusive
E8551BRIC 1-1/2" Mogul IC Cylinder 204.50 199.00 192.00
Twin 6000 Classic
8551BRIC 1-1/2" Mogul IC Cylinder 220.50 211.50 202.50
2.245 0.120 1.590 2.000 N/A N/A
2.245 0.120 1.590 2.000 N/A N/A
2.245 0.120 1.590 2.000 N/A N/A
ASSA 1-1/2" ADTECH Interchangeable Core Mogul Cylinder
Model/Cam# Description HD HT BL BD R-A R-B Comp Sub SNS
Twin V-10
V8551ADIC 1-1/2" Mogul IC Cylinder 204.50 199.00 192.00
Twin Exclusive
E8551ADIC 1-1/2" Mogul IC Cylinder
204.50 199.00 192.00
Twin 6000 Classic
8551ADIC 1-1/2" Mogul IC Cylinder 220.50 211.50 202.50
2.245 0.120 1.590 2.000 N/A N/A
2.245 0.120 1.590 2.000 N/A N/A
2.245
0.120
1.590 2.000 N/A N/A
ASSA 1-1/2" Temporary Interchangeable Construction Core Mogul Cylinder
Model # Description HD HT BL BD R-A R-B Comp Sub SNS
8551SSICR 1-1/2" Mogul IC Cylinder 206.50 — —
8551F
AICR 1-1/2" Mogul IC Cylinder 206.50 — —
8551NAICR 1-1/2" Mogul IC Cylinder 206.50 — —
8551BRICR
1-1/2" Mogul IC Cylinder 206.50 — —
8551ADICR 1-1/2" Mogul IC Cylinder 206.50 — —
2.245 0.120 1.590 2.000 N/A N/A
2.245
0.120
1.590
2.000 N/A N/A
2.245
0.120
1.590
2.000
N/A N/A
2.245 0.120 1.590 2.000 N/A N/A
2.245
0.120
1.590
2.000
N/A
N/A
BL
HT
BD
HD
Mortise Cylinder Key:
HD
– Head Diameter
HT – Head Thickness
BL – Body Length
(Includes Cam)
BD – Body Diameter
For temporar
y cores refer to Red Core on page 4.
