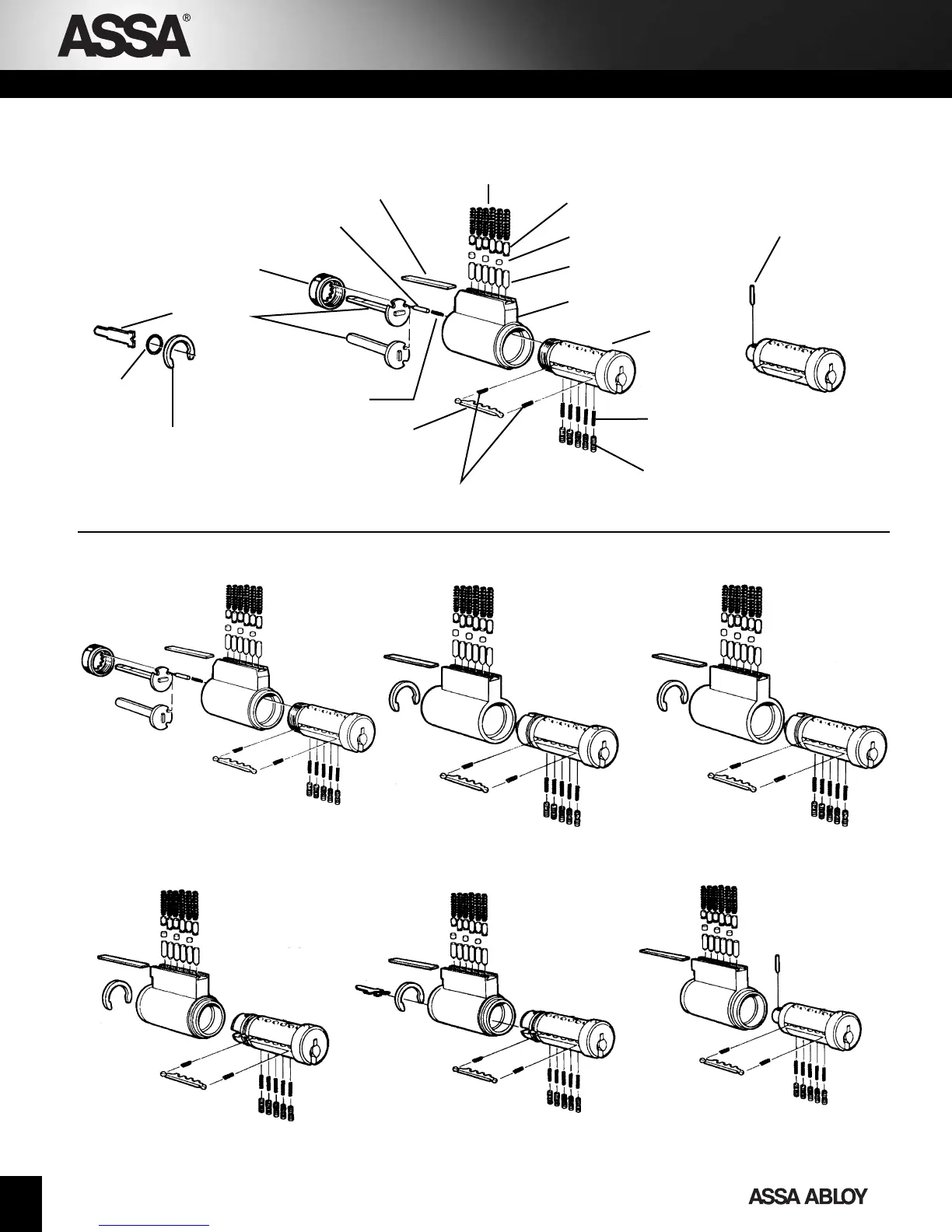

Key-in-Knob/Levers Cylinders Exploded View
65611 – Schlage 65631 – Yale 65632 – Yale
65651 – Corbin/Russwin 65652 – Corbin/Russwin 65653 – Corbin/Russwin
Sidebar
Side Pin
Side Pin Springs
Roll Pin Retainer
Shell
Bottom Pins
Build Up Pins
Top Pins
Springs
Plug
Sidebar Springs
Plug Cap
Tailpiece
Tail Ring
Plug Cap Pin
Closing Strip
Plug Cap Spring
C-Clip Plug Retainer
An ASSA ABLO
Y Group compan
y
66
ASSA Key-in-Knob/Lever Cylinders
TWIN V-10, TWIN EXCLUSIVE, TWIN PRO, TWIN MAXIMUM, CLIQ
