Assa Abloy high security lock User Manual

Key-in-Knob/Lever Cylinders
PD
CL
BLFL
EL
CH
CD

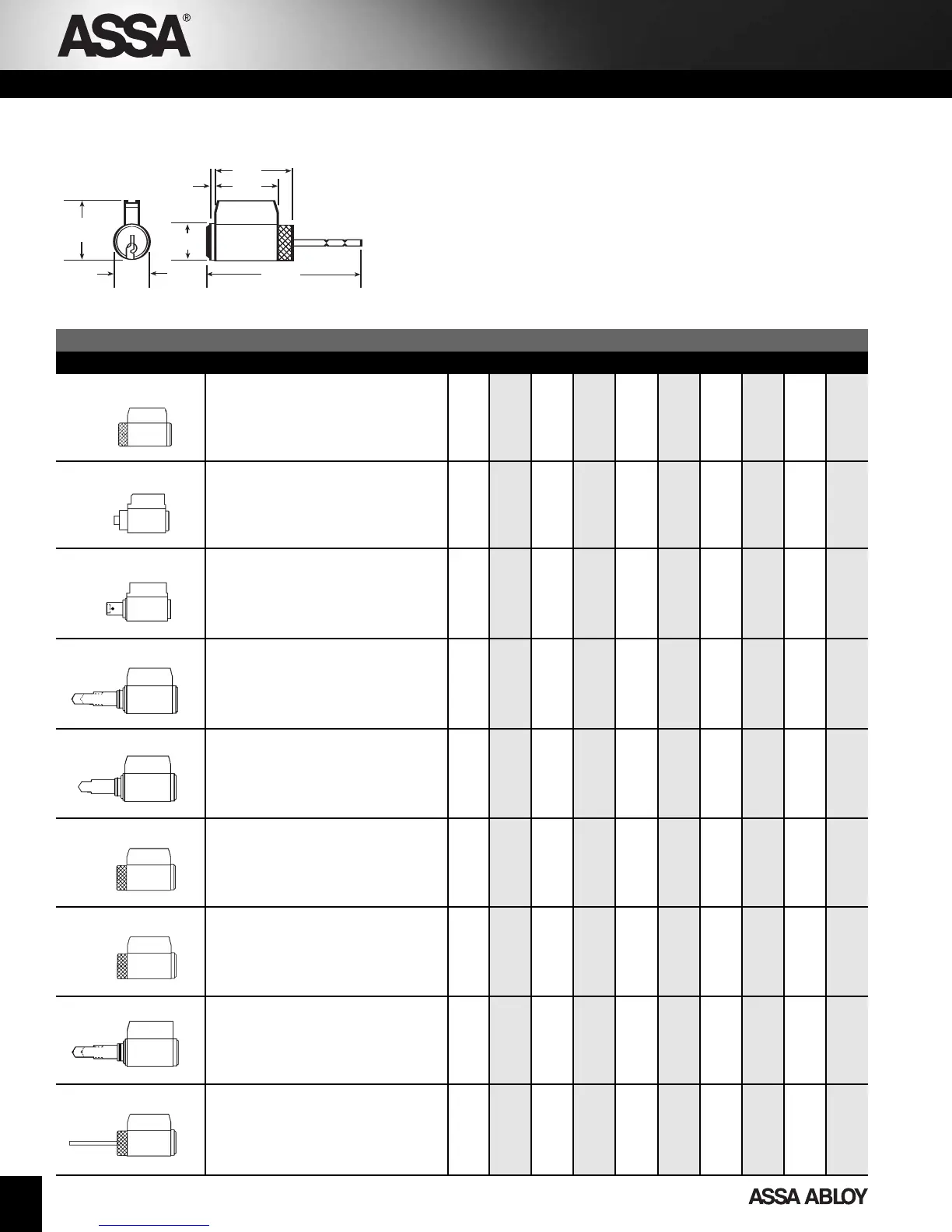

Key-in-Knob/Lever Cylinders
Model #/Make Description BL CD CH CL EL FL PD Comp Sub SNS
V65661 - Falcon
S & X Series, Use original manufacturer
cap and tailpiece
1.022 0.634 1.020 N/A 1.325 0.071 0.560 83.00 75.50 68.50
Twin V-10
V65671 - Sargent
Integra
1.025 0.677 1.071 N/A 1.447 0.000 0.560 83.00 75.50 68.50
V65672 - Sargent
Heavy-duty 7, 8, 9 lines KIK
1.010 0.677 1.071 N/A 1.663 0.020 0.560 75.50 68.00 61.00
V65673 - Sargent
Standard duty 3 tailpieces included
6 Line KIK, 7 Line KIL, 10 Line KIL
0.990 0.634 1.020 2.000 1.235 0.000 0.560 75.50 68.00 61.00
2.040
2.315
V65673-TZ - Sargent
T-Zone 11 Line KIL
0.990 0.634 1.020 1.720 1.235 0.000 0.560 75.50 68.00 61.00
V65681 - W
eiser
4000 & 9000 single cylinder deadbolts,
entrance style handle locks
1.022
0.634
1.020 3.375 1.335 0.000 0.560 83.00 75.50 68.50
V65682 - Weiser
4000 & 9000 double cylinder dead
-
bolts, entrance style handle locks
1.022 0.634 1.020 1.910 1.335 0.000 0.560 83.00 75.50 68.50
V65691 - Arrow
Standard and heavy-duty, 3 tailpiece
included for Arrow C, H, L, M, Q, S & W
Series Key-in-Knob & Key-in-Lever styles
1.022 0.634 1.020 2.000 1.268 0.070 0.560 75.50 68.00 61.00
2.040
2.315
V65692 - Arrow
For Ar
r
ow deadbolts only
, includes
tailpieces for double & single cylinders
1.022 0.634 1.020 2.085 1.352 0.000 0.560 75.50 68.00 61.00
2.340
3.465
Key-in-Knob/Lever Key:
BL
– Bible Length
CD – Cylinder Diameter
CH – Cylinder Height
CL – Cylinder Length
EL – Effective Length
FL – Front Length
PD – Plug Face Diameter
An ASSA ABLO
Y Group compan
y
70
ASSA Key-in-Knob/Lever Cylinders
TWIN V-10, TWIN EXCLUSIVE, TWIN PRO, TWIN MAXIMUM, CLIQ
