7
D6021/D6031 Double Unit Series (Push Side) Power Operator

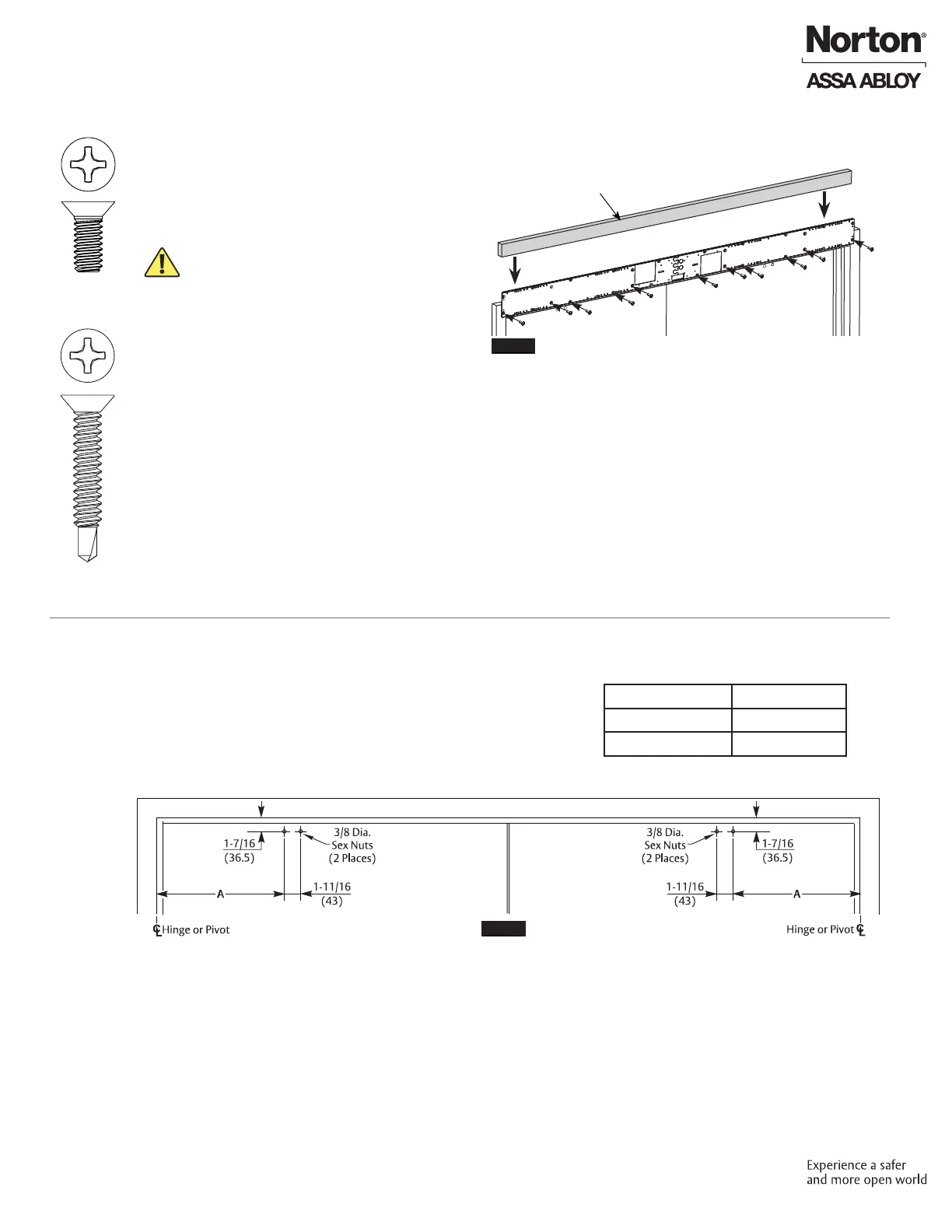

C. Secure Backplates.
1. Secure backplates to frame using eleven (11):
1/4-20 x 5/8" machine screws or
1/4 x 1-1/2" self-drilling screws from screw
packs in Boxes 1 and 2. (Figure 7)
NOTE: It is important to properly secure
top edge of backplate. Use of blocking
(supplied by others) or shims (provided) to
ll gap between backplate and wall above
header is HIGHLY recommended. Material
must comply with local codes. Failure to
properly secure top of backplate could result
in operator being allowed to ‘rock’ during
operation. This could result in damage to
operator and diminish operator function.
(Figure 7)
OR
Figure 7
D. Prepare doors for Adjusting Tubes and Shoes.
1. Locate and prepare adjusting tube and shoe holes in doors.
(Figure 8)
NOTE: Template provided on page 28.
2. Drill 3/8" (9.5mm) through (4 places) for sex bolts.
A Dimension Operator Model
13-1/8" (333mm) 6021
10-3/8" (264mm) 6031
Figure 8
Prepare Frame and Door
Blocking
To Next Page
