Appendix C: To install ADB
This appendix contains drawings needed for an installation or upgrade of
ANSI (DA) ADB, striker plate
ANSI (DA) ADB, mortise
ANSI (DB) ADB, striker plate
ANSI (DB) ADB, mortise
EURO ADB lock case
ANSI (DA) ADB, striker plate
When installing or upgrade to ANSI DA ADB lock case, the external striker plate must be
installed as shown in Figure C1; dimensions in mm (inches).

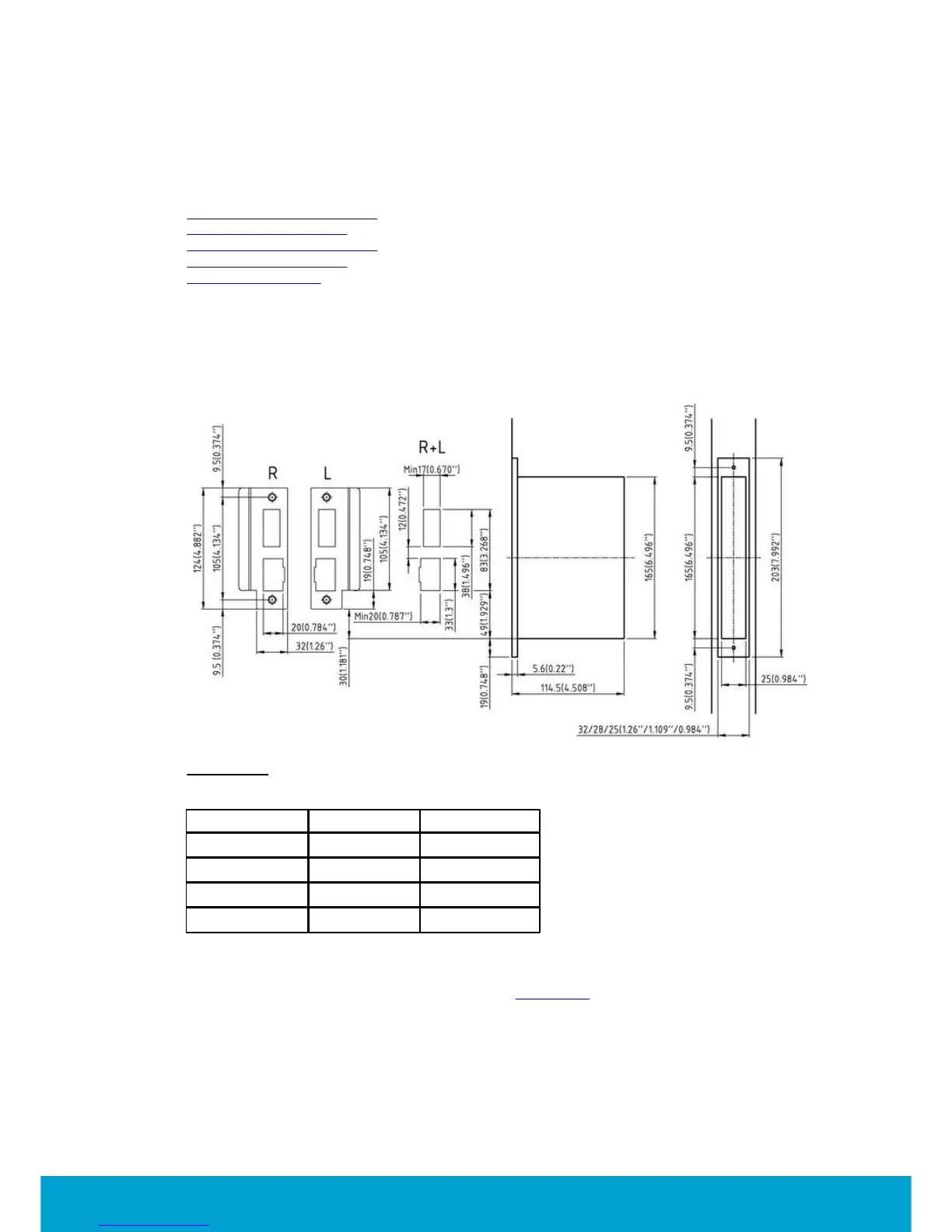

Figure C1: Striker plate and cut-out
Important: When installing an ADB lock case, the ADB striker plate with
curved lip must always be used (hands of door L and R).
Table C1: Striker plates for different door handings
All frames (wooden and steel frames)
1. Install the lock in the door according to the Installation section.
2. Place the ADB striker plate in the frame as shown in Figure C1, 49 mm
(1 30/32") above the bottom of the lock front (30mm + 19mm, i.e. 3/4"+1 3/16").
To Next Page
