6
P/N YRM276/YRM476-INST-FUL Rev C
3. Install mounting bracket
with though bolts. Ensure
bracket is straight and
tighten bolts.
x2
Through Bolts
Inside of Door
Inside
of Door

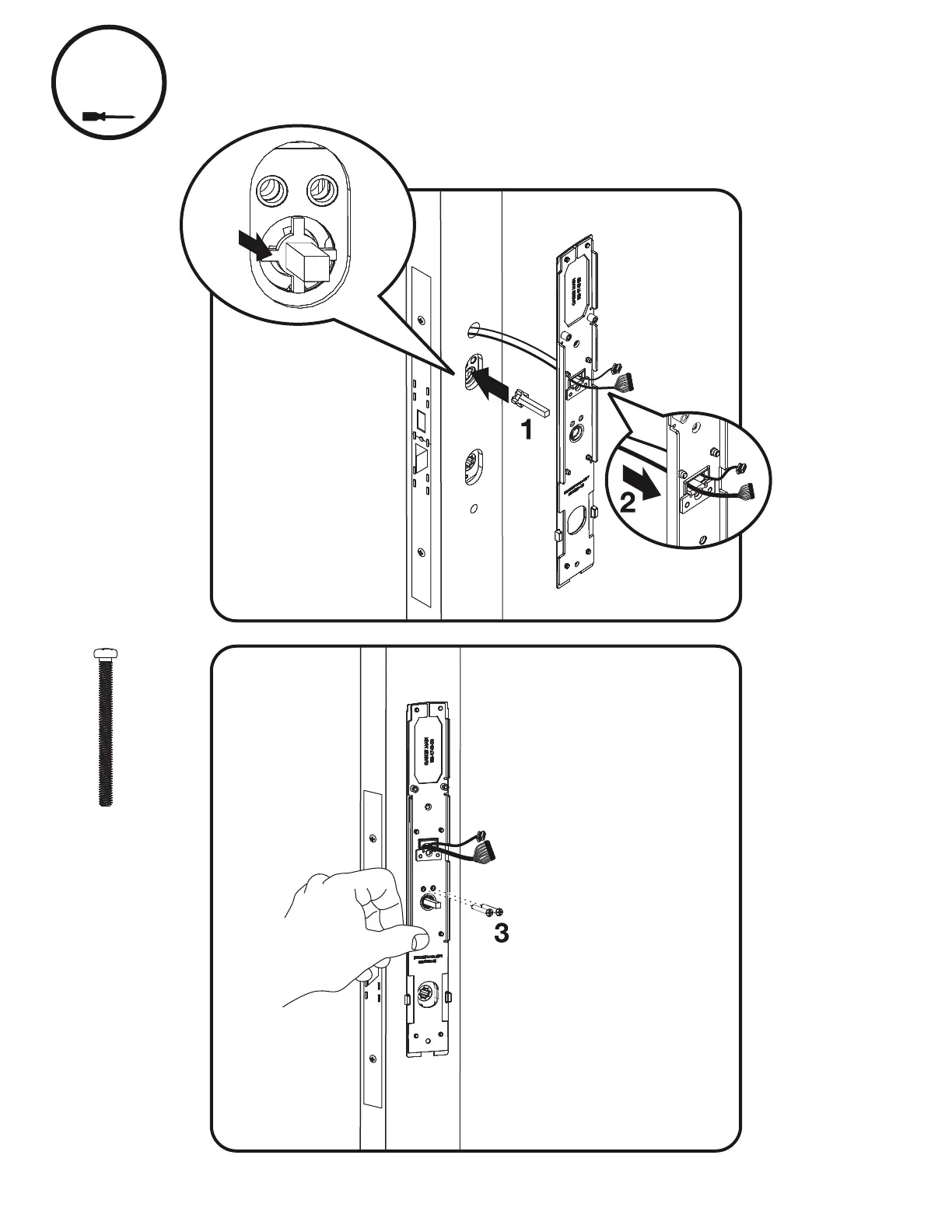

Installing Inside Mounting Plate
7
1. Place spindle into lock.
2. Pull cables through
mounting bracket.
Spindle
