P/N YRM276/YRM476-INST-FUL Rev C
10

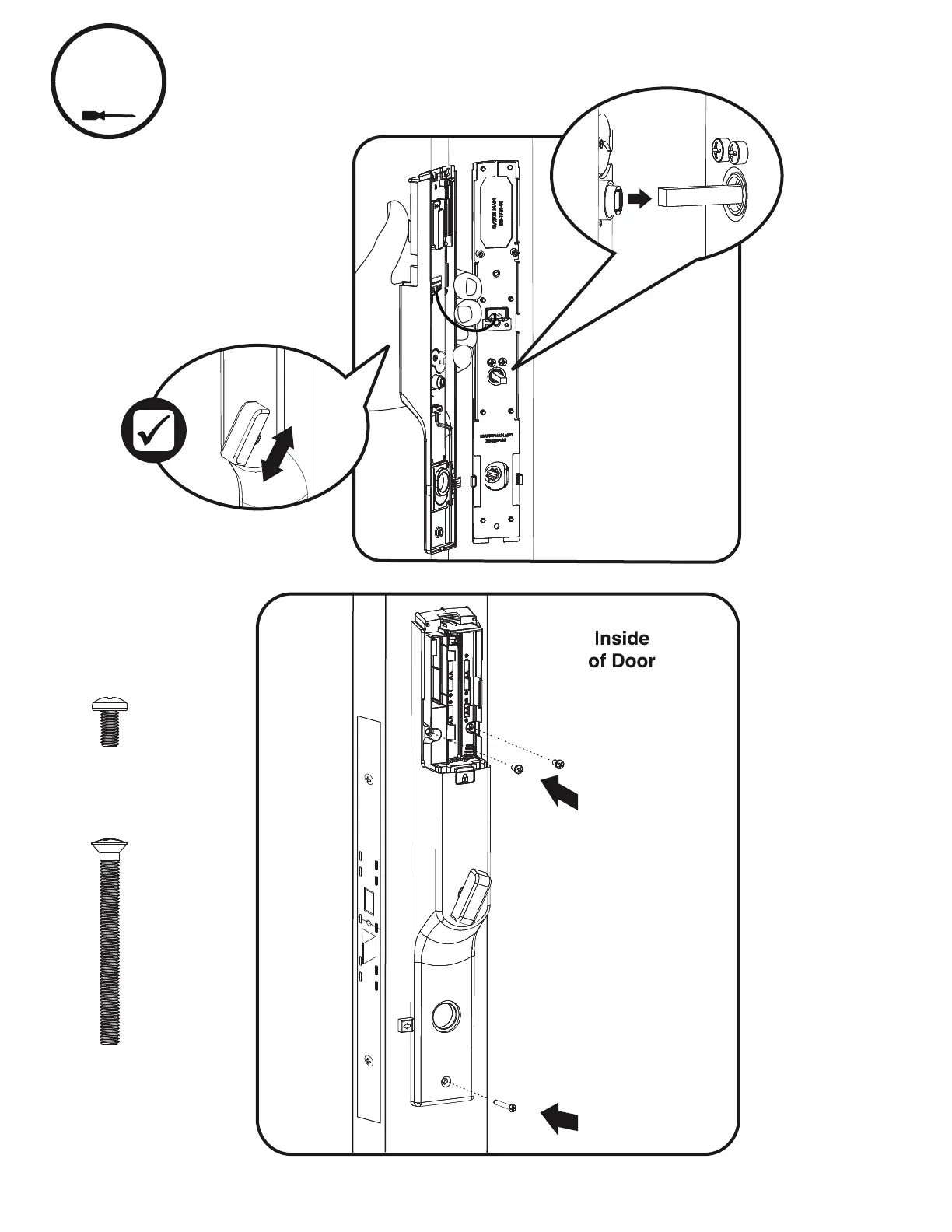

Installing Inside Lock
Top of thumbturn must
face away from latch
x1
Decorative Screw
x2
#8x8 PHM
Store excess
cable in interior
lock cavity.
Tighten
Tighten
